Red Tail Photoelectric Sensor Switch(DR12-15N)

US$ 11.06 - 14.24 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

F&C

Model Number:

DR12-15N

F&C Sensing Technology (Hunan) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name F&C

Model Number DR12-15N

Usage Position Sensor

Theory Inductance Sensor

Output Switching Transducer

DR12 Series Red Tail photoelectric sensor switch is suitable for automatic door , Metro channel detection etc.

Feature:

1. 12mm diameter , convenient to install.

2. Waterproof grade can reach IP67

3.Through Beam and diffuse refective photoelectric for option.

4.Fixed detection distance, Strong Anti-interference.

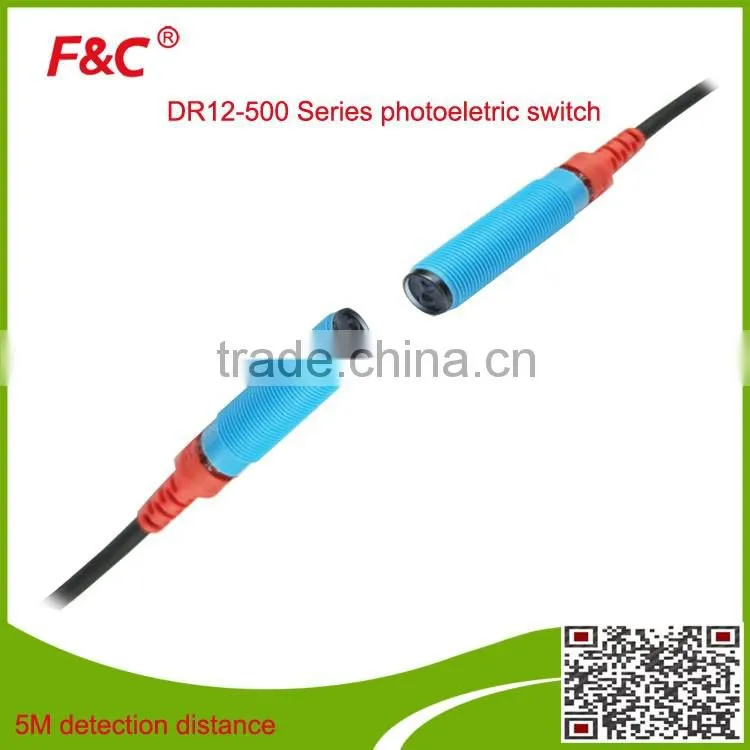

DR12-500 Series (Through -beam )detection distance: 5M Min detection object size:diameter 5 opaque objects

DR12-15N Series(Diffuse )detection distance :15cm

DR12-05 Series(Diffuse) detection distance:5cm

Specification for DR12-15N round photoelectric switch for automating door

Model	Detection Method	Detection Distance	Min Detection Object Size	Connection Method
DR12-15N	NPN NO	15cm	dia 5 opaque objects	dia 4*2M/3 wires
Dr12-15N2	NPN NC	15cm	dia 5 opaque objects	dia 4*2M/3 wires
DR12-15P	PNP NO	15cm	dia 5 opaque objects	dia 4*2M/3 wires
DR12-15P2	PNP NC	15cm	dia 5 opaque objects	dia 4*2M/3 wires
DR12-15N/15D	NPN NO	15cm	dia 5 opaque objects	150mm Lead line with M8 connector
DR12-15N2/15D	NPN NC	15cm	dia 5 opaque objects	150mm Lead line with M8 connector
DR12-15P/15D	PNP NO	15cm	dia 5 opaque objects	150mm Lead line with M8 connector
DR12-15P2/15D	PNP NC	15cm	dia 5 opaque objects	150mm Lead line with M8 connector
Light Source	630nm Red LED
Operating Voltage	10-30 VDC
Current Consumption	15mA
Load Current	100mA Max at 24VDC
Response Time	0.3ms Max
Insulation resistance	20M Ohm min at 500VDC
Dielectric Strength	1000VAC 60HZ for 60 seconds
Material	ABS
Operating Temperature	-10~45℃(No icing)
Ambient Humidity	35%-85%
Certificate	CE
Protection Degree	IP67
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Weight	about 20g
