BSG 300mm sensing distance PNP photoelectric switch sensor
Feature
1.Smart diffuse model and no effect by detection object angle.
2.High power visible red led light and light spot has diameter of 10mm
3.Bright indicator and A.P.R Circuit
4.NO and NC output can be adjustable.
5.Exclusive IC modulated circuit and strong anti-interference ability
BGS photoelectric sensor is suitable for shiny detection object.
Specification
| BSG 300mm sensing distance PNP photoelectric switch sensor | |
| Model | BGS-30P |
| Standard Detection Object Size | 1.5mm |
| Output Method | PNP NO NC |
| Detection Type | Diffuse |
| Detection Distance | 300mm |
| Light Source | 630nm Red modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 300mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | Glass fiber reinforced resin |
| Ambient Light | 500Lux incandescent light, 20000lux sunshine |
| Wire Method | Diam 4mm*2M/-3wires or -2 wires |
** BGS-10/15D 150mm pre-wired line with M8 connector BGS photoelectric sensor**

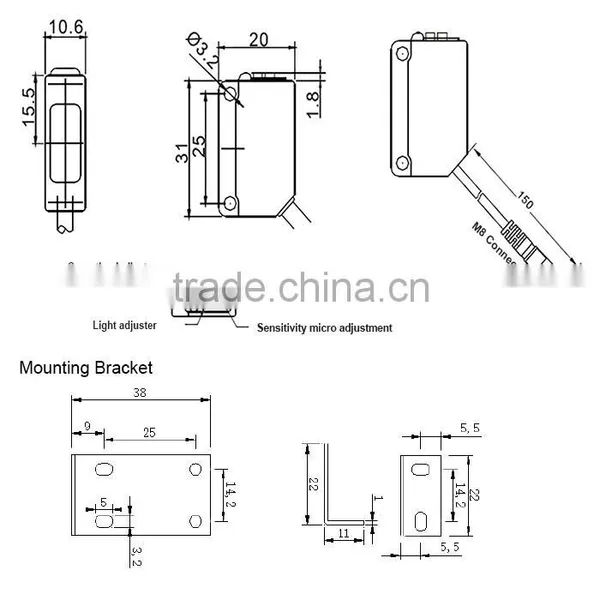

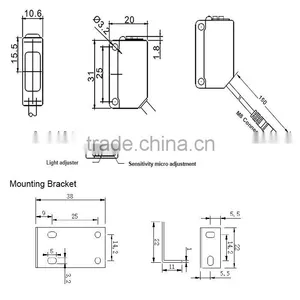

Dimension Drawing

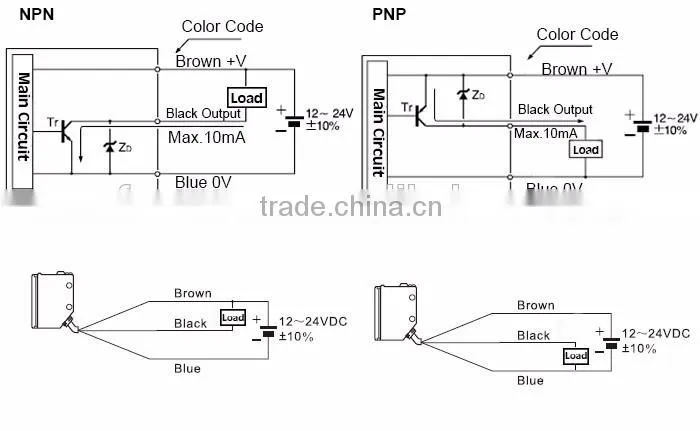

Wiring Drawing
