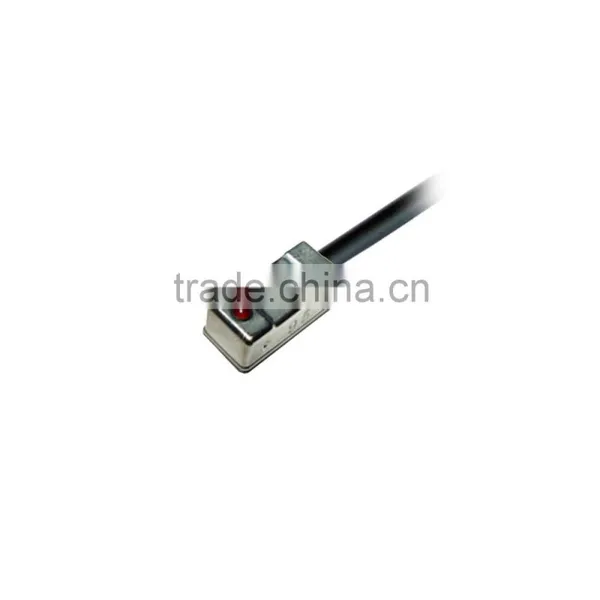

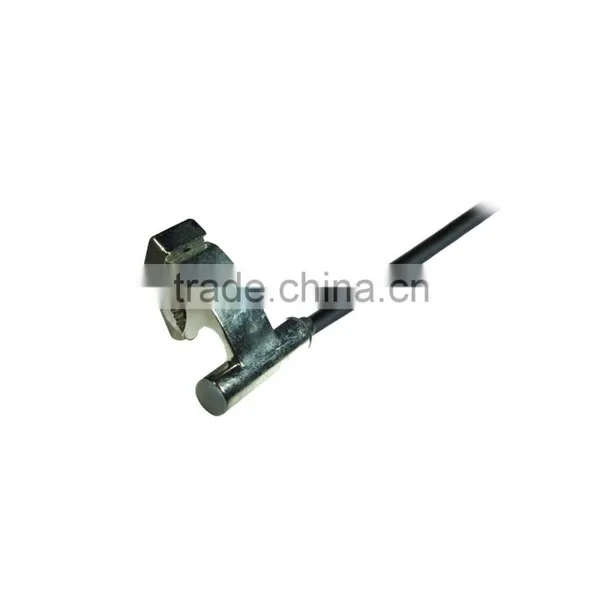

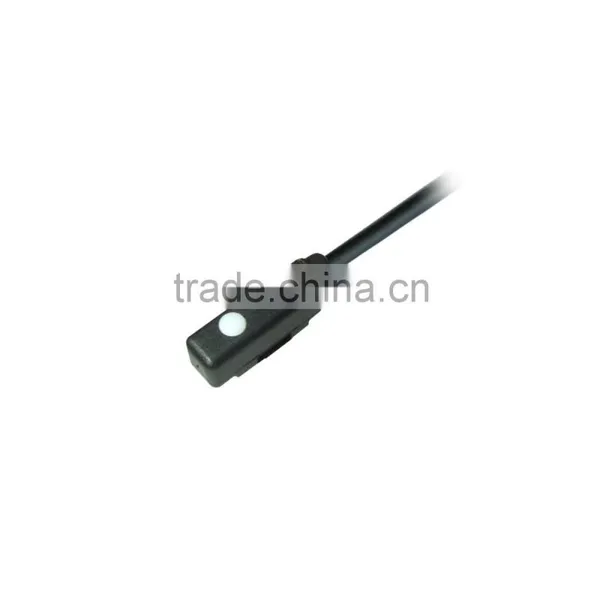

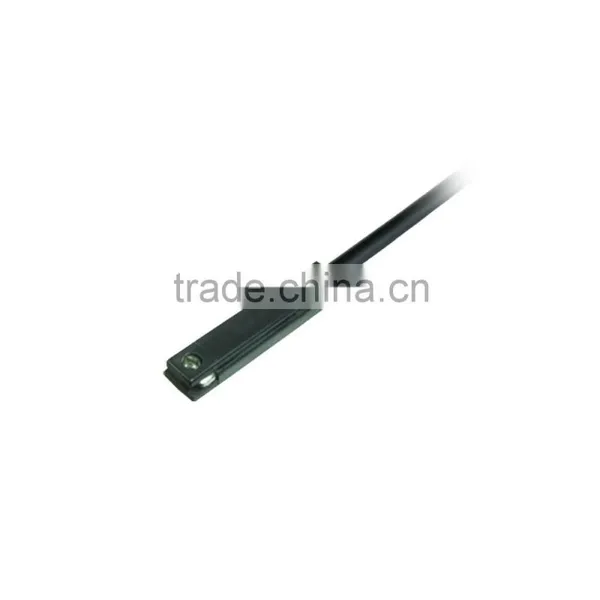

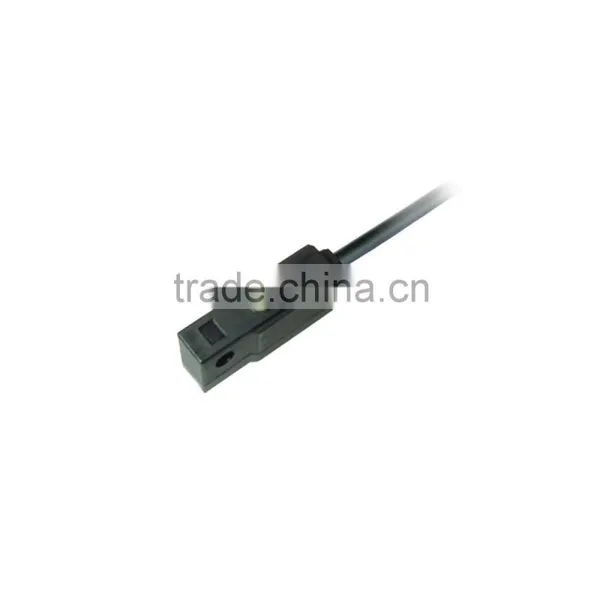

FD Series Magnetic Sensors Switches, Magnetic Reed Switch, Used For Cylinder Detection, Cylinder Sensors, Can Be Customized
US$ 3 - 6
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FD series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FSC Series Small Cylinder Proximiy Sensors Switches,US$ 10 - 20MOQ: 50 Pieces -
FD Series AL Metal Housing, Magnetic Sensors, Magnetic Reed Switch / Firm Structure, Long LIfe, Prevent Damage.US$ 3 - 6MOQ: 20 Pieces
-
FKC2210 Series, 10mm Sensing Range Capacitive Sensor, NPN/PNP Offered, Can Be Customized!~US$ 10 - 30MOQ: 20 Pieces
-
FKC3430 Series Diameter 34mm Capacitive Proximity Sensor, Sensing Range 30mm, Long Range Capacitive Sensor.US$ 20 - 30MOQ: 20 Pieces
-
FKC3020 Series M30 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, Max 20mm Sensing Range.US$ 20 - 30MOQ: 20 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FD series
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
FD series Magnetic Sensor, Reed Switch, Cylnder Sensor
| Models |
FD-02R |
FD-14R FD-15R FD-16R FD-17R FD-20R FD-21R FD-31R FD-32R |
FD-39R FD-40R FD-50R FD-70R FD-72R FD-73R |
FD-02N FD-03N FD-06N FD-07N FD-09N FD-11N FD-12N FD-13N |
FD-14N FD-15N FD-16N FD-17N FD-20N FD-21N FD-31N FD-32N |
FD-39N FD-40N FD-50N FD-70N FD-72N FD-73N |
FD-02P FD-03P FD-06P FD-07P FD-09P FD-11P FD-12P FD-13P |
FD-14P FD-15P FD-16P FD-17P FD-20P FD-21P FD-31P FD-32P |
FD-39P FD-40P FD-50P FD-70P FD-72P FD-73P |
| Sensing Method1 |
Normally Open | without contacting, Normally Open | without contacting, Normally Open | ||||||
| Sensing Method2 |
with contacting | without contacting NPN | without contacting PNP | ||||||
| Working Voltage |
5~120DC/AC | 5~30VDC | 5~30VDC | ||||||
| Max Current |
100mA Max. | 200mA Max. | 200mA Max. | ||||||
| Max Contact Capacity | 3.5W Max. | 6W Max. | 6W Max. | ||||||
| Internal Current Consumption | No | 14mA Max.@24V | 11mA Max.@24V | ||||||
| Residual Pressure Drop | 2.5V Max.at 10mA DC | 2.5V Max.at 10mA DC | 2.5V Max.at 10mA DC | ||||||
| Leakage Current | No | 0.01mA Max. | 0.01mA Max. | ||||||
| Indicator | Red LED | Red LED | Green LED | ||||||
| Cable | φ2.8,2C/ Gray anti-oil PVC | φ2.8,2C/Gray anti-oil PVC | φ2.8,2C/ Gray anti-oil PVC | ||||||
| Max Switching Frequency | 1000Hz | 1000Hz | 1000Hz | ||||||
| Working Temperature | -10°C~70°C | -10°C~70°C | -10°C~70°C | ||||||
| Impact Resistance | 30G | 50G | 50G | ||||||
| Shock Resistance | 9G | 9G | 9G | ||||||
| IP level | IP67 | IP67 | IP67 | ||||||
| Circuit Protection |
No | Yes | Yes | ||||||
Diagram
