Home > Electrical & Electronics > Sensor > Pressure Sensor > F3Q Series 40*40mm, 30mm Long Sensing Range Top Sensing Inductive Proximity Sensor, With Red Protected Tube.

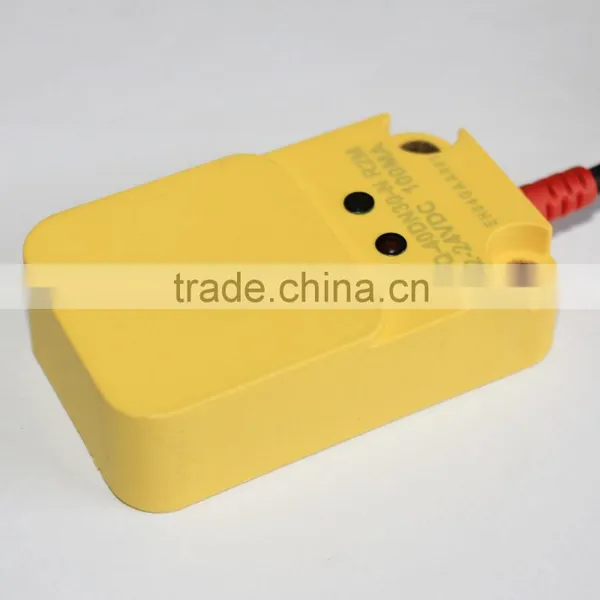

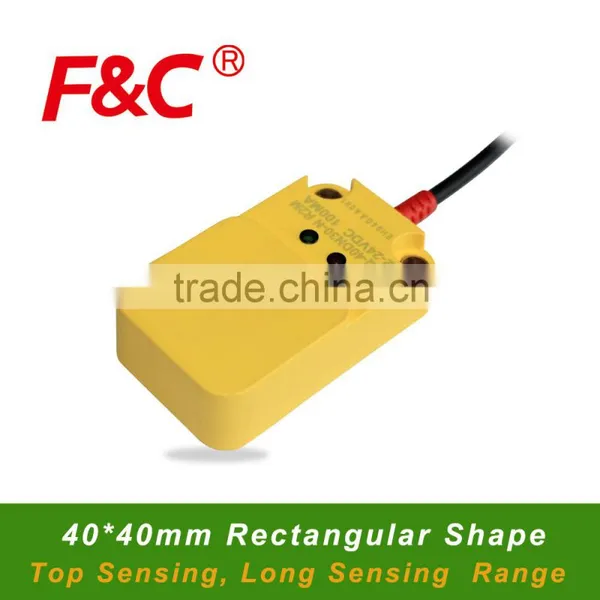

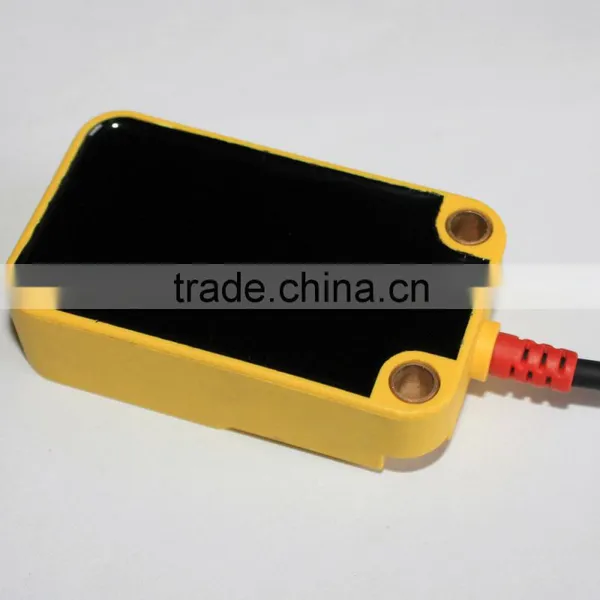

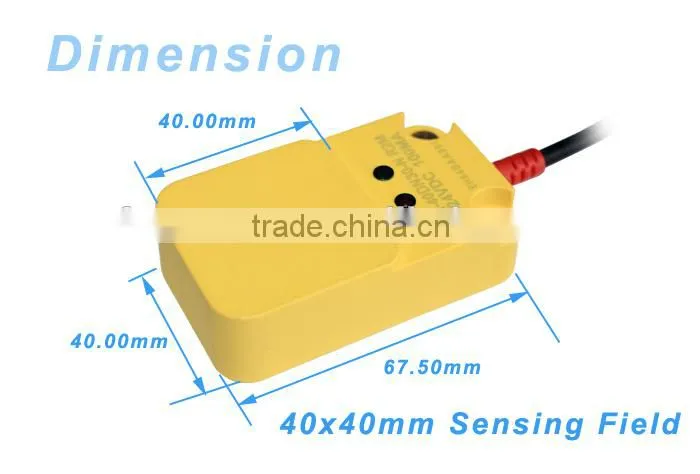

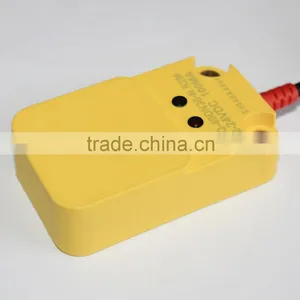

F3Q Series 40*40mm, 30mm Long Sensing Range Top Sensing Inductive Proximity Sensor, With Red Protected Tube.
US$ 15 - 30
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3Q-40DN30 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FSNA30 Series Ring Shape Proximity Switches, Diameter 30mm Hole, Large Falling Objects Detection.US$ 50 - 70MOQ: 20 Pieces -
FSCU1202 Series M12 3-Pins Inductive Proximity Sensors, Connector Type, Full Metal Housing Include Sensing Field.US$ 8 - 15MOQ: 20 Pieces
-
FSCU1805 Series M18 3-Pins Inductive Proximity Sensors, Connector Type, Sensing Part Is Made of Metal, Full Metal Housing.US$ 5 - 10MOQ: 20 Pieces
-
8*8mm Front Sensing Field, 2mm Sensing Range, IP67, Dual LED, F3N-08TN02 Series Inductive Sensor.US$ 3 - 10MOQ: 20 Pieces
-
8*8mm Sensing Field, 2mm Sensing Range, IP67, Dual LED, F3N-08DN02 Series Inductive Proximity Sensor.US$ 3 - 10MOQ: 20 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3Q-40DN30 series
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
Hysteresis |
1O%≤sensing distance |
Operating voltage |
DC:10~30VDC±10% |
Current consumption |
DC:≤8mA No—Load |
Load current |
DC:30V 200mA Max |
Leakage current |
DC:≤1.1mA no-Load |
Protection circuit |
Reversed supply ciruit protection,short citcuit protection output |
Residual votage |
DC:≤1.0VDC No-load |
Operating temperature |
-20°C~+70°C |
Material |
ABS |
Wiring method |
φ3×2M/3-wires |
Protection degree |
IP66 |

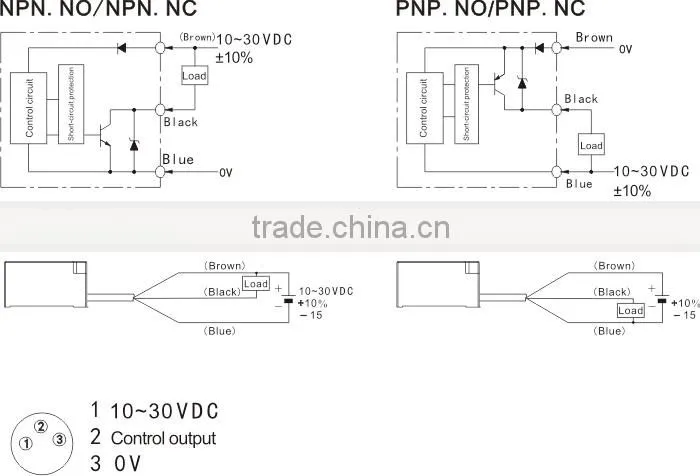

Diagram
