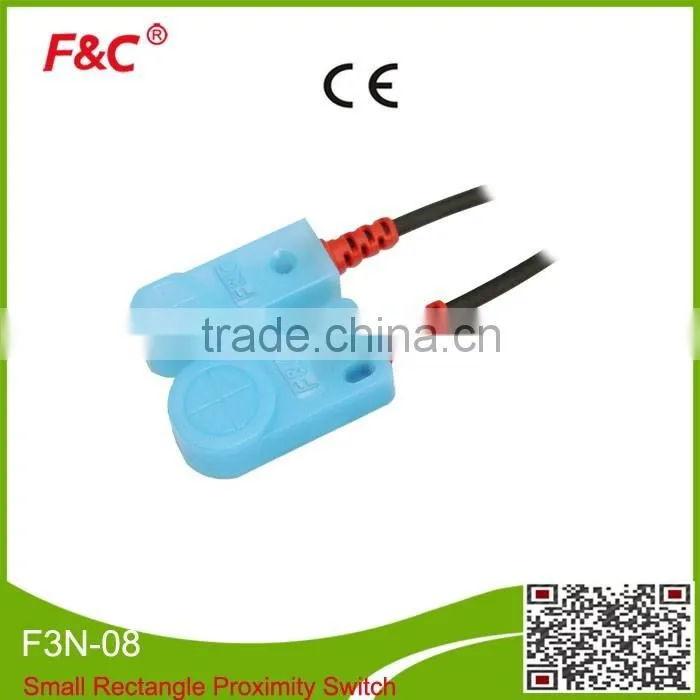

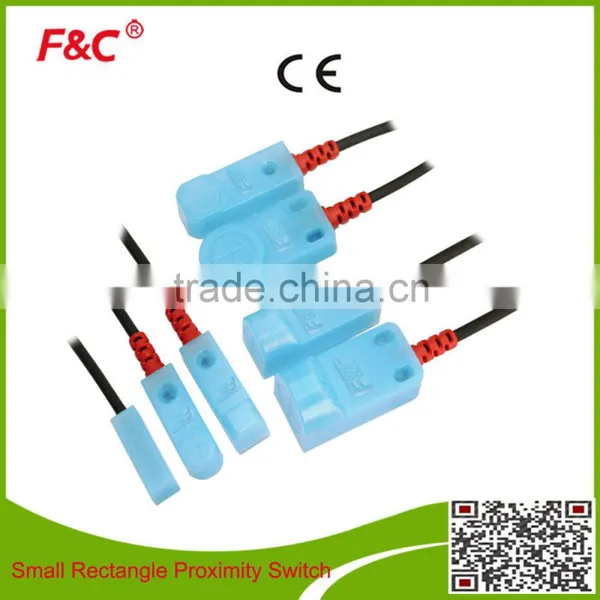

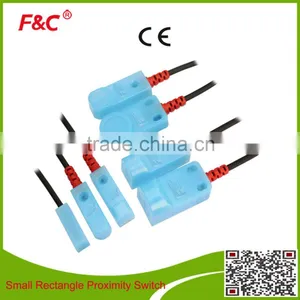

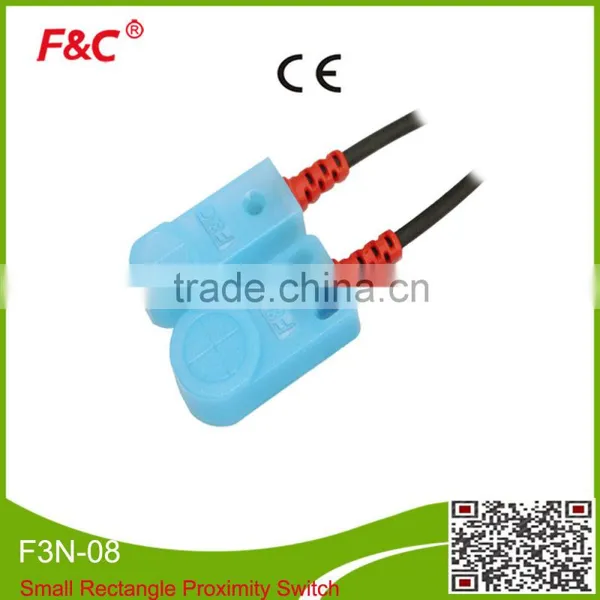

Help CenterSmall 12V-24V Inductive Proximity Sensor Switch With PNP NO and NPN NC(F3N-08TN02)
Related Products
-
F&C Q6 Small Square Induction Proximity Sensor With CEUS$ 1 - 14MOQ: 1 Piece -
12-24V DC 8mm NPN and PNP Type Small Inductive Proximity Sensor Switch(F3N-08TN02-NR2M)US$ 5.07 - 8.9MOQ: 10 Pieces
-
Q8 12-24V Sn 2mm Top Induction Small Square Proximity Sensor With CEUS$ 1 - 8MOQ: 1 Piece
-
F&C Finger Tip Size Front Inductive Proximity Sensor Switch(F3N-06DN01-NR2M)US$ 8.35 - 14.65MOQ: 10 Pieces
-
12 24VDC PNP NC Small Top Induction Position Sensor SwitchUS$ 6.39 - 10.55MOQ: 10 Pieces
F&C Sensing Technology has board selections of sensors.More than 3000models for option and accept OEM Order.
140 universal models in stock can be shipped at any time.and It cut leading time obviously.
Feature:
1.Competitive price
2.suitable for narrow space and easy to install.
3.Various model for option:Front Induction,Top Induction.
4.Integrated structure, waterproof, dustproof and oilproof.
5.Accept customized 5VDC proximity switch sensor.
6.Accept Customized 2Wires,different frequency proximity switch sensor.
Specification for Small Rectangle Inductive Proximity Sensor Switch
Model |
Induction Direction |
Output Method |
F3N-08TN02-NR2M |
Front Induction |
NPN NO |
F3N-08TN02-N2R2M |
Front Induction |
NPN NC |
F3N-08TN02-PR2M |
Front Induction |
PNP NO |
F3N-08TN02-P2R2M |
Front Induction |
PNP NC |
Detection Distance |
2mm |
|
Recommended Distance |
1.8mm |
|
Standard Detection Object |
8×8×1(iron) |
|
Response Frequency |
600HZ (Different Frequency can be customized) |
|
Hysteresis |
within 10% of sensing distance |
|
Operating Voltage |
10-30V DC |
|
Current Consumption |
Less than 8mA (No Load) |
|
Load Current |
100mA Max@30V DC |
|
Leakage Current |
1.1mA (No Load) |
|
Residual Voltage |
Less than 1.0V DC (No Load) |
|
Protection circuit |
Reverse circuit protection short circuit protection |
|
Operating Temperature |
-25~70℃ |
|
Protection Degree |
IP67(can customeize IP68) |
|
Material |
ABS |
|
Wire Method |
1.dia 3×2M/3 wires |
|

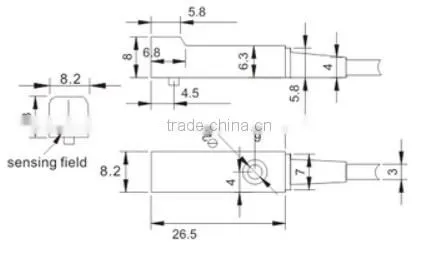

Dimension Drawing
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to allover the world.Its products cover 14 series and 300 specification. Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
-------------------------------------------------------------------------------------
1. Customize for cable length, housing material and shape.
2. The above information is only reference.
3. Any question, just feel free to let me know.
I can be reached by cellphone:86-13809275350 and Skype:lynn_liu123.
