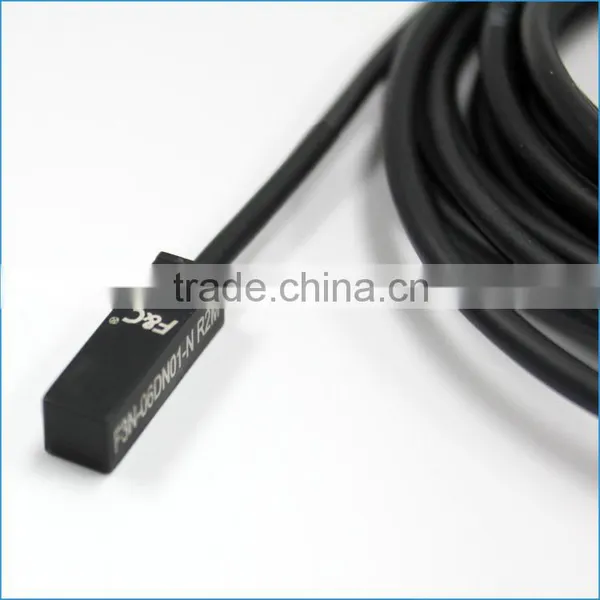

F&C Finger Tip Size Front Inductive Proximity Sensor Switch(F3N-06DN01-NR2M)US$ 8.35 - 14.65MOQ: 10 Pieces -
12 24VDC PNP NC Small Top Induction Position Sensor SwitchUS$ 6.39 - 10.55MOQ: 10 Pieces
-
12V-24V Front Inductive Proximity Sensor SwitchUS$ 3.52 - 4.78MOQ: 10 Pieces
-
OEM 12V-24V PNP NC Rectangular Top Induction Position Sensor SwitchUS$ 6.39 - 10.55MOQ: 10 Pieces
-
High Repeatability 12V-24V Inductive Proximity Sensor Switch (FSNDM04-N) for High Speed RotatorUS$ 16.47 - 27.17MOQ: 1 Piece

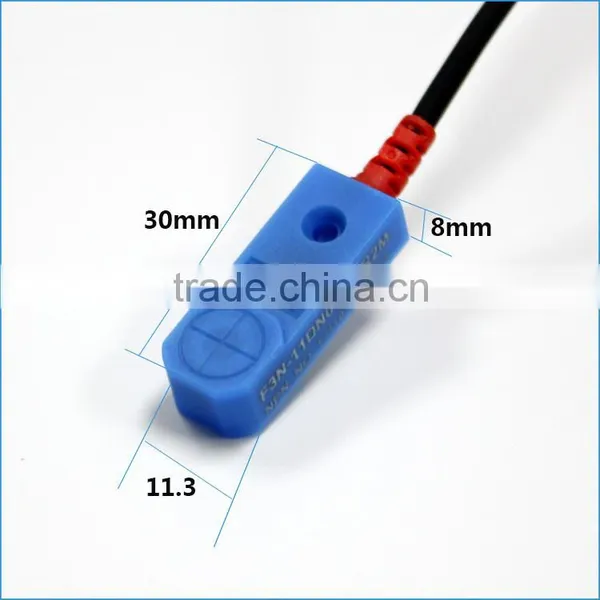

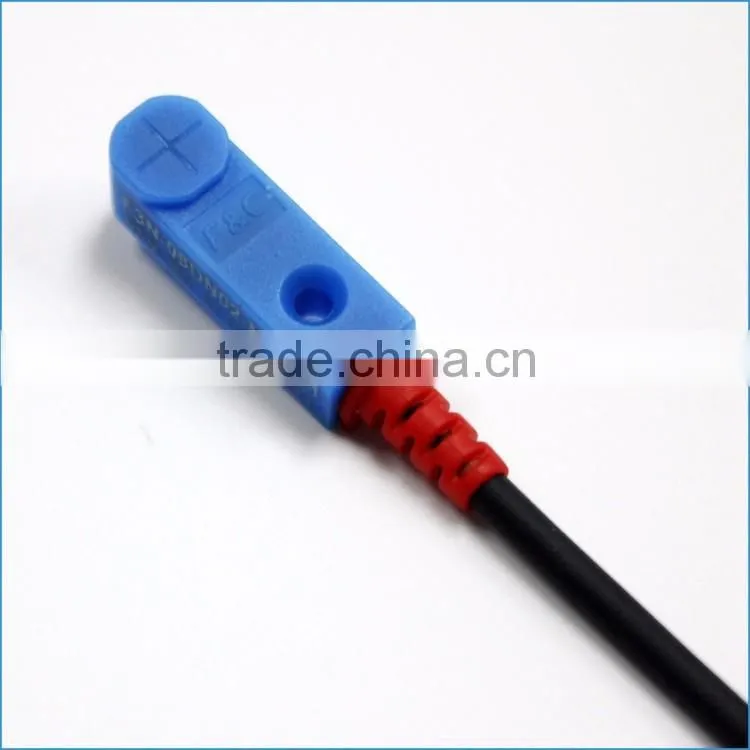

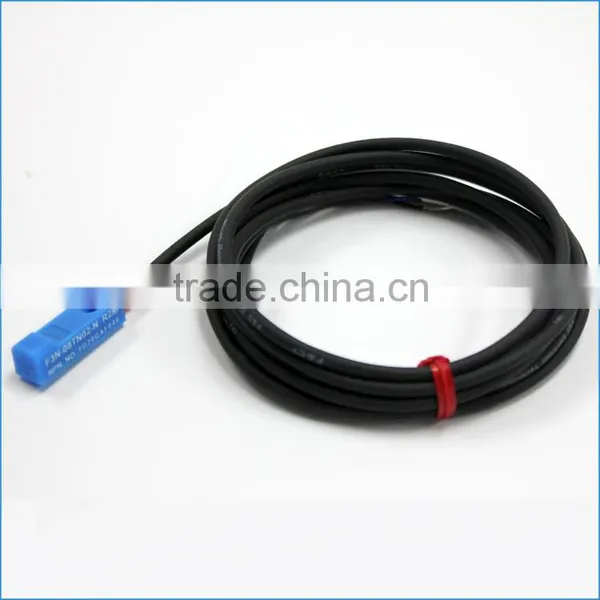

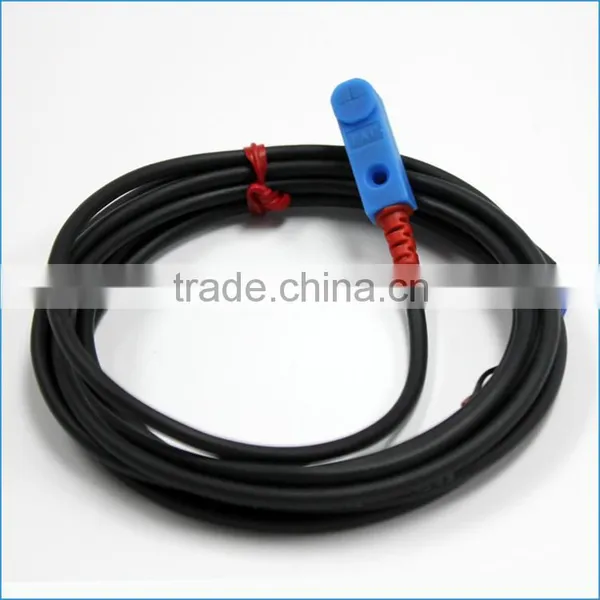

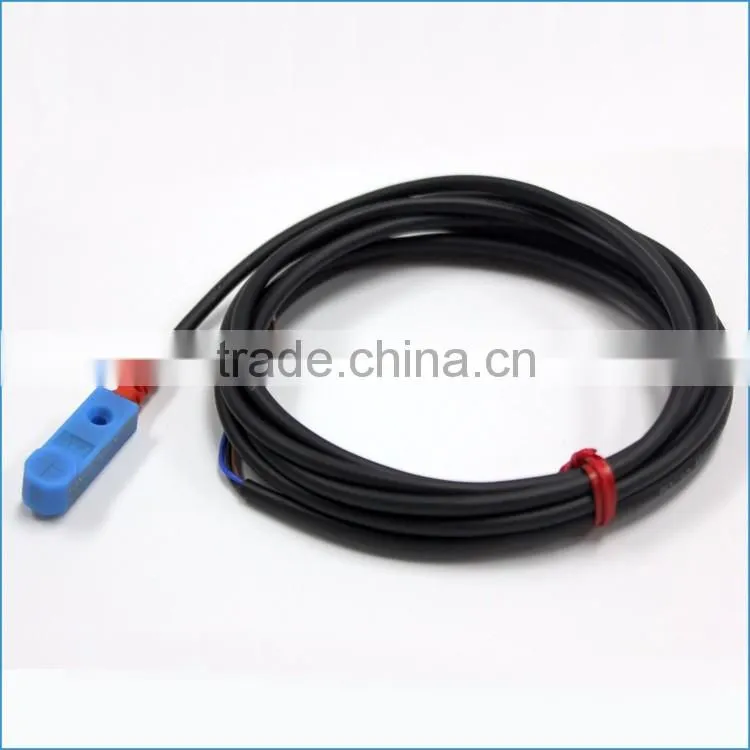

Q8 12-24V Sn 2mm Top induction small square proximity sensor
Feature
---Low cost, suitable for small space installation
---Top induction and Front induction avaible
---Intergarated structure, IP67, waterproof, oilproof, dustproof
---OEM 5VDC proximity sensor
---OEM 0.005mm high repeatability accuracy proximity sensor
---Q6,Q8,Q11,Q15,Q17,Q18,Q25,Q30,Q40 square proximity sensor available.
Welcome to contact with me for more details. I can be reached by skype/Wechat:lynn_liu123 and whatsapp:+8613319542018
Ordering Code
| Model | Output type | Sensing Distance | Power supply | Connecting Method |
| F3N-08DN02-PR2M | PNP NO | 2mm | DC 12~24V±10% | DC 3 Wire |
| F3N-08DN02-P2R2M | PNP NC | 2mm | DC 12~24V±10% | DC 3 Wire |
| F3N-08DN02-NR2M | NPN NO | 2mm | DC 12~24V±10% | DC 3 Wire |
| F3N-08DN02-N2R2M | NPN NC | 2mm | DC 12~24V±10% | DC 3 Wire |
Product specification

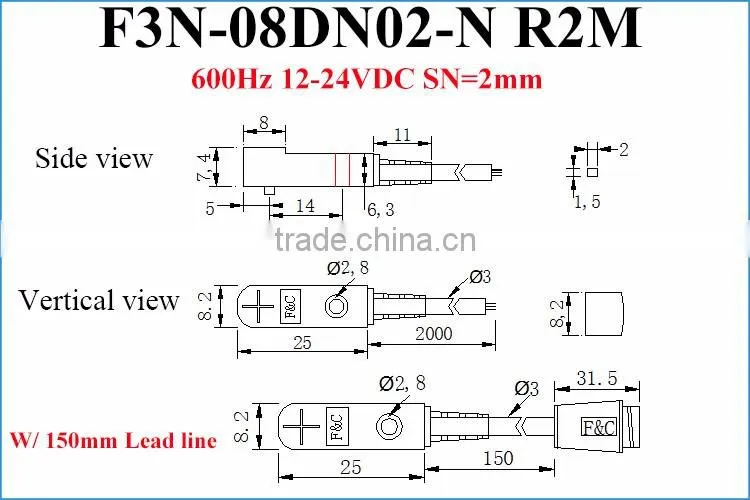

| Model | F3N-08DN02-N R2M | |
| Detection Distance | 2mm | |
| Output Method | NPN NO | |
| Standard Detection Object | 8×8×1(iron) | |
| Response Frequency | 600HZ | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 10-24V DC | |
| Protection circuit | Polarity Reverse and short- circuit protection | |
| Operating Temperature | -25~70℃ | |
| Protection Degree | IP67(can customize IP68) | |
| Material | ABS | |
| Wire Method | dia 3×2M/3 wires | |
Q8 12-24V Top induction small square proximity sensor
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading and professional sensor supplier in China.
Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber optic amplifier, Fiber optic Lens,
Proximity Sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Sensor, FemaleConnector, Laser Sensor, Color Marking Sensor,Rail Power Supply,Solid State Relay.
F&C SensingTechnology has been making continuous breakthrough in new technology and new application.
Our target is “What you need can be found in F&C Sensing Technology”.
