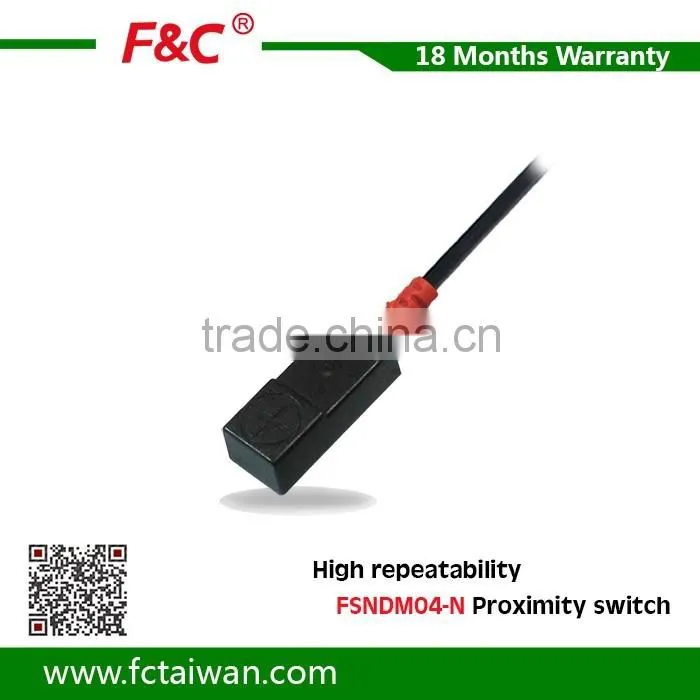

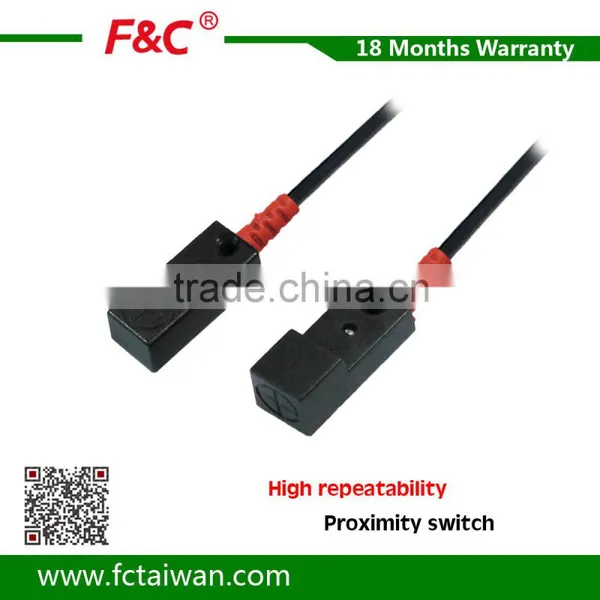

Help CenterHigh Repeatability 12V-24V Inductive Proximity Sensor Switch (FSNDM04-N) for High Speed Rotator
Related Products
-
15mm Detection Distance 10-30VDC Front Inductive NPN PNP Proximity Sensor SwitchUS$ 11.26 - 18.57MOQ: 1 Piece -
4mm Detection Distance TOp Inductive Proximity Sensor Switch WithUS$ 2.49 - 4.1MOQ: 1 Piece
-
10mm Detection Distance 12-24VDC Front Inductive NPN PNP Proximity Switch TransducerUS$ 8.31 - 13.71MOQ: 1 Piece
-
4mm Detection Distance DC 10-30V Rectangular Proximity Switch SensorUS$ 4.63 - 7.64MOQ: 1 Piece
-
5mm Detection Distance NPN DC 10-30V Proximity SensorUS$ 2 - 6MOQ: 1 Piece
Dear customer,
Welcome to visit our products.
We are a professional sensor manufacturer and solution provider.
Our main products are fiber optic amplifier, fiber optic sensor, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Our factory gets involved in sensor industry in 2003.
Hope you will find that is suitable for your products. If not,pls contact me by skype:lynn_liu123 ,we’ll find solutions for you.
Feature:
1.Accept customization of all kinds of special sensors for special application.
2.Our regular high repeatability proximity sensor can reach 0.005mm.
3.Repeatability accuracy 0.002mm position proximity switch can be customized.
Specification for high speed position switch
| Model | FSNDM04-N |
| Output Method | NPN NO |
| Inductive Direction | Top Induction |
| Detection Distance | 4mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 12*12(Iron) |
| Repeatability Accuracy | 0.005mm |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS and Nickeled copper |
| Protection Degree | IP67 |
| Wire Method | diameter 3*2M/-3wires |
Dimension Drawing
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to allover the world.Its products cover 14 series and 300 specification. Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
-------------------------------------------------------------------------------------
1. Customize for cable length, housing material and shape.
2. The above information is only reference.
3. Any question, just feel free to let me know.
I can be reached by cellphone:86-13809275350 and Skype:lynn_liu123.
