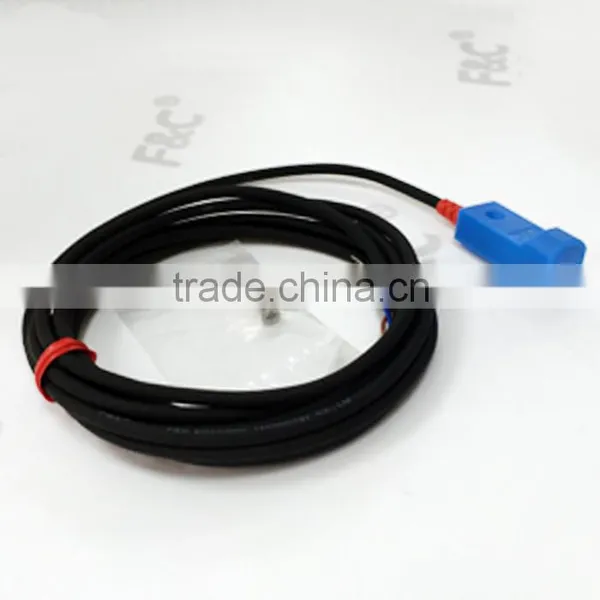

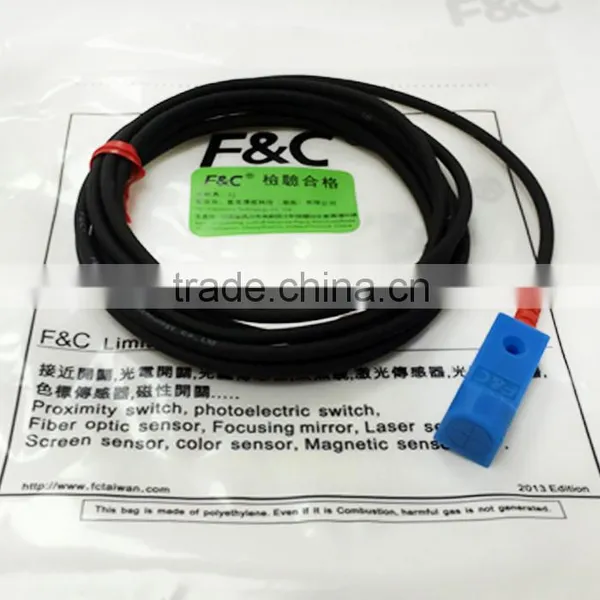

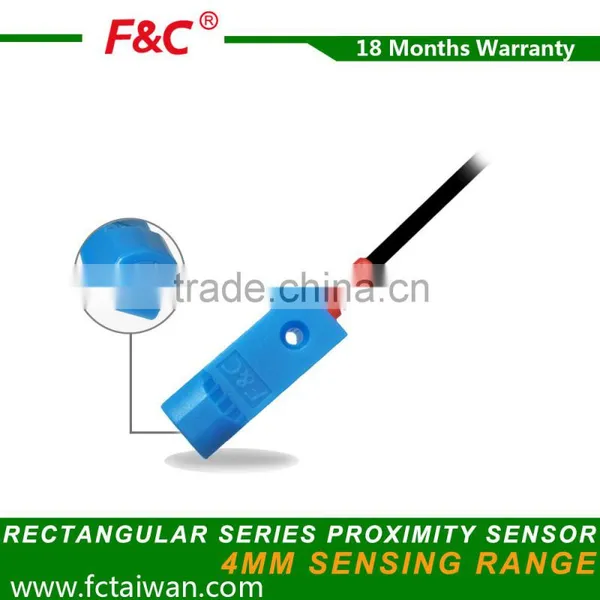

Feature:
1.Stable performance, reverse polarity protection and short circuit protection
2.10-30VDC build-in amplifier, direct output
3.Clear LED indicator
4.200 mA triode output , high responsing speed can reach 0.1ms
5.5V proximity and different frequency proximity switch sensor can be customized
6.5mm,6mm,8mm and other special detection distance can be customized
Specification for DC 10-30V PNP NC rectangular Proximity Switch Sensor
| Induction Direction | Front Induction |
| Model | F3N-11TN04-P2 R2M |
| Output Method | PNP NO |
| Detection Distance | 4mm |
| Standard Detection Object | 10×10×1(iron) |
| Response Frequency | 600HZ (Different Frequency can be customized) |
| Hysteresis | within 10% of sensing distance |
| Operating Voltage | 10-30V DC |
| Current Consumption | Less than 8mA (No Load) |
| Load Current | 100mA Max@30V DC |
| Leakage Current | 1.1mA (No Load) |
| Residual Voltage | Less than 1.0V DC (No Load) |
| Protection circuit | Reverse circuit protection short circuit protection |
| Operating Temperature | -25~70℃ |
| Protection Degree | IP67 |
| Material | ABS |
| Wire Method | dia 4*2M/3 wires |

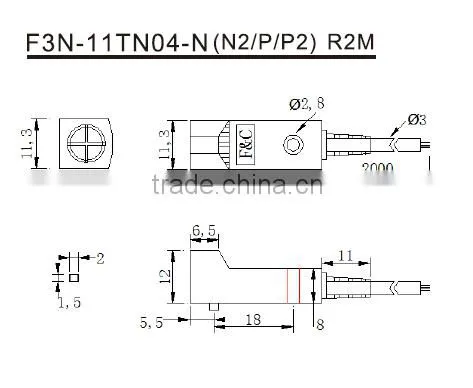

Dimension Drawing for DC 10-30V PNP NO rectangular Proximity Switch Sensor

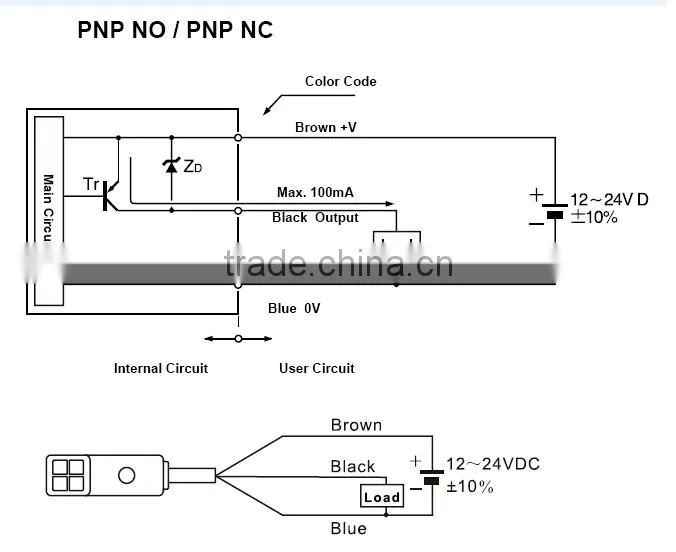

Wiring Drawing
More Product Specification
| Category | Model | Detection Mode | Detection Distance | Standard Detection Object |
Connecting Method |
| Front Induction |
F3N-06TN01-N R2M | NPN NO | Max detection distance: 1.5mm Stable detection distance 0~1.0mm |
6×6×1(iron) | diameter 3mm×2M/3 wires 150mm lead line with M8 connector |
| F3N-06TN01-N2R2M | NPN NC | ||||
| F3N-06TN01-P R2M | PNP NO | ||||
| F3N-06TN01-P2R2M | PNP NC | ||||
| Top Induction |
F3N-06DN01-N R2M | NPN NO | |||
| F3N-06DN01-N2R2M | NPN NC | ||||
| F3N-06DN01-P R2M | PNP NO | ||||
| F3N-06DN01-P2R2M | PNP NC | ||||
| Front Induction |
F3N-08TN02-N R2M | NPN NO | Max detection distance: 2mm Stable detection distance 0~1.8mm |
8×8×1(iron) | diameter 3mm×2M/3 wires diameter 3mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-08TN02-N2R2M | NPN NC | ||||
| F3N-08TN02-P R2M | PNP NO | ||||
| F3N-08TN02-P2R2M | PNP NC | ||||
| F3N-08TN02-B R2M | 2 wires NO | ||||
| F3N-08TN02-B2R2M | 2 wires NC | ||||
| Top Induction |
F3N-08DN02-N R2M | NPN NO | |||
| F3N-08DN02-N2R2M | NPN NC | ||||
| F3N-08DN02-P R2M | PNP NO | ||||
| F3N-08DN02-P2R2M | PNP NC | ||||
| F3N-08DN02-B R2M | 2 wires NO | ||||
| F3N-08DN02-B2R2M | 2 wires NC | ||||
| Front Induction |
F3N-12TN04-N R2M | NPN NO | Max detection distance: 4mm Stable detection distance 0~3.2mm |
12×12×1(iron) | diameter 4mm×2M/3 wires diameter 4mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-12TN04-N2R2M | NPN NC | ||||
| F3N-12TN04-P R2M | PNP NO | ||||
| F3N-12TN04-P2R2M | PNP NC | ||||
| F3N-12TN04-B R2M | 2 wires NO | ||||
| F3N-12TN04-B2R2M | 2 wires NC | ||||
| Top Induction |
F3N-12DN04-N R2M | NPN NO | |||
| F3N-12DN04-N2R2M | NPN NC | ||||
| F3N-12DN04-P R2M | PNP NO | ||||
| F3N-12DN04-P2R2M | PNP NC | ||||
| F3N-12DN04-B R2M | 2 wires NO | ||||
| F3N-12DN04-B2R2M | 2 wires NC | ||||
| Front Induction |
F3N-15TN05-N R2M | NPN NO | Max detection distance: 5mm Stable detection distance 0~4mm |
15×15×1(iron) | diameter 4mm×2M/3 wires diameter 4mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-15TN05-N2R2M | NPN NC | ||||
| F3N-15TN05-P R2M | PNP NO | ||||
| F3N-15TN05-P2R2M | PNP NC | ||||
| F3N-15TN05-B R2M | 2 wires NO | ||||
| F3N-15TN05-B2R2M | 2 wires NC | ||||
| Top Induction |
F3N-15DN05-N R2M | NPN NO | |||
| F3N-15DN05-N2R2M | NPN NC | ||||
| F3N-15DN05-P R2M | PNP NO | ||||
| F3N-15DN05-P2R2M | PNP NC | ||||
| F3N-15DN05-B R2M | 2 wires NO | ||||
| F3N-15DN05-B2R2M | 2 wires NC |
