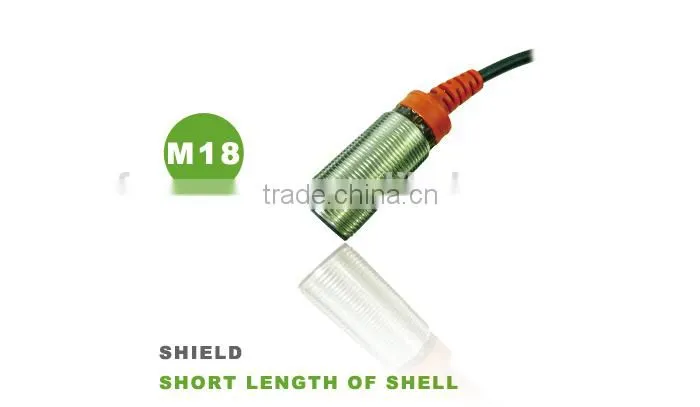

F&C M18 F3C-18ES05 Series, 12~24v DC Switching Transducer, Short Housing Type, Flush Position Transducer
US$ 5 - 10
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3C-18ES05-N/P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3-wire/PNP/NPN, M18 F3C-18EN08 Series Proximity Sensor, 12-24v DC, Switching Output.US$ 5 - 10MOQ: 20 Pieces -
Big Cylindrical, 12~24VDC M30 Proximity Sensor, Position Sensor, NPN/PNP Offered, Can do 5v DC Working Voltage.US$ 5 - 10MOQ: 20 Pieces
-
M30 Cylindrical, Non-Shelid/Non-flush Proximity Sensor, Position Detection, Existing Detection.US$ 5 - 10MOQ: 20 Pieces
-
F&C M8 Sn1mm 12V-24V dc NPN Type Inductive Proximity Sensor With CE Quality ChoiceUS$ 1 - 10MOQ: 1 Piece
-
F&C 24V DC M8 2mm Sensing Non-flush Type Inductive Proximity Switch Sensor 2mmUS$ 5 - 10MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3C-18ES05-N/P
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
Product Description
F3C series switching transducer

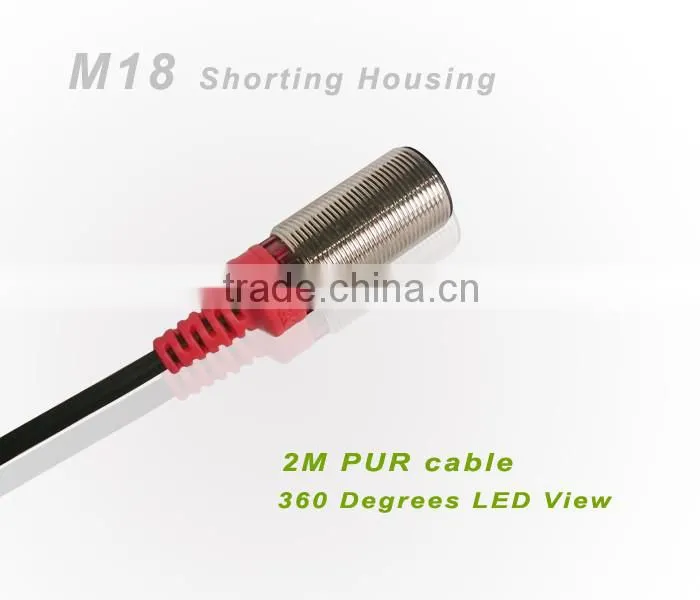

1) 2M soft PUR cable;
2) 360 degrees LED view;

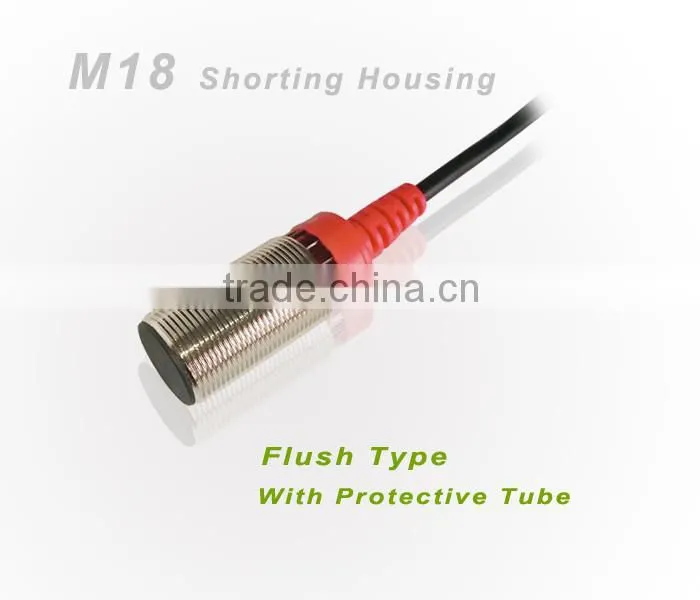

3) With red protective tube for protecting cable;
4) Support for customizing, 5V DC offered.
| Discriptions | Part Numbers | Output | Sensing Range | Detected Object | Cable |
| M18/Flush/Short Housing | F3C-18ES05-N R2M | NPN.NO | 5mm | 18×18×1(iron) | φ4×2M/3-wires |
| F3C-18ES05-N2 R2M | NPN.NC | ||||
| F3C-18ES05-P R2M | PNP.NO | ||||
| F3C-18ES05-P2 R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |

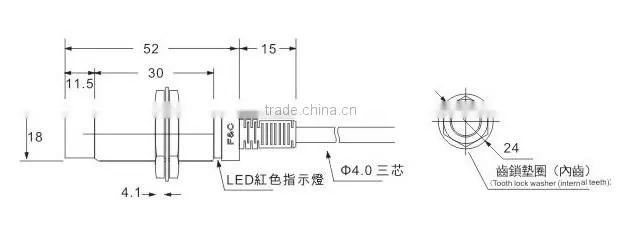

Diagram
