F&C M8 Sn1mm 12V-24V dc NPN type inductive proximity sensor
Feature

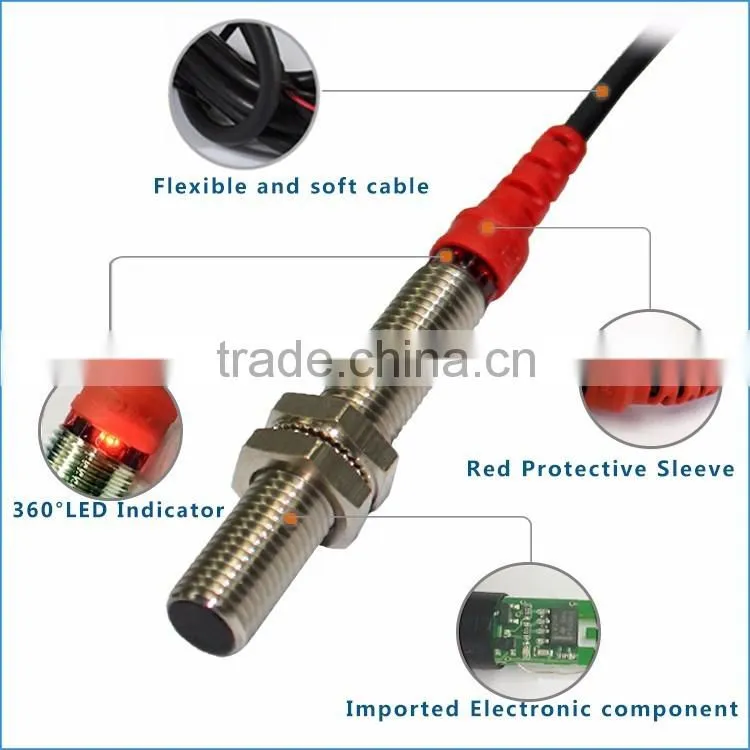

1.360 degree view LED Indicator
2.Housing material optional Stainless steel, Nickel-copper alloy
3.Complete rang of specification from M8 to M30 inductive proximity sensor
4.Cable and Connector connection optional
5.Circuit protection:Short-Circuit protection, Polartiy reverse protection.
M8 Series stanard inductive Proximity Sensor Specification
| Type | Standard Head | |
| Mounting Method | Flush | Non-Flush |
| Sensing Distance | 1mm | 2mm |
| Output NPN NO | F3C-08KS01-NR2M | F3C-08KN02-NR2M |
| Output NPN NC | F3C-08KS01-N2R2M | F3C-08KN02-N2R2M |
| Output PNP NO | F3C-08KS01-PR2M | F3C-08KN02-PR2M |
| Output PNP NC | F3C-08KS01-P2R2M | F3C-08KN02-P2R2M |
| Sensing Object | 8×8×1(iron,metal) | |
| Response Frequency | 1000HZ | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 12~24V DC | |
| Operating Temperature | -25~70℃ | |
| Material | PBT and SUS304 | |
| Connection | dia3.0*2M/3-wires | |
| Certificate | CE | |
| Protection Class | IP67 | |
| Circuit Protection | Polarity reverse protection and Short -Circuit Protection. | |

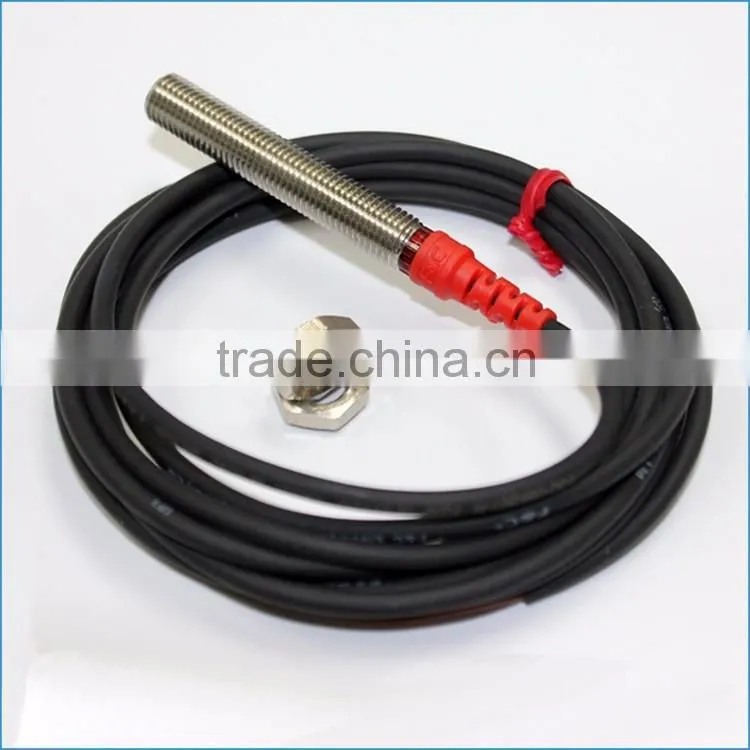

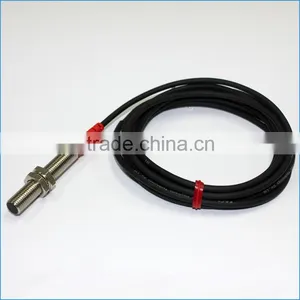

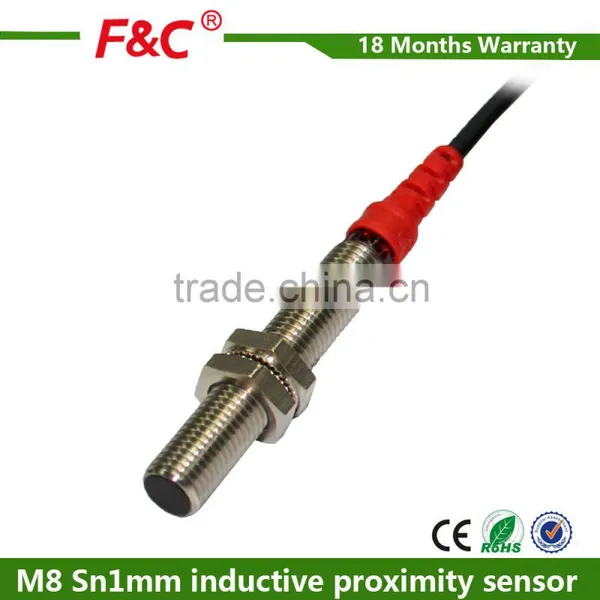

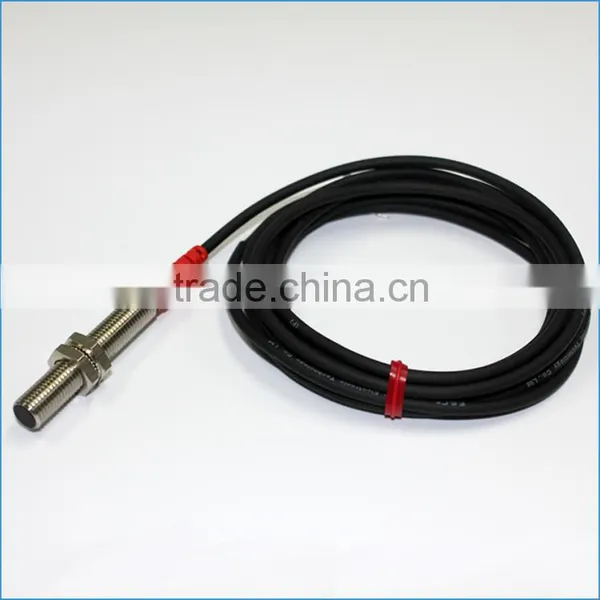

Product display

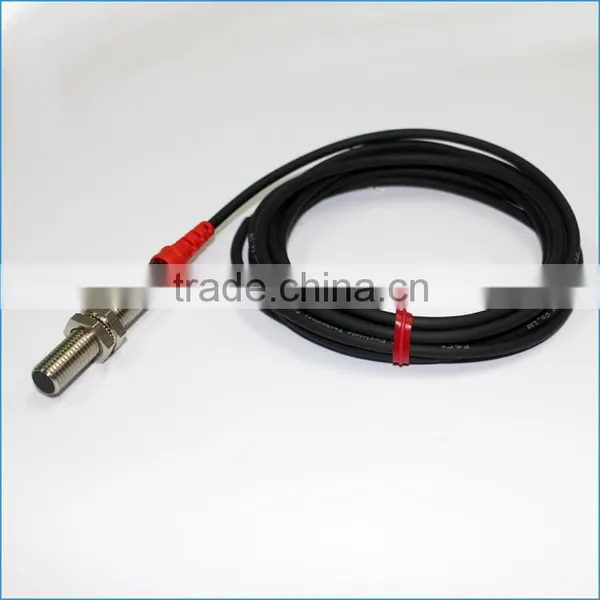

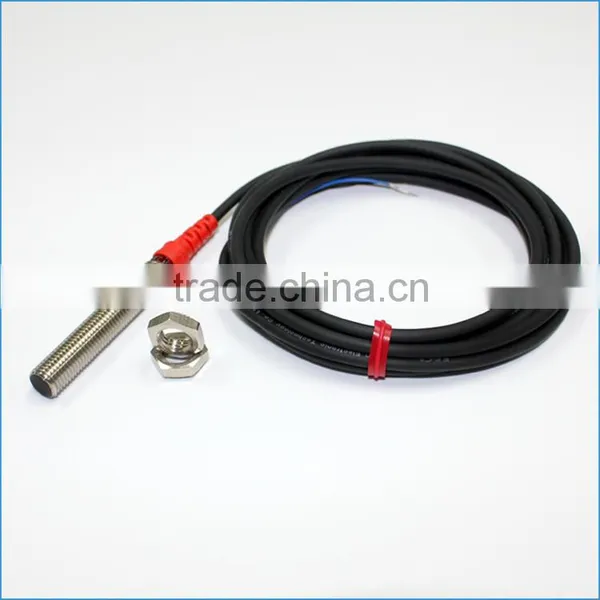

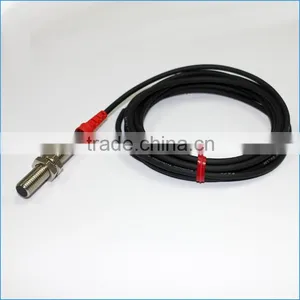

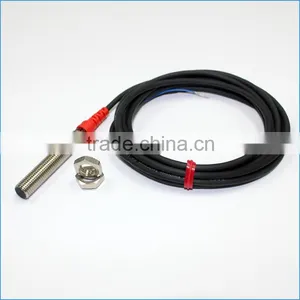

M8 Series different size 12V-24V dc inductive proximity sensor

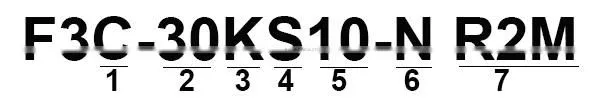

F&C Inductive Proximity Sensor Code Rule
1. Proximity sensor category (C:Cylinder Type; L: Cylinder double detection distance Type;N: Square Type)
2. Head Dimension( Dia 4mm, M5,6.5mm, M8, M12, M18, M30)
3. Body Length (K: Standard Length; E: Short body)
4. Mounting Method(S:Shield N: Non-Shield)
5. Detection distance(15:15mm)
6. Output Method(N: NPN NO; N2: NPN NC; P:PNP NO; P2: PNP NC;
B:2 wires NO: B2: 2 wires NC)
7. 2 meter standard soft wires

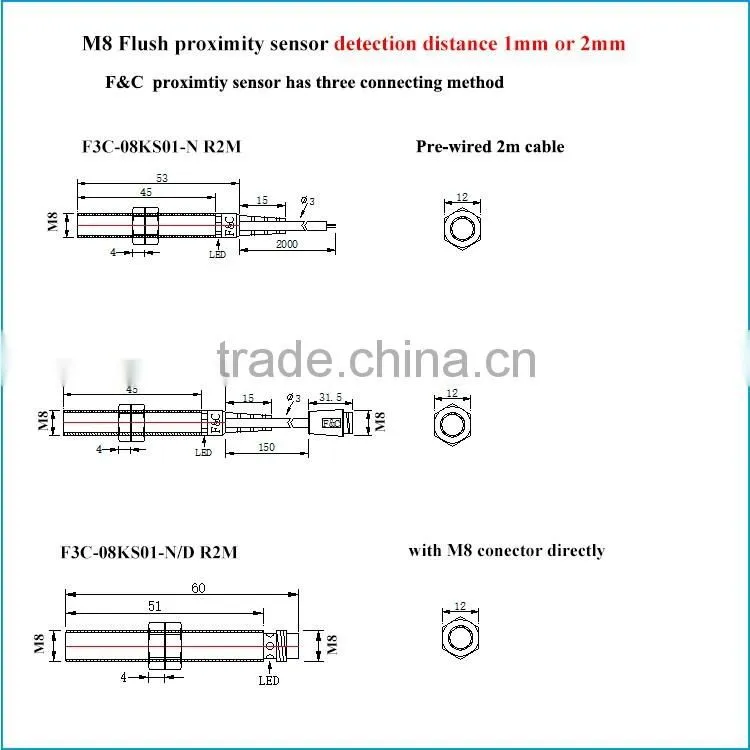

Dimension
M8 NPN 1mm 12V dc inductive proximity sensor
Wire drawing
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
F&C Sensing Technology is a leading and professional sensor supplier in China.
Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber optic amplifier, Fiber optic Lens,
Proximity Sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,
Solid State Relay.
F&C SensingTechnology has been making continuous breakthrough in new technology and new application.
Our target is “What you need can be found in F&C Sensing Technology”
