M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor

M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor thumbnail-1
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor thumbnail-2
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor thumbnail-3
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor thumbnail-4
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor thumbnail-5
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor photo-1
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor photo-2
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor photo-3
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor photo-4
M18 360 Degree LED View and Short Body NPN NO Flush Inductive Proximity Switch Sensor photo-5
US$ 5 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3C-18ES05-NR2M
Contact Supplier Request Quote Chat Now
F&C Sensing Technology (Hunan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number F3C-18ES05-NR2M
Usage Position Sensor
Theory Inductance Sensor
Output Other, Switching Transducer, NPN NO

M18 360 degree LED view and Short body NPN NO flush inductive proximity switch sensorNew Standards, New Look ,New Features

                                      12-24V DC inductive proximity switch sensors





Advise your actual demand, we will provide solutions for you!





Product Description

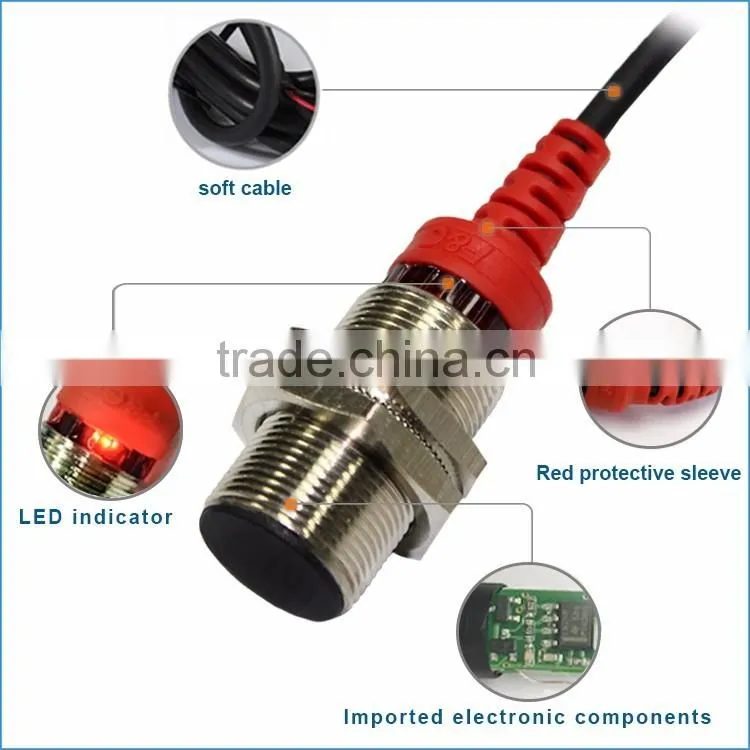

F&C Proximity Switch  Sensor Feature:



1.Non-touch detection mode, no abrasion , high reliabity



2.360 degree LED Indicator



3.Built-in amplifier,



4.Housing material optional Stainless steel, Nickel-copper alloy,



5.Complete rang of specification from M8 to M30



6.Cable and Connector connection optional



7.Circuit protection:Short-Circuit protection, Polar protection.



8. Fast response speed 0.1ms



9.Resistant bent tail end can well protect outlet location.

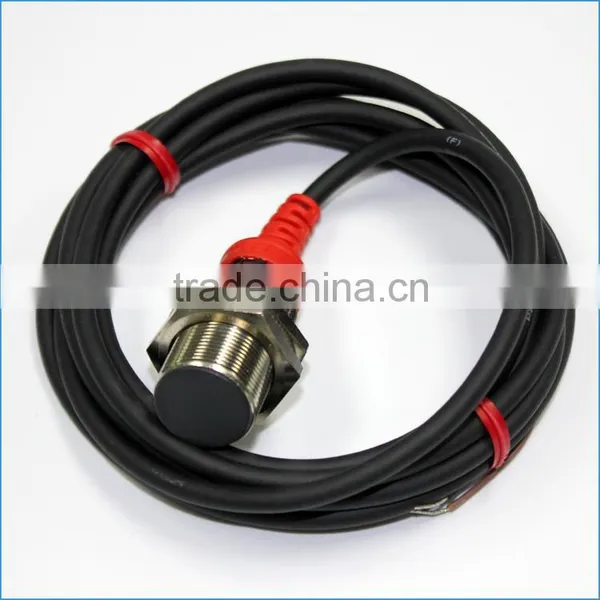

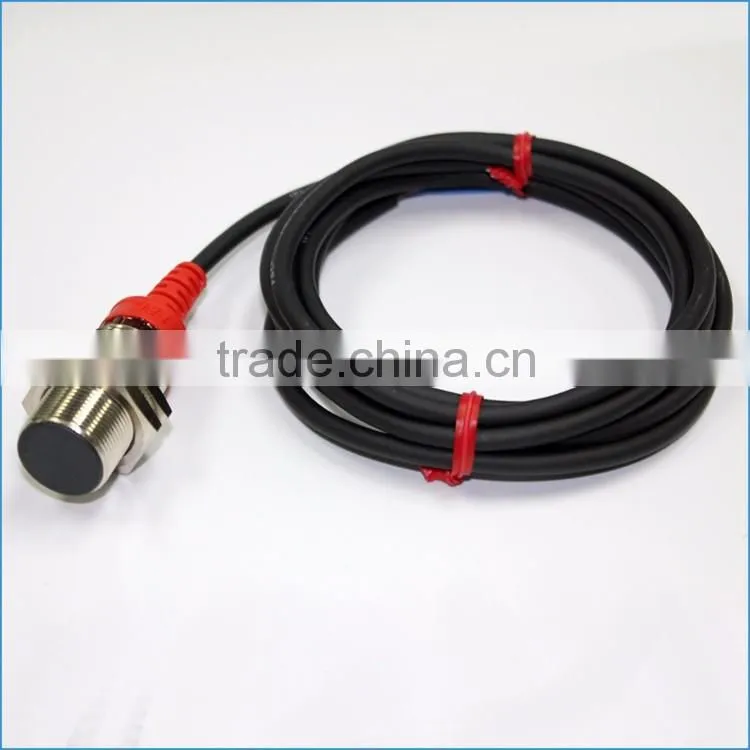

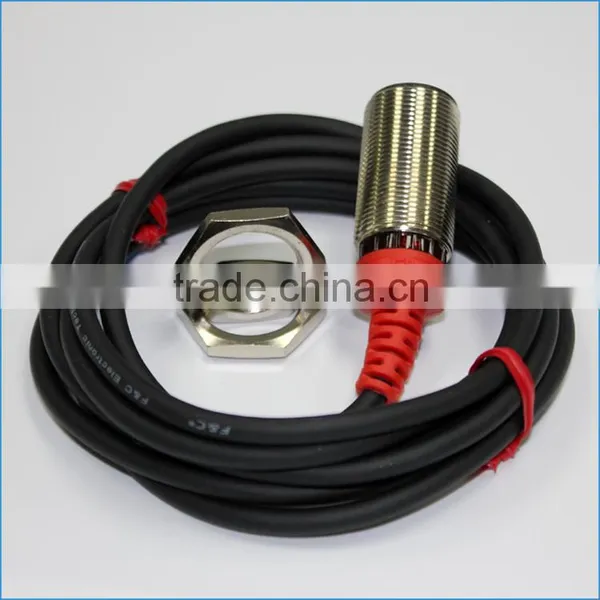

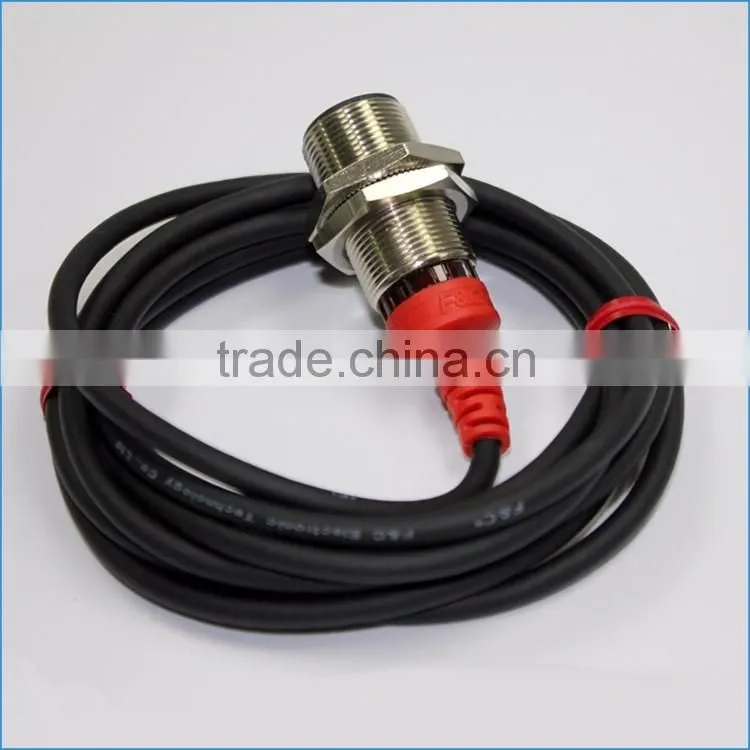

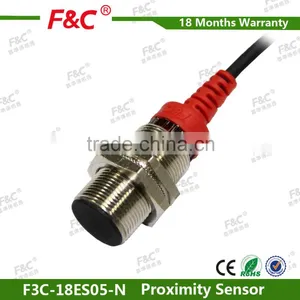

 Product Picture for  inductive proximity switch sensor of F3C-18ES05-N R2M

 M18 360 degree LED view and Short body NPN NO flush inductive proximity switch sensorM18 360 degree LED view and Short body NPN NO flush inductive proximity switch sensorM18 360 degree LED view and Short body NPN NO flush inductive proximity switch sensor





More Product

Type Standard Head  Short Head
Mounting  Flush Non-Flush Flush Non-Flush
Sense Distance 1mm 2mm 1mm 2mm
Output  NPN NO F3C-08KS01-NR2M F3C-08KN02-NR2M F3C-08ES01-NR2M F3C-08EN02-NR2M
Output  NPN NC F3C-08KS01-N2R2M F3C-08KN02-N2R2M F3C-08ES01-N2R2M F3C-08EN02-N2R2M
Output  PNP NO F3C-08KS01-PR2M F3C-08KN02-PR2M F3C-08ES01-PR2M F3C-08EN02-PR2M
Output  PNP NC F3C-08KS01-P2R2M F3C-08KN02-P2R2M F3C-08ES01-P2R2M F3C-08EN02-P2R2M
Sensing Object 8×8×1(iron,metal)
Response Frequency 1000HZ
Hysteresis within 10% of sensing distance
Operating Voltage 12~24V DC
Consumption Current <8mA (No-load)
Load Current DC:24V  100mA Max
Leakage Current <0.01mA
Operating Temperature -25~70℃
Material  PBT and SUS304
Connection dia3.0*2M/3-wires
Certificate CE
Protection Degree IP67
Polarity Protection Yes
Short Circuit Protection Yes





Our Services

1.Prompt reply to our customer, we have to reply all the email within 24hrs

2.Provide free replacement if there is any quality problem with our product.

3. Accept OEM Order, Ship the product with your logo.



Packaging & Shipping

 We will ship our product aboard with standard export package.

For small Qty, We will Ship our product to you by express.  For mass production , We will ship our product to you by Air or sea.







Company Information



F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and Changsha factory in 2013.

F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000 specification. Our main product include Fiber Optic Sensor, Fiber Optic Amplifier, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.

F&C Technology has been making continuous breakthrough in new technology and new  application,. Our Target is “What you need can be found in F&C Sensing Technology”





Note
--------------------------------------------------------------------
1. Customize for cable length, housing material and shape.
2. The above information is only reference.
