High bright RED LED indicator make we can have 360 degree View.
F3L-18KN08-P R2M M18 standard proximity sensor detection distance reach 8mm.
Feature For F3C/F3L round proximity sensor with red protective tube.
1.Small Size, Strong Structure, High Performanc.
2.10-30V Power Supply,Build-in Amplifer
3.Clear and easy to see LED Indicator
4.Physical output 100ma, High speed repsonsing up to 0.1ms
5.Durable Stainless Shell, Strong anti-interference ability.
6.Can customize 5V operating Voltage,different frequency, two wires products.
Specification for long distance M18 PNP Non-shield proximity sensor
| Model | F3L-18KN08-P R2M |
| Output Method | PNP NO |
| Mounting Method | Non-Flush |
| Detection Distance | 8mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 60*60*1(Iron) |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.5VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT and Nickelled copper |
| Wire Method | Dia 4mm*2M/-3 wires |

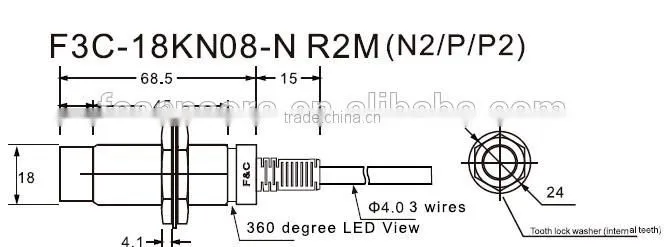

Dimension Drawing for M18 cylinder NPN NO proximity sensor
Wire drawing
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006
and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to
all over the world.Its products cover 14 series and 300 specification.
Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch,
Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor,
Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material
application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
------------------------------------------------------------------------------------------------------------------
1.We accept customization for different frequency and 4 wires, 2 wires proximity sensor.
duct can have 150mm wire with M8 connector or product directly with M8 connector
Welcome to contact with me.
I can be reached by Skype:lynn_liu123 and Cellphone/Wechat:8613809275350
