Diameter 3mm, 4mm,M5,M6,M8,M12,M18,M30
12-24 DC inductive proximity switch sensors professional manufacturer
Feature For F&C M8 Full metal proximity sensor switch
1.M8, M12, M18, M30 available.
2.10-30V Power Supply
3.Full Metal sheet
4.5V,different frequency, 2 wires proximity sensor can be customized .
Specification for F&C M8 Full metal proximity sensor switch
| Model | FSCU0801-N/D |
| Output Method | NPN NO |
| Detection Distance | 1mm |
| Standard Detection Object | 8×8×1(iron) |
| Response Frequency | 1000HZ |
| Hysteresis | within 10% of sensing distance |
| Operating Voltage | 12-24V DC |
| Current Consumption | Less than 10mA (No Load) |
| Load Current | Less than100mA |
| Leakage Current | 0.01mA (No Load) |
| Residual Voltage | Less than 1.0V DC at 100mA |
| Protection circuit | Reverse circuit protection short circuit protection |
| Operating Temperature | -25~70℃ |
| Protection Degree | IP67 |
| Material | SUS304 |
| Wire Method | M8 quick connector |

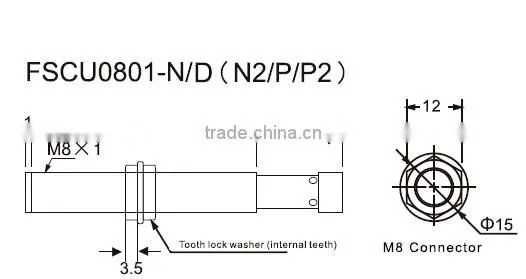

Dimension Drawing for M8 Full metal proximity sensor Switch
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 300 specification. Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
-------------------------------------------------------------------------------------
1. Customize for 150mm wire with M8 connector or product directly with M8 connector
2. The above information is only reference.
Welcome to contact with me. I can be reached by Cellphone/Wechat:8613809275350
