HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer



Known industry wide for their rugged construction and reliability,Hongxin air motors are used in a variety of applications.

Lubricated air motors come in seven basic models up to 9.5hp(7kw);motor speeds are variable from 300 to 10,000rpm.

Choose from hub,foot,face,flange interfacee mountings and clockwise,counterclockwise or reversible rotations.

Four and eight vane models are also available.



Main characteristics of air motor:



Variable speed

Nonelectrical sparking

Instantly reversible

Cool running

Compact and portable

Minimum maintenance

Will not burn out

Low price

Operate in all positions

Low shock starts

Self sealing vanes

Mounting flexibility

Four vane or eight vane

Long life accessories



Main technical parameters:



VANE AIR MOTOR

Model

Operation Data

Maximum Torque

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

hp

kW

Nm

lb.in

rpm

m³/h

cfm

rpm

Nm

lb.in

HX1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.60

HX1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.00

HX2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.10

HX4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56.00

HX6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115.00

HX8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185.00

HX16AM

 9.50 7.00 34 290 2000 475 275 300 43 372

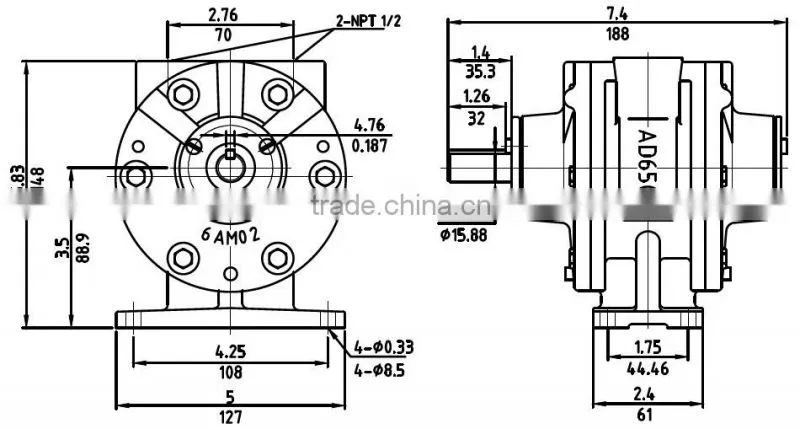

Photoes & Drawings:

HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire ChangerHX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer

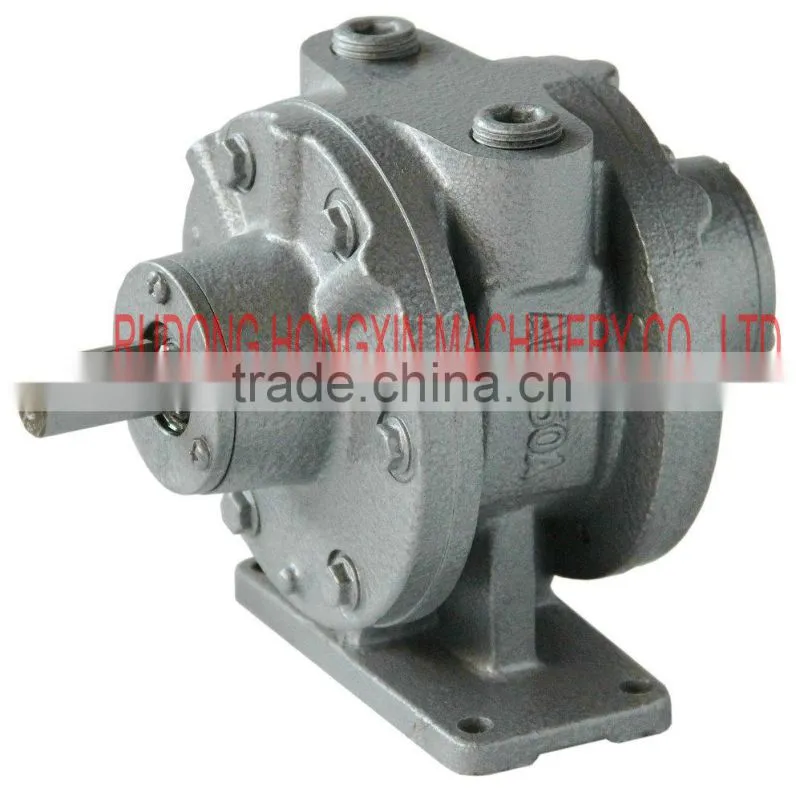

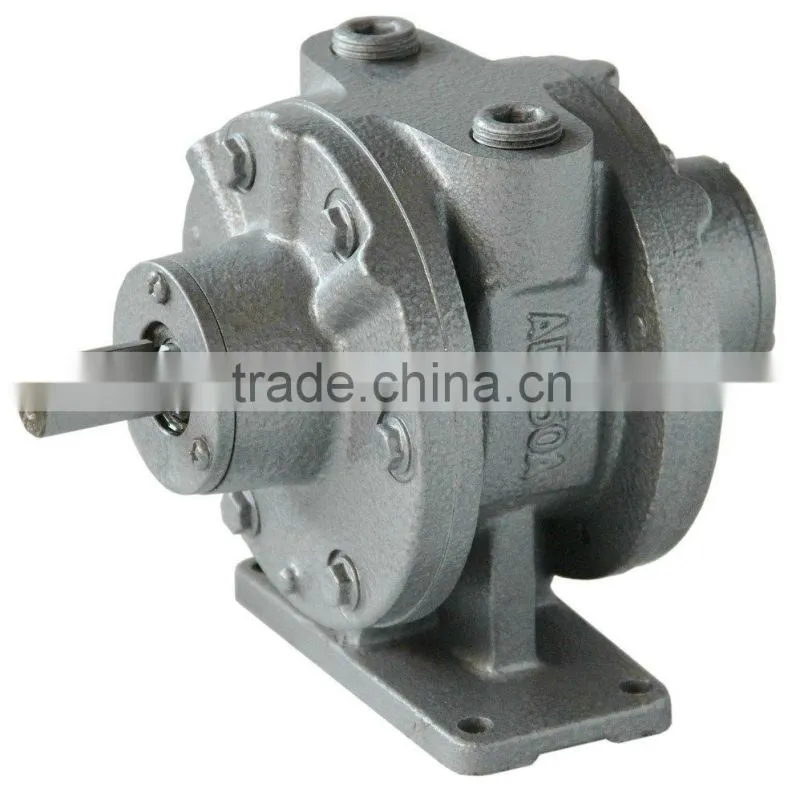

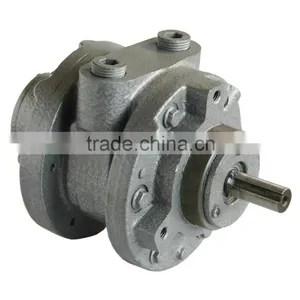

HX6AM-H (GAST AIR MOTOR MODEL: 6AM-FRV-5A )  FOOT MOUNTING

IT IS WIDELY USED IN HENNESSY INDUSTRIES INC,HENNESSY CHINA,COATS TIRE CHANGERS



Different Models Air Motor Photoes:



HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer                                        HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer

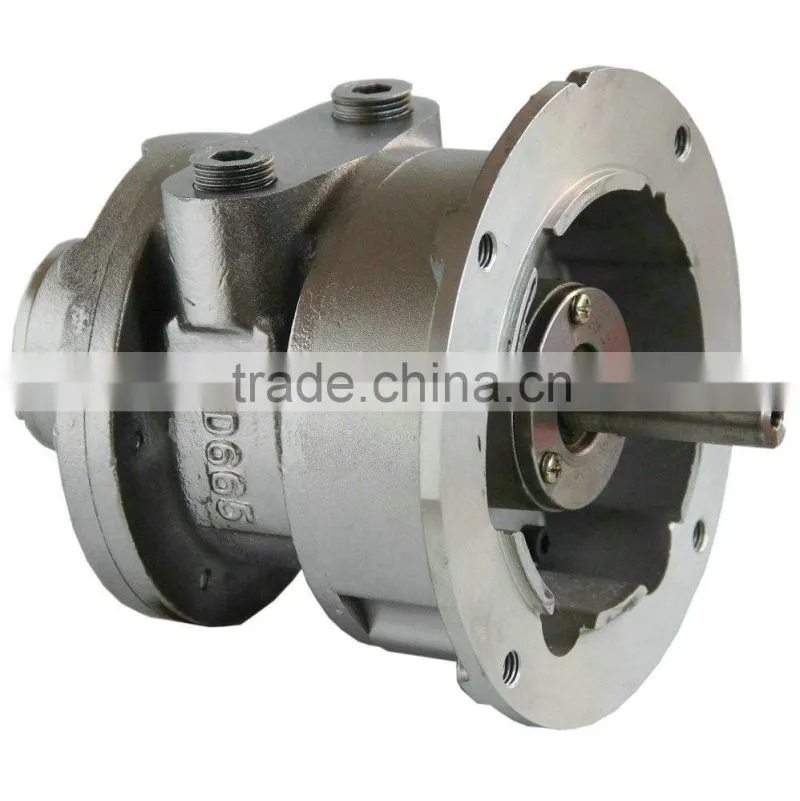

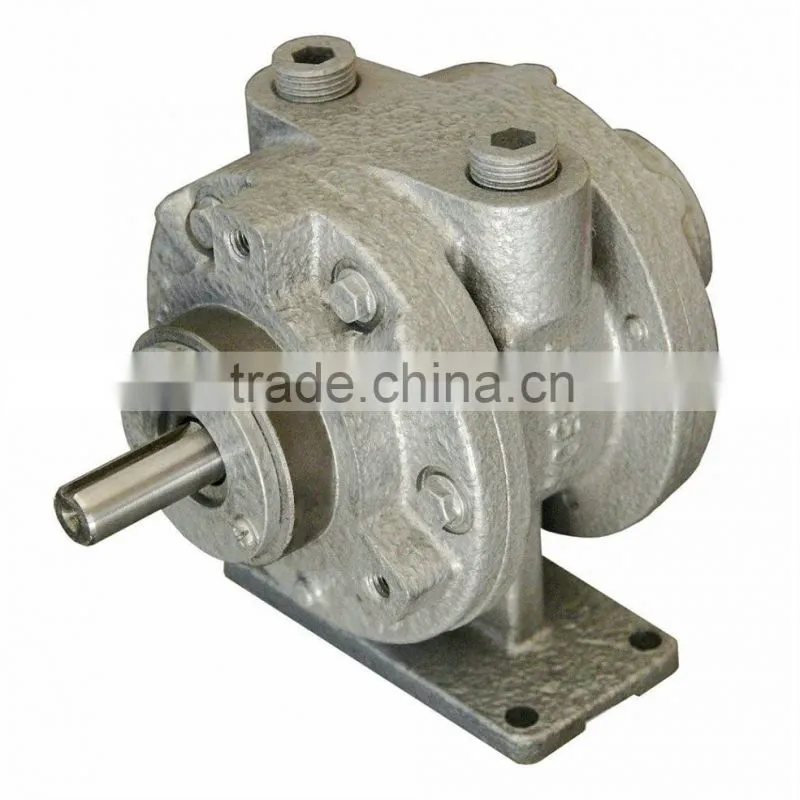

HX6AM-H (Gast Model:6AM-FRV-5A) Foot Mounting              HX6AM-V (Gast Model:6AM-NRV-7A) Face Mounting



HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer                                        HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer

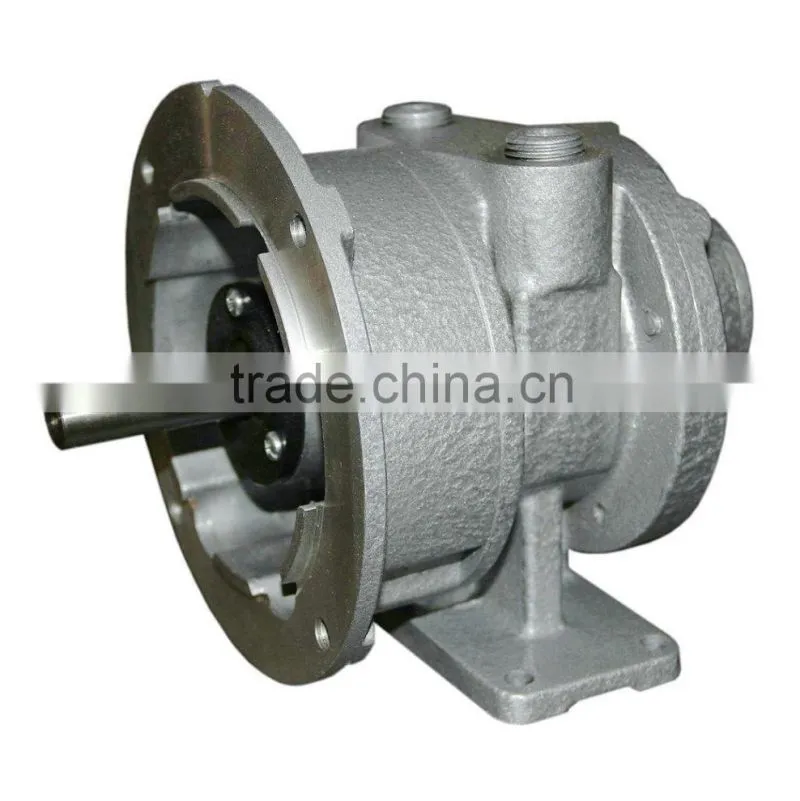

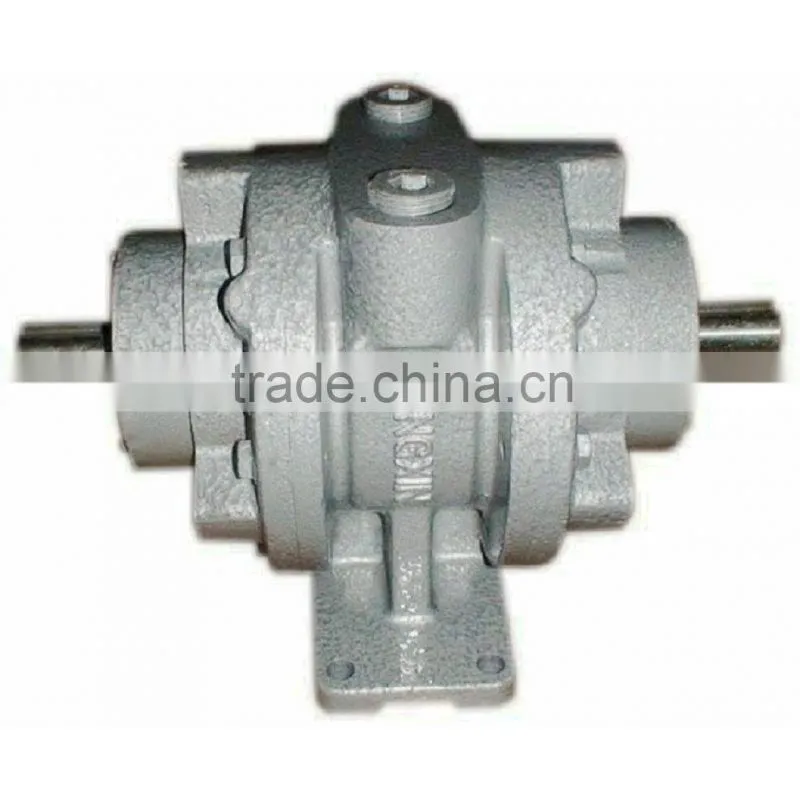

HX6AM-HV Foot & Face Mounting                                            HX6AM-HVD Foot & Face Mounting,Two Shafts



HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer                    HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer                    HX6AM-H,4HP Air Motor,Foot Mounting,Gast Equivalent Motor Model 6AM-FRV-5A,For Coats Tire Changer

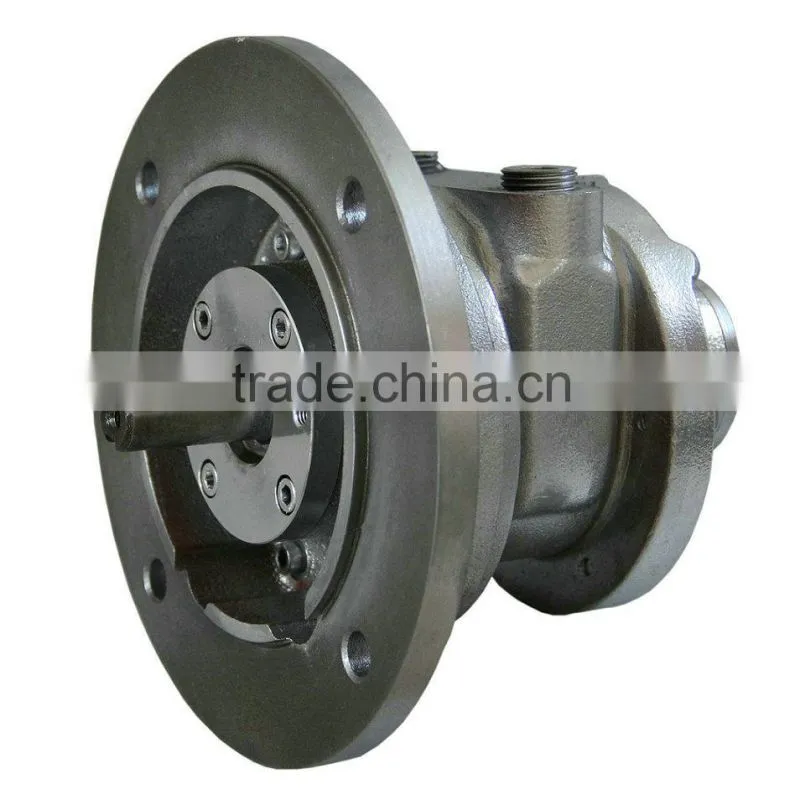

HX6AM-F114.3 Flange Mounting                  HX6AM-H-F114.3 Foot & Flange Mounting             HX6AM-F130 Flange Mounting

(Gast Model:6AM-NRV-11A)                                                                                                               (Gast Model:6AM-ARV-54)
