HX6AM IEC #72 Flange Mounting Air Motor,4 Vanes,Reversible Rotaty Vane Air Motor
Known industry wide for their rugged construction and reliability,Hongxin air motors are used in a variety of applications.
Lubricated air motors come in seven basic models up to 9.5hp(7kw);motor speeds are variable from 300 to 10,000rpm.
Choose from hub,foot,face,flange interfacee mountings and clockwise,counterclockwise or reversible rotations.
Four and eight vane models are also available.
Main Technical Parameters:
VANE AIR MOTOR | ||||||||||
Model |
Operation Data |
Maximum Torque |
||||||||
Power |
Torque |
Rotate Speed |
Air Consumption |
Rotate Speed |
Torque |
|||||
hp |
kW |
Nm |
lb.in |
rpm |
m³/h |
cfm |
rpm |
Nm |
lb.in |
|
HX1AM |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.60 |
HX1UP |
0.45 |
0.33 |
0.58 |
5.25 |
6000 |
47 |
27 |
500 |
0.68 |
6.00 |
HX2AM |
0.93 |
0.68 |
2.20 |
19.50 |
3000 |
49.5 |
30 |
350 |
3.05 |
26.10 |
HX4AM |
1.70 |
1.30 |
4.10 |
36.00 |
3000 |
132.5 |
78 |
300 |
6.3 |
56.00 |
HX6AM |
4.00 |
3.00 |
10.00 |
84.00 |
3000 |
228 |
128 |
300 |
13 |
115.00 |
HX8AM |
5.25 |
3.90 |
14.40 |
132.00 |
2500 |
293 |
175 |
300 |
21 |
185.00 |
HX16AM |
9.50 | 7.00 | 34 | 290 | 2000 | 475 | 275 | 300 | 43 | 372 |

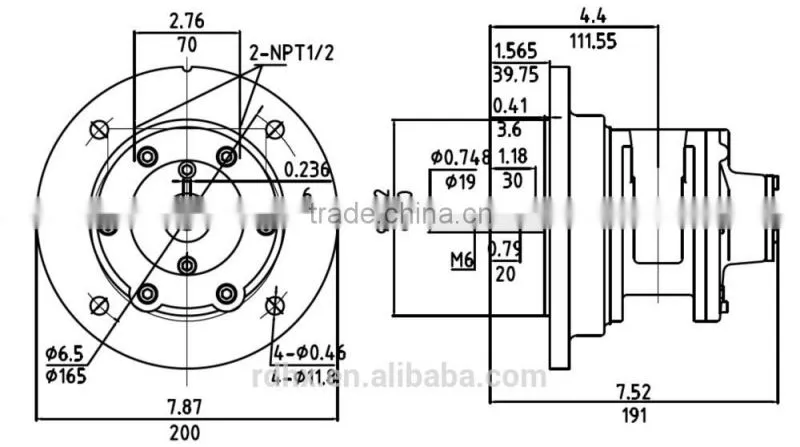

Outline Drawing for HX6AM-F130 Vane Type Air Motor:
Different Models Air Motor Photoes:
HX6AM-H (Gast Model:6AM-FRV-5A) Foot Mounting HX6AM-V (Gast Model:6AM-NRV-7A) Face Mounting
HX6AM-HV Foot & Face Mounting HX6AM-HVD Foot & Face Mounting,Two Shafts
HX6AM-F114.3 Flange Mounting HX6AM-H-F114.3 Foot & Flange Mounting HX6AM-F130 Flange Mounting
(Gast Model:6AM-NRV-11A) (Gast Model:6AM-ARV-54)

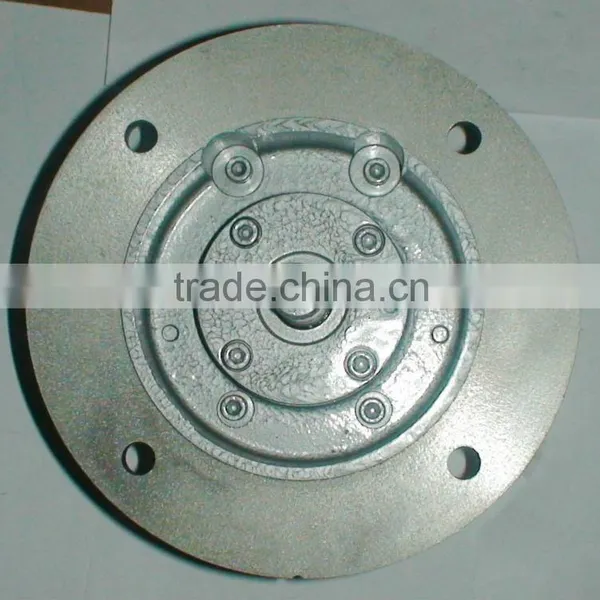

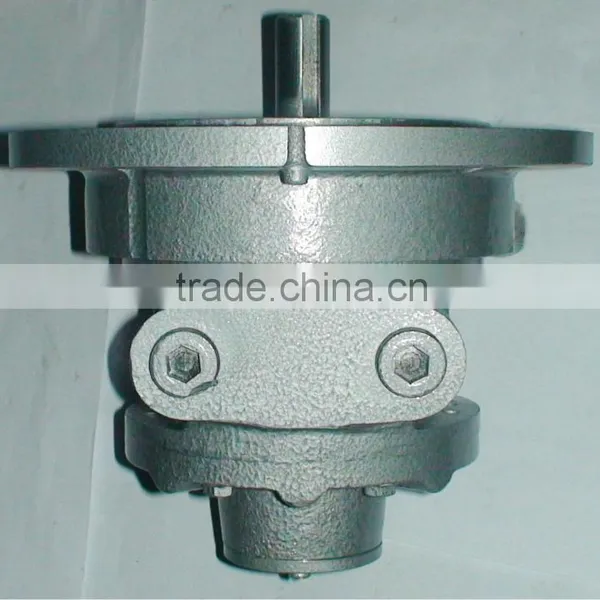

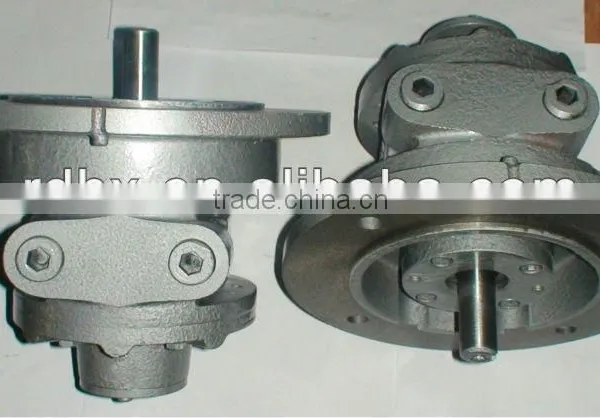

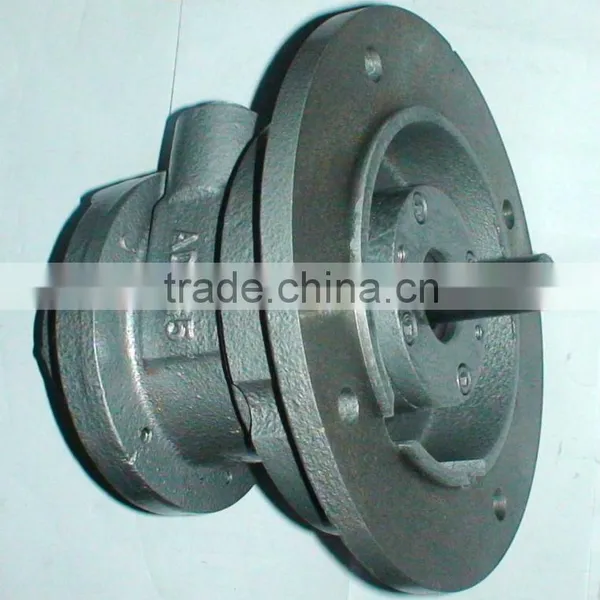

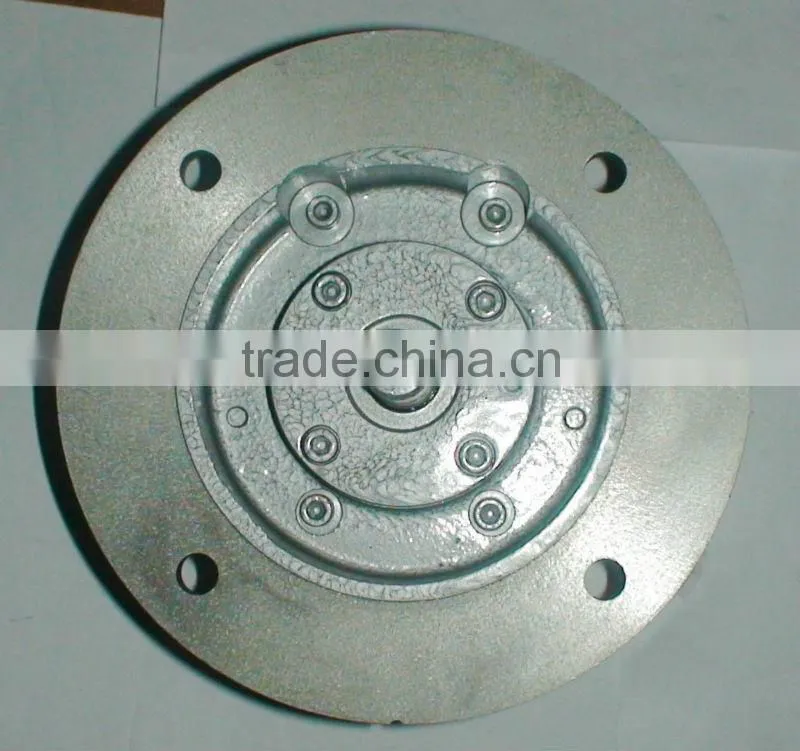

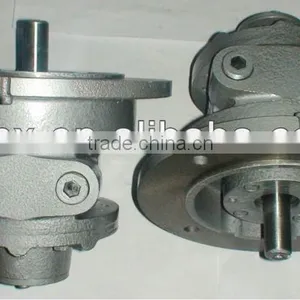

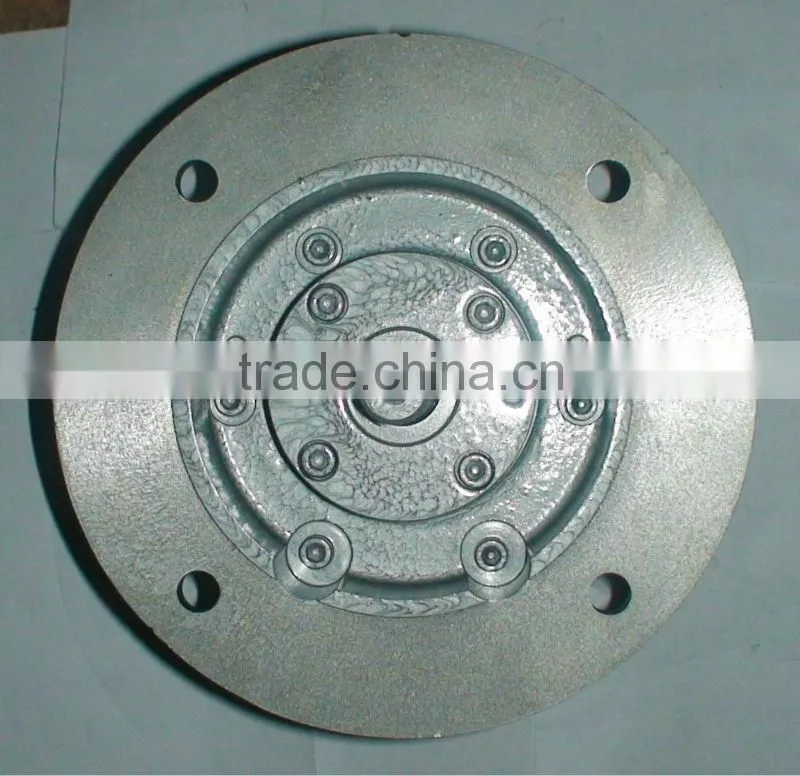

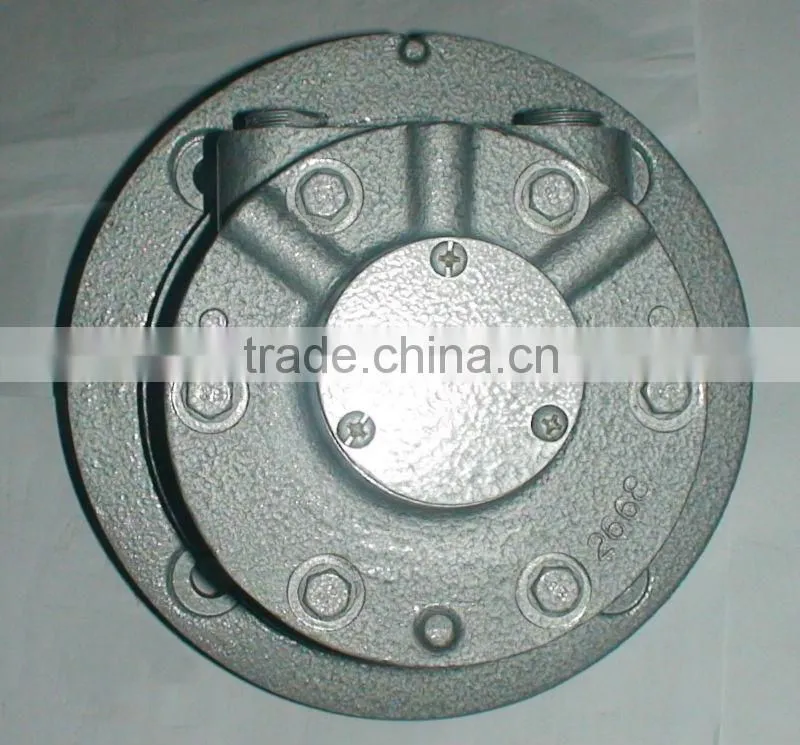

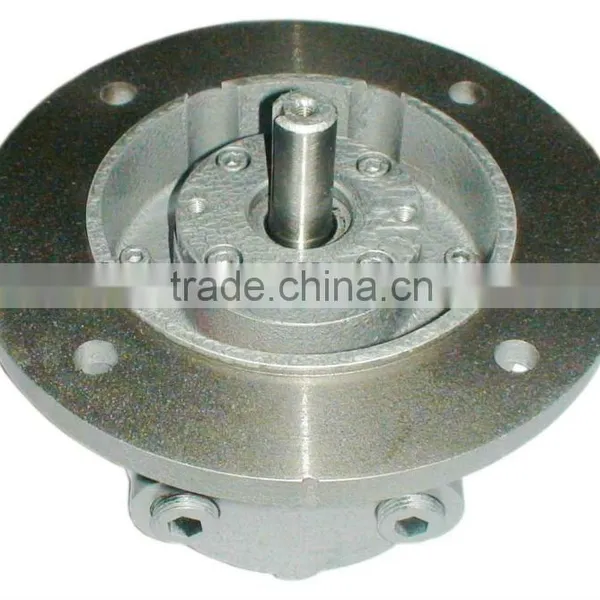

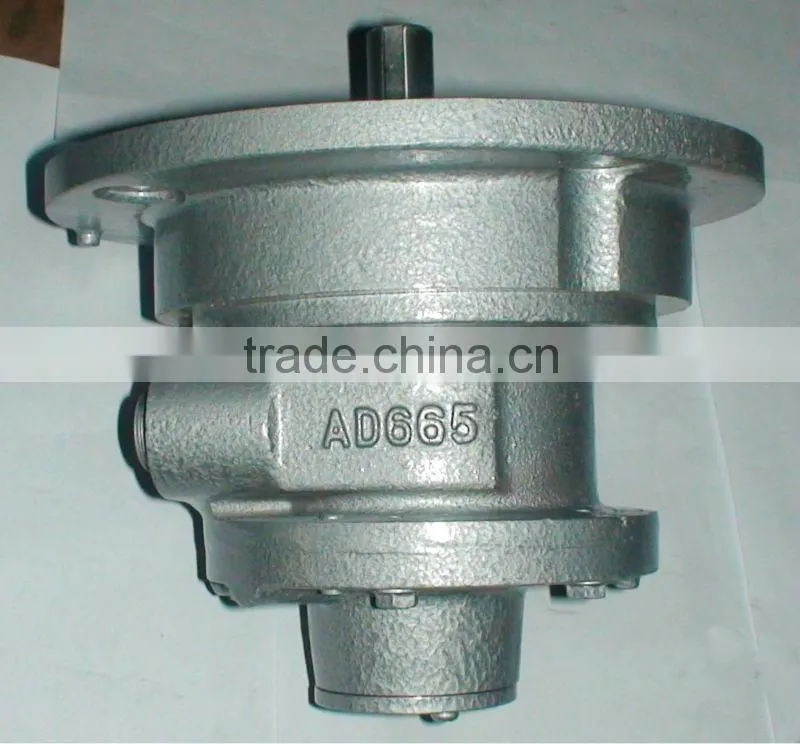

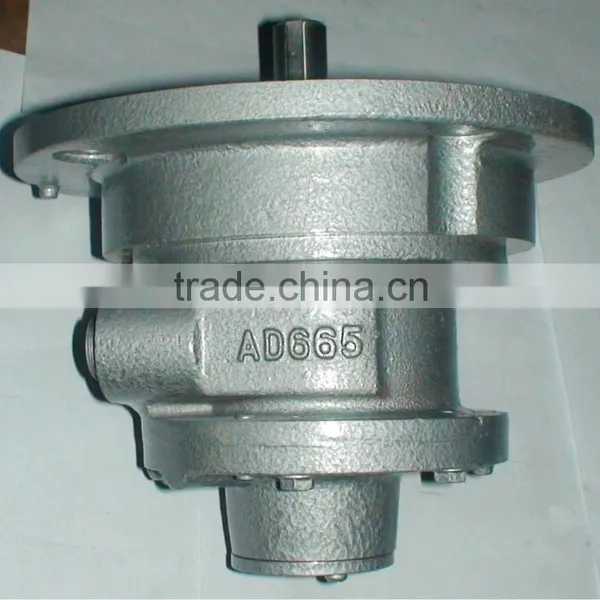

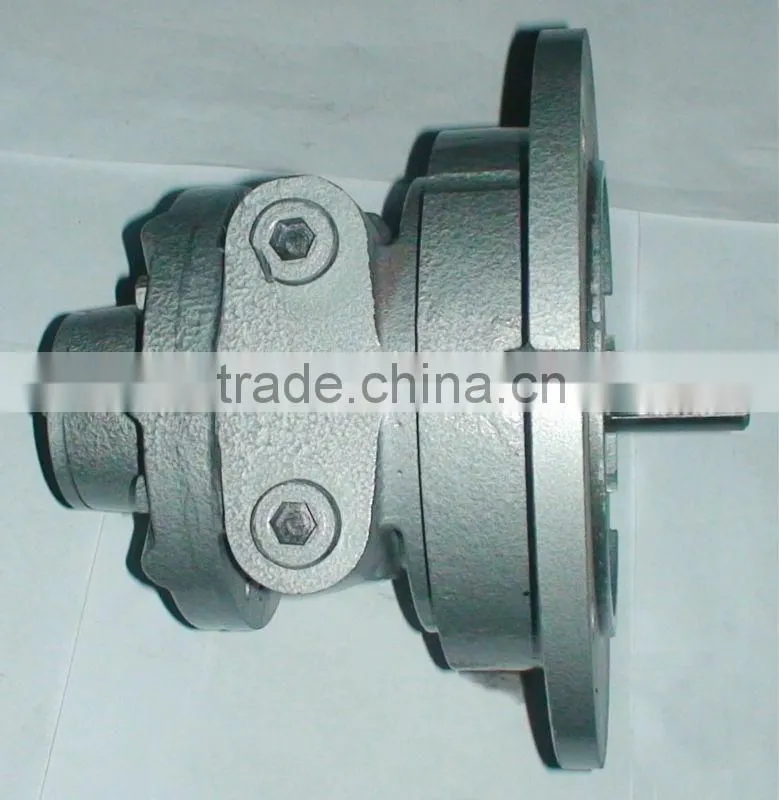

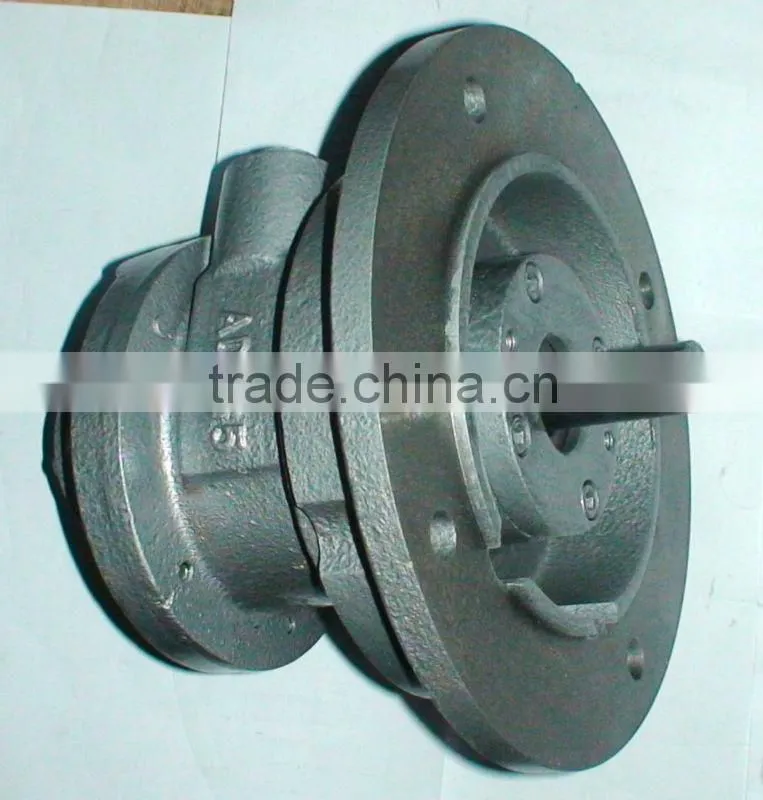

Air Motor Photo Show:
