Place of Origin Jiangsu, China
Brand Name HONGXIN
Model Number HX1AM-NCC
Type Other, Air Motor
Average Air Consumption 20.5 CFM
Maximum Torque 2.75 LB.IN
No-Load Speed 10,000 RPM

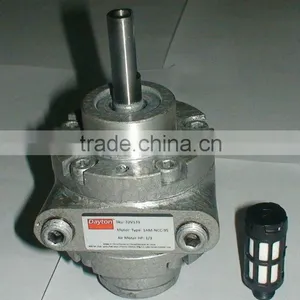

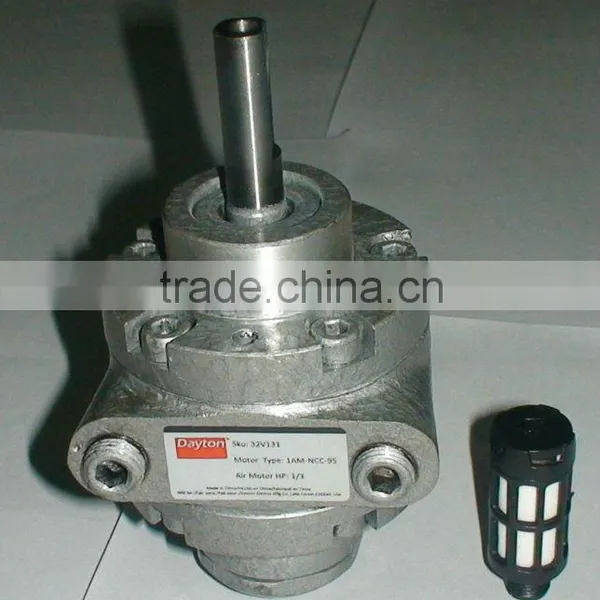

HX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand Dayton



Rotary Vane Air Motor



Known industry wide for their rugged construction and reliability, Hongxin air motor and air powered gearmotor are used in a variety of applications.



Lubricated air motor come in seven basic models up to 9.5hp (7kw); motor speeds are variable from 300 to 10,000rpm.



Oilless versions, which require absolutely no lubrication, come in three basic models ranging from 0.18 to 2.5hp (0.13 to 1.86kw) and with motor speeds up to 2,000rpm.



Choose from hub, foot, face, flange interface mountings and clockwise, counterclockwise or reversible rotations.



Four and eight vane models are also available.



Performance Overview



BLADE AIR MOTOR

Model

Operation Data

Maximum Torque

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

hp

kW

Nm

lb.in

rpm

m³/h

cfm

rpm

Nm

lb.in

HX1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.60

HX1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.00

HX2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.10

HX4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56.00

HX6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115.00

HX8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185.00

HX16AM

9.50

7.00

34.00

290.00

2000

475

275

300

43

372.00



*Four and eight vane models are also available.

Typical Applications

Mixing Turntables
Tension Devices
Fiberglass Choppers
Hose Reels
Hoists and Winches
Pharmaceutical Packaging
Food Packaging
Pump Drives
Conveyor Drives



Dimensions(Inches/mm)

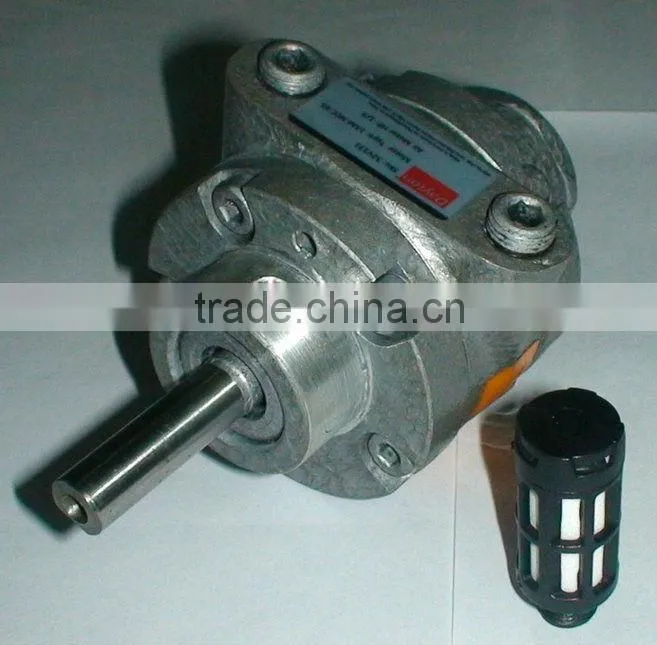

HX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand Dayton

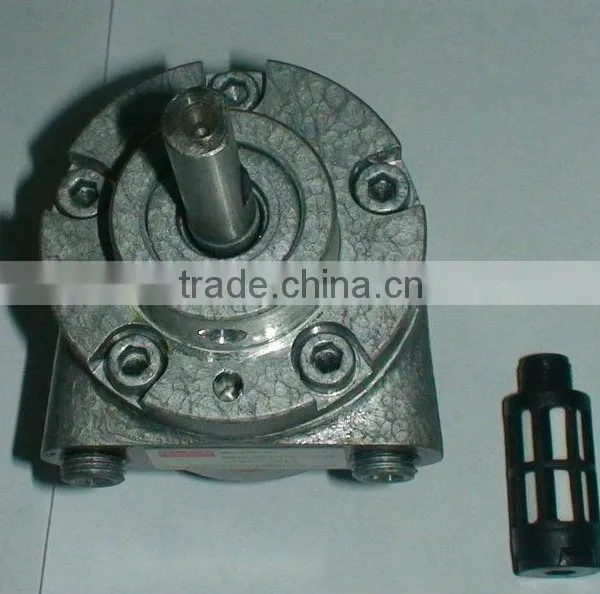

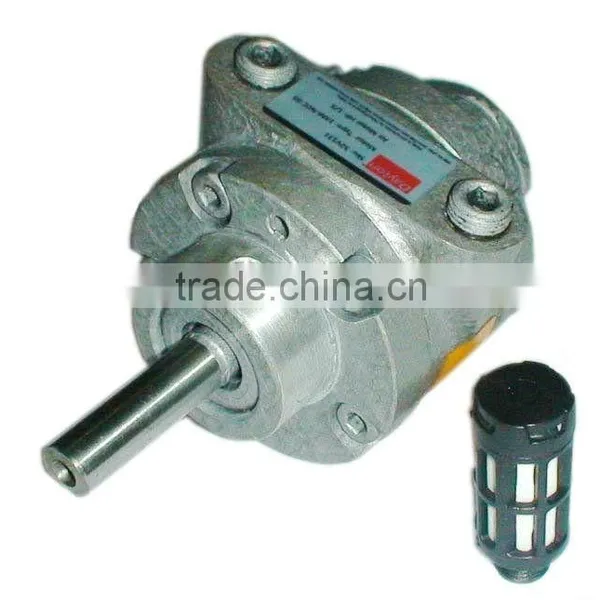

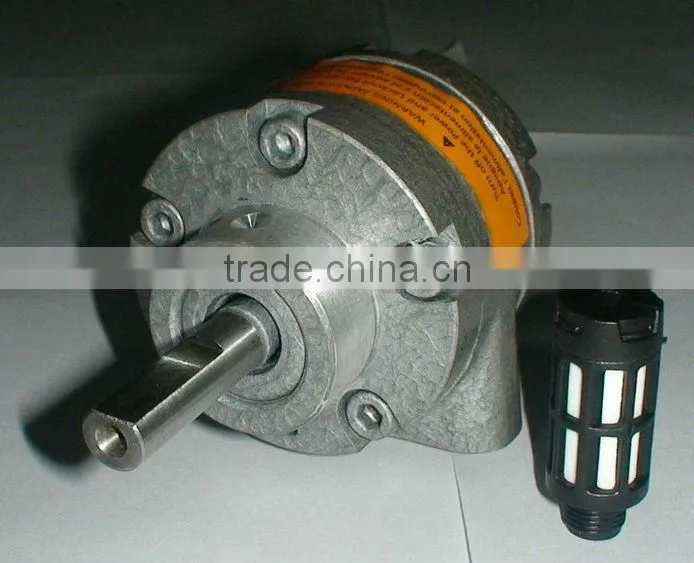

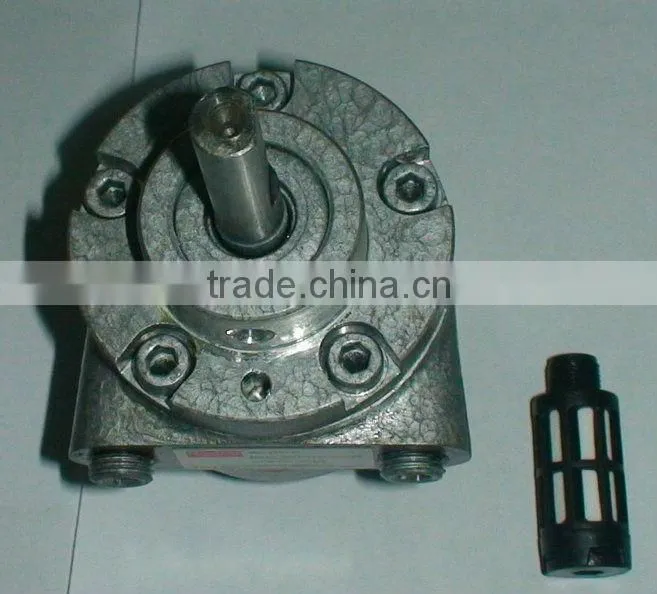

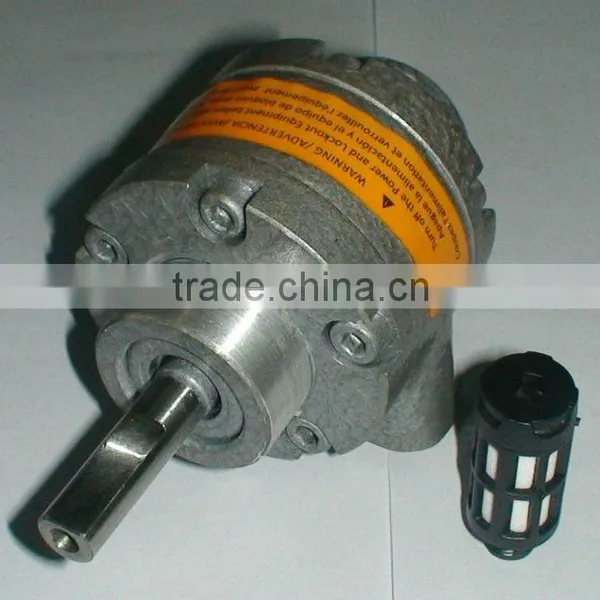

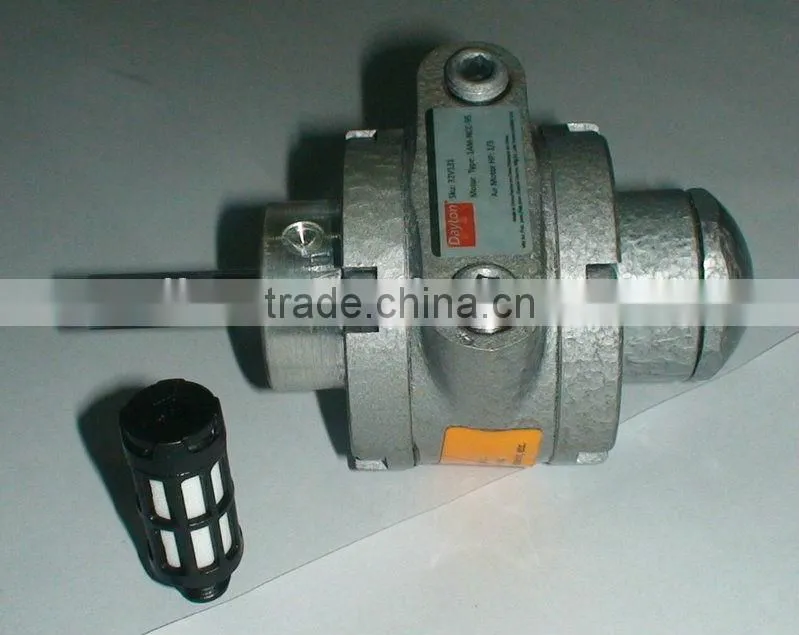

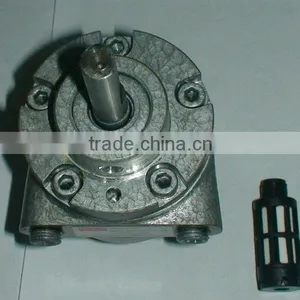

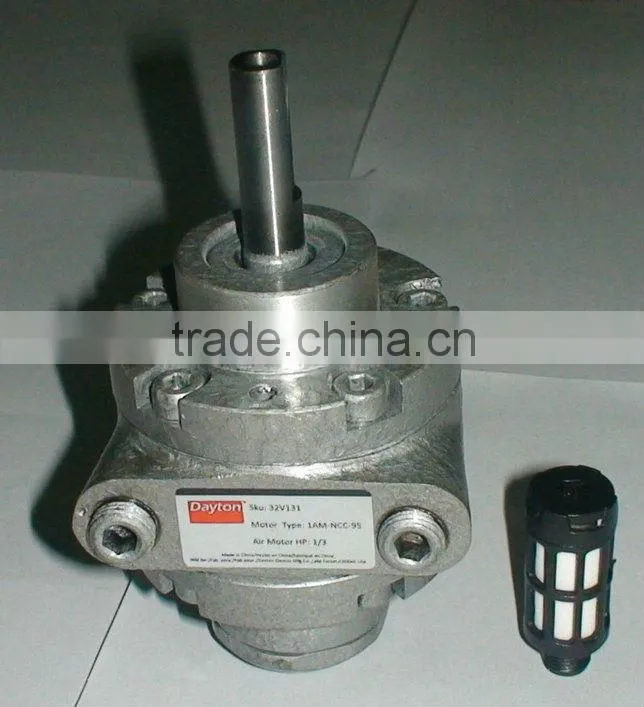

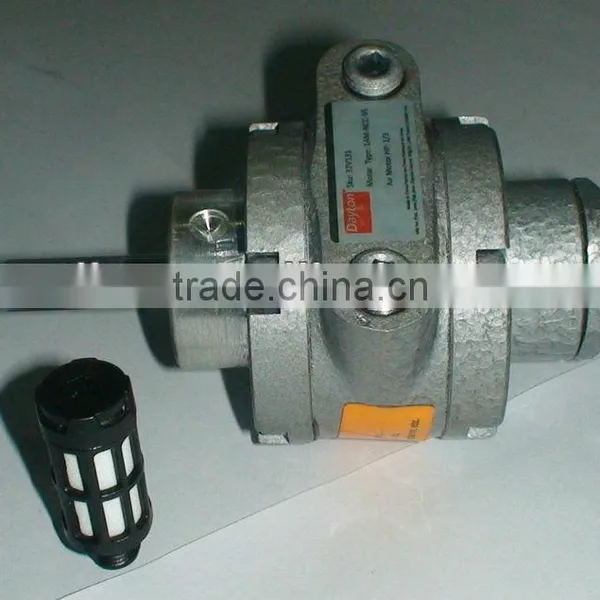

Pictures Show



HX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand DaytonHX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand DaytonHX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand Dayton

HX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand DaytonHX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand DaytonHX1AM-NCC 0.45HP Air Motor Rotary Vane Pneumatic Motor,Better than Electric Motor,OEM Brand Dayton



Troubleshooting Chart



Symptom

Possible Cause(s)

Corrective Action

Doesn’t Run.

1. Dirt or foreign material.

2. Internal rust.

3. Motor is jammed.

4. Worn Vanes

5. Bearing Failure

1. Inspect and wash.

2. Inspect and wash.

3. Disassemble and clean.

4. Inspect and replace.

5. Inspect and replace.

Runs Well Then Slows Down.

1. Restricted exhaust.

2. Motor requires cleaning.

3. Air source inadequate.

4. Air source far from motor.

5. The sealant is corrosion.

1. Inspect and repair.

2. Disassembly and clean

3. Check air resource.

4. Adjust air resource.

5. Inspect and replace.

Low Torque.

1. Dirt or foreign material.

2. Low air pressure.

3. Motor requires cleaning.

4. Worn out bearings.

5. Worn air motor vanes.

6. The sealant is corrosion.

1. Disassemble and clean.

2. Increase pressure.

3. Disassembly and clean

4. Inspect and replace.

5. Inspect and replace.

6. Inspect and replace.

Low Speed.

1. Dirt or foreign material present.

2. Internal rust.

3. Low air pressure.

4. Air source restricted.

5. Restricted exhaust.

6. Motor is jammed.

7. Air source CFM inadequate.

8. Air source far from motor.

9. Worn Vanes

1. Disassemble and clean.

2. Inspect and wash.

3. Increase pressure.

4. Check air hose.

5. Inspect and repair.

6. Disassembly and clean.

7. Check air resource.

8. Adjust air resource.

9. Inspect and replace.
