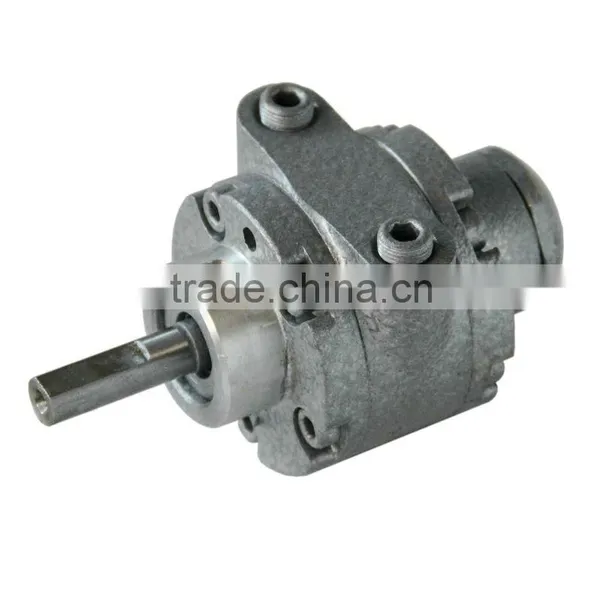

HX1AM-NCC 0.45HP Air Rotary Motors

HX1AM-NCC 0.45HP Air Rotary Motors thumbnail-1
HX1AM-NCC 0.45HP Air Rotary Motors photo-1
US$ 100 - 200 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Hongxin
Model Number:
HX1AM-NCC
Contact Supplier Request Quote Chat Now
Rudong Hongxin Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Hongxin
Model Number HX1AM-NCC
Type Other, Air Rotary Motors
Average Air Consumption 20.5 CFM
Maximum Torque 2.75 LB.IN
No-Load Speed 10,000 RPM

Specifications

Air Rotary Motors
4 Vanes,Reversible
Compact and portable
Minimum maintenance
Will not burn out

HX1AM-NCC 0.45HP Air Rotary Motors



Rotary Vane Air Motors



Known industry wide for their rugged construction and reliability,Hongxin Air Motors are used in a variety of applications.

Lubricated Air Motors come in seven basic models up to 9.5HP (7.1KW),motor speeds are variable from 300 to 10,000 RPM.Choose from hub,foot,face,NEMA C-Flange or Metric D series interface mountings and clockwise,counterclockwise or reversible rotations.



With compressed air as actuation medium, rotary vane air motors make use of the expansion of compressed air to convert

pressure energy into mechanical energy. They can be regulated easily for speed and torque, and can stop and reverse very quickly. They are commonly used in many industrial and spark-prohibited applications.



Performance Overview



BLADE AIR MOTOR

Model

Operation Data

Maximum Torque

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

hp

kW

Nm

lb.in

rpm

m³/h

cfm

rpm

Nm

lb.in

HX1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.60

HX1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.00

HX2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.10

HX4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56.00

HX6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115.00

HX8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185.00

HX16AM

9.50

7.00

34.00

290.00

2000

475

275

300

43

372.00





*Four and eight vane models are also available.



Typical Applications



Mixing Turntables

Tension Devices

Fiberglass Choppers

Hose Reels

Hoists and Winches

Pharmaceutical Packaging

Food Packaging

Pump Drives

Conveyor Drives

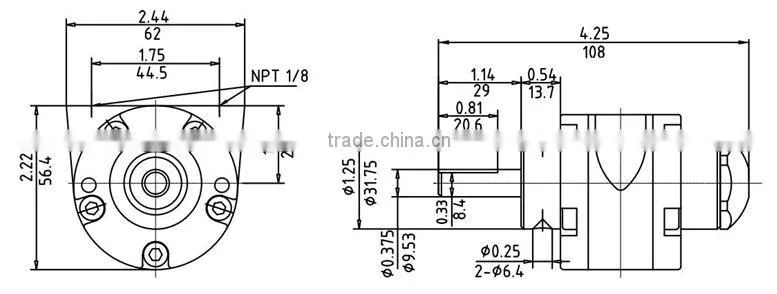

Dimensions(Inches/mm)



HX1AM-NCC 0.45HP Air Rotary Motors



Troubleshooting Chart



Symptom

Possible Cause(s)

Corrective Action

Doesn’t Run.

1. Dirt or foreign material.

2. Internal rust.

3. Motor is jammed.

4. Worn Vanes

5. Bearing Failure

1. Inspect and wash.

2. Inspect and wash.

3. Disassemble and clean.

4. Inspect and replace.

5. Inspect and replace.

Runs Well Then Slows Down.

1. Restricted exhaust.

2. Motor requires cleaning.

3. Air source inadequate.

4. Air source far from motor.

5. The sealant is corrosion.

1. Inspect and repair.

2. Disassembly and clean

3. Check air resource.

4. Adjust air resource.

5. Inspect and replace.

Low Torque.

1. Dirt or foreign material.

2. Low air pressure.

3. Motor requires cleaning.

4. Worn out bearings.

5. Worn air motor vanes.

6. The sealant is corrosion.

1. Disassemble and clean.

2. Increase pressure.

3. Disassembly and clean

4. Inspect and replace.

5. Inspect and replace.

6. Inspect and replace.

Low Speed.

1. Dirt or foreign material present.

2. Internal rust.

3. Low air pressure.

4. Air source restricted.

5. Restricted exhaust.

6. Motor is jammed.

7. Air source CFM inadequate.

8. Air source far from motor.

9. Worn Vanes

1. Disassemble and clean.

2. Inspect and wash.

3. Increase pressure.

4. Check air hose.

5. Inspect and repair.

6. Disassembly and clean.

7. Check air resource.

8. Adjust air resource.

9. Inspect and replace.
