HX8AM-H 5.25hp Foot Mounting Pneumatic Motor,Rotary Vane Pneumatic Motor
Known industry wide for their rugged construction and reliability,Hongxin air motors are used in a variety of applications.
Lubricated air motors come in seven basic models up to 9.5hp(7kw);motor speeds are variable from 300 to 10,000rpm.
Choose from hub,foot,face,flange interfacee mountings and clockwise,counterclockwise or reversible rotations.
Four and eight vane models are also available.
Why you should look into a Hongxin Air Motor?
Variable speed
Nonelectrical sparking
Instantly reversible
Cool running
Compact and portable
Minimum maintenance
Will not burn out
Low price
Operate in all positions
Low shock starts
Self sealing vanes
Mounting flexibility
Four vane or eight vane
Long life accessories
Typical Applications
Mixing equipment
Conveyor drives
Pump drives
Food packaging
Pharmaceutical packaging
Hoists and winches
Hose reels
Fiberglass choppers
Tension devices
Turntables
Performance Overview
VANE AIR MOTOR | ||||||||||
Model |
Operation Data |
Maximum Torque |
||||||||
Power |
Torque |
Rotate Speed |
Air Consumption |
Rotate Speed |
Torque |
|||||
hp |
kW |
Nm |
lb.in |
rpm |
m³/h |
cfm |
rpm |
Nm |
lb.in |
|
HX1AM |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.60 |
HX1UP |
0.45 |
0.33 |
0.58 |
5.25 |
6000 |
47 |
27 |
500 |
0.68 |
6.00 |
HX2AM |
0.93 |
0.68 |
2.20 |
19.50 |
3000 |
49.5 |
30 |
350 |
3.05 |
26.10 |
HX4AM |
1.70 |
1.30 |
4.10 |
36.00 |
3000 |
132.5 |
78 |
300 |
6.3 |
56.00 |
HX6AM |
4.00 |
3.00 |
10.00 |
84.00 |
3000 |
228 |
128 |
300 |
13 |
115.00 |
HX8AM |
5.25 |
3.90 |
14.40 |
132.00 |
2500 |
293 |
175 |
300 |
21 |
185.00 |
HX16AM |
9.50 |
7.00 | 34 | 290 | 2000 | 475 | 275 | 300 | 43 | 372 |

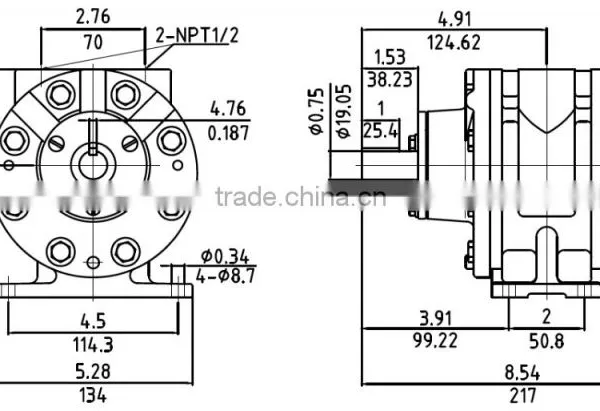

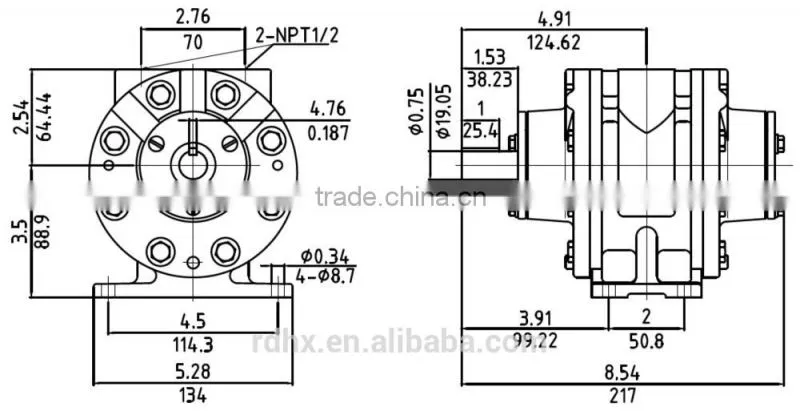

Drawing For HONGXIN BRAND HX8AM-H Vane Type Pneumatic Motor:
Photoes & Drawings

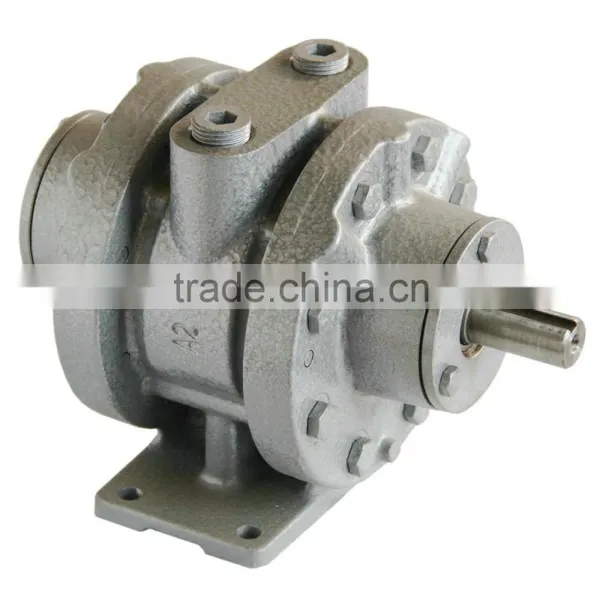

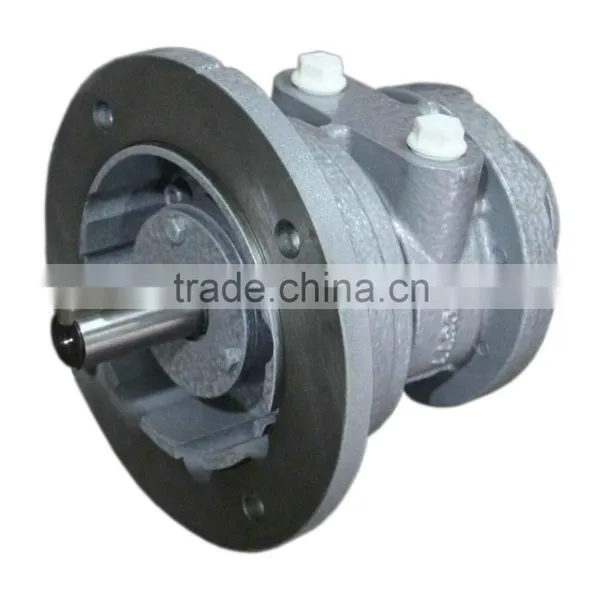

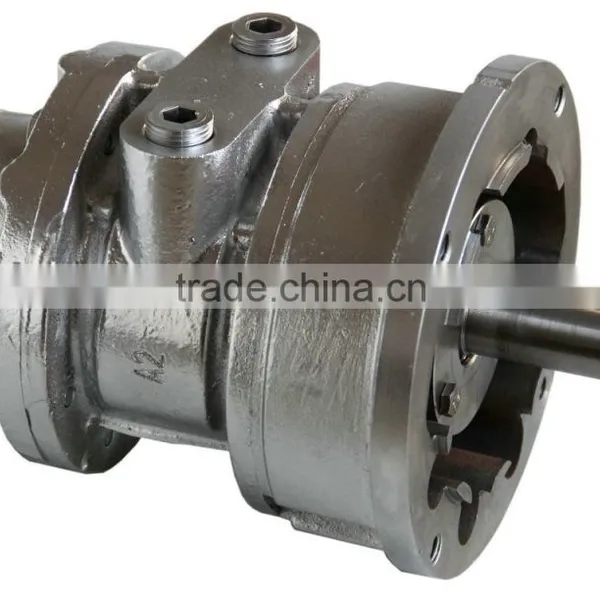

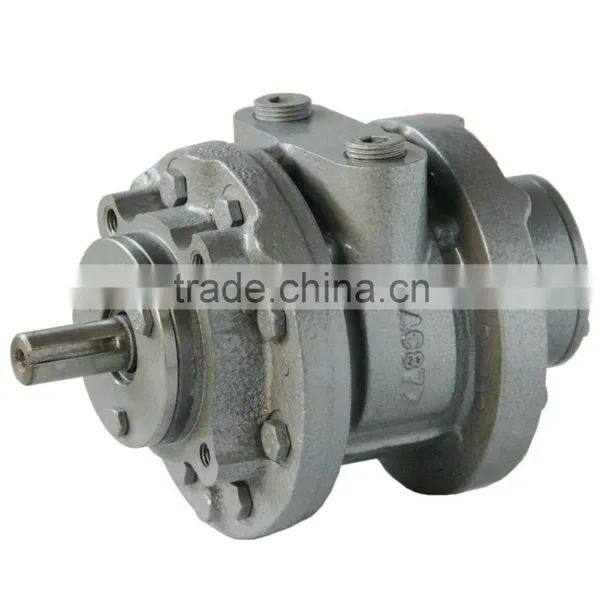

HX8AM-H(GAST MODEL 8AM-FRV-2B) HX8AM-V(GAST MODEL 8AM-NRV-5B) HX8AM-HV
FOOT MOUNTING FACE MOUNTING FOOT & FACE MOUNTING
HX8AM-F114.3(GAST MODEL 8AM-NRV-28A) HX8AM-F130(GAST MODEL 8AM-ARV-70)
NEMA 145TC MOUNTING IEC #72 MOUNTING
