Oscillating Granulator
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
STOMWOOD
Model Number:
YDK
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wet Granulating MachineUS$ 10,000 - 20,000MOQ: 1 Set -
Dry Granulator MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Dry Granulator MachineUS$ 20,000 - 25,000MOQ: 1 Set
-
Fast Granule Modification MachineUS$ 20,000 - 25,000MOQ: 1 Set
-
High Effective Mixing and Granulating MachineUS$ 20,000 - 25,000MOQ: 1 Set
Place of Origin
Liaoning, China
Brand Name
STOMWOOD
Model Number
YDK
Application
Granules
Type
Granulator
After-sales Service Provided
Engineers available to service machinery overseas
Features:

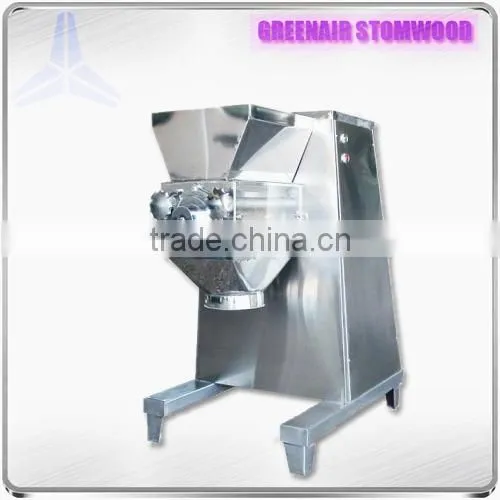

YDK-60 YDK90 YDK160 oscillating granulator is a kind of small oscillating granulator used in laboratories. It is used to make powder substance into the needed granular particles or press dried powder substance into granular particles. It is suitable for making or developing tablets in the laboratories.
Features of Oscillating Granulator:
Our oscillating granulator's screen stencil is easy to assemble and dismantle and its tightness can be adjusted within a particular range. The seven-angle roller is easy to assemble and dismantle and clean. The whole machine can work stably thanks to the mechanical transmission agent closed totally inside the machine and the lubricant system. The speed of the rotating seven-angle roller is adjustable. The oscillating granulator is designed and made according to the requirements of the medicine production GMP. The entire outside of the machines is sealed with stainless high-quality materials. The appearance of the whole machine is clean and beautiful, in particular that of the screen stencil made of wirework or stainless web, which drastically increases the particles' quality and economic returns.
Our oscillating granulator's screen stencil is easy to assemble and dismantle and its tightness can be adjusted within a particular range. The seven-angle roller is easy to assemble and dismantle and clean. The whole machine can work stably thanks to the mechanical transmission agent closed totally inside the machine and the lubricant system. The speed of the rotating seven-angle roller is adjustable. The oscillating granulator is designed and made according to the requirements of the medicine production GMP. The entire outside of the machines is sealed with stainless high-quality materials. The appearance of the whole machine is clean and beautiful, in particular that of the screen stencil made of wirework or stainless web, which drastically increases the particles' quality and economic returns.
Technical Parameter of Oscillating Granulator
Model |
YDK60 |
YDK90 |
YDK160 |
Roller Dia. (mm) |
60 |
90 |
160 |
Capacity (kg/h) |
20-30 |
50-100 |
200-300 |
Oscillation angle |
>360 |
>360 |
>360 |
Oscillation frequency (times/minute) |
46 |
50 |
55 |
Motor power (KW) |
0.25 |
0.55 |
2.2 |
Weight (kg) |
55 |
150 |
330 |
Overall size (mm) |
460×550×570 |
750×460×840 |
970×560×1240 |
