Specifications
Digital Inclinometer (High Temperature)1,Fast and high efficiency
2,Easy to carry
3,Easy to operate
4,Good precision
DSHZ-1B Digital Inclinometer (High Temperature)
Function:
The instrument is a new inclination measurement instrument in high precision. It is used to determine dip angle and azimuth angle of vertical borehole or directional borehole. It can also be used to determine dip angle, azimuth angle, tool face angle and depth of borehole accurately.
It is suitable to determine inclination of borehole, which is more than 54 mm in diameter, and up to 2500 in depth, in the non-magnetic area. It can be widely used in engineering, hydrology, coal field, oil field, and geology.

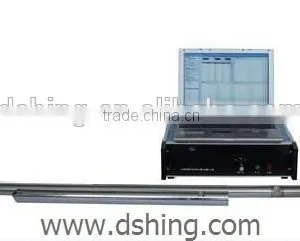

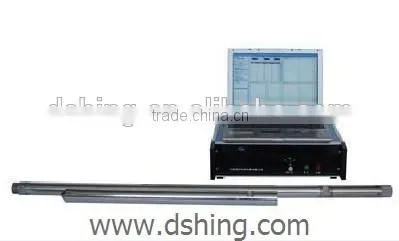

It is composed of laptop (optional), controlling case and inclinometer probe. It adopts test data coded long distance transmission techniques, so it can transmit test data through cable accurately and reliably;
It combines a high performance sensor with digital signal processing techniques, so test data is in high precision and good stability; It can upload test data to a laptop through DSHS232 serial port, so it can show test data, plane diagram, sectional diagram, side projection diagram clearly and intuitively, and it can save test data; if connect to a printer, it can print out test data, plane diagram, sectional diagram, side projection diagram, and space trace diagram.
It can determine borehole depth during inclination measurement; it is easy to be operated and it is suitable to be used at the determination field.
Technical Parameters:
1. Inclination measurement depth: ≤2500 m;
2. Measurement range and accuracy:
(1) Dip angle: 0~50°; accuracy is ±0.2°;
(2) Azimuth angle: 0~360°;
If dip angle is at 1~3°, measurement accuracy is ±5°;
If dip angle is at 3~50°, measurement accuracy is ±4°;
(3) Tool face angle: 0~360°; measurement accuracy is ±4°;
3. Measurement range: at fixed points; depth interval and quantity of measurement points can be preset at random;
4. Power supply: AC 220 V±10%, 50 Hz;
5. Working environment of controlling case:
(1) Temperature: -10°C~50°C;
(2) Relative humidity: ≤85%;
6. Working environment of inclinometer probe:
(1) Temperature: 0°C~85°C;
(2) Pressure endured: ≤25MPa;
7. Inclinometer probe:
(1) Size: Φ54×1400 mm;
(2) Weight: 15 kg;
