Specifications
DLSB-G1010 low temperature cycling high pressure pump for AASoling capacity600-1860W
2.bath volume10L
ure1.2MPa

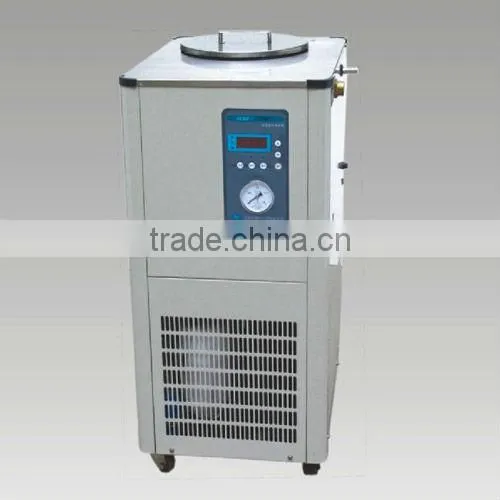

2013 Latest DLSB-G1010 low temperature cycling high pressure pump especially for AAS
I. CHARACTERISTICS OF USES:
Providing cooling water for complex and narrow systems. Suitable for cooling largescale precious instruments like electron probe x-ray microscopical analyzer, electron microscope, etc.
♦Compressor adopts products made in Japan.
♦Imported vane pump can guarantee flow and stable pressure.
♦Adjust pressure according to clients’ requirements.
♦Equipped with pressure gauge, thus it’s convenient to observe pressure directly.
II. Technical data:
Model |
DLSB-G1010 |
|
Temperature range(°C) |
-10~Room temp |
|
Cooling capacity(W) |
600~1860 |
|
Temperature stability(°C) |
±2 |
|
Function of circulating pump |
Power (W) |
250 |
Pressure(MPa) |
1.2 |
|
Flow(L/min) |
≥7 |
|
Bath volume(L) |
10 |
|
Ambient temperature(°C) |
5~25 |
|
Power supply(V/Hz) |
220/50 |
|
Overall Power(W) |
1000 |
|
Dimensions(mm) |
490L×360W×800H |
|
III. Introduction of Imported Vane Pump:
1. Imported vane pump, which can adjust the pressure.
2. Guarantee the need of experiment and stable pressure.
Notes: Must use pure cooling medium to avoid jam of circulating pump or abrasion of valve, make underpressure and damage the circulating pump.

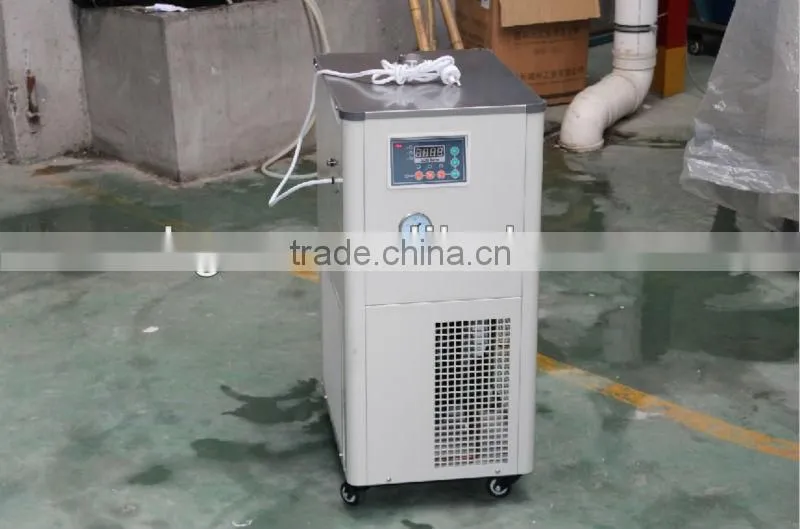

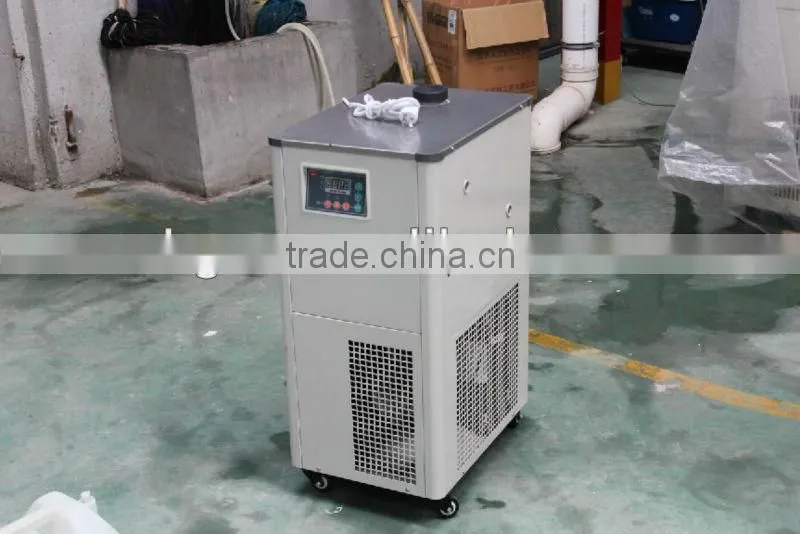

IV.Dails Show of DLSB-G1010:
V. ISO9001:2008 Certificate:
VI. Welcome to Our Factory:
