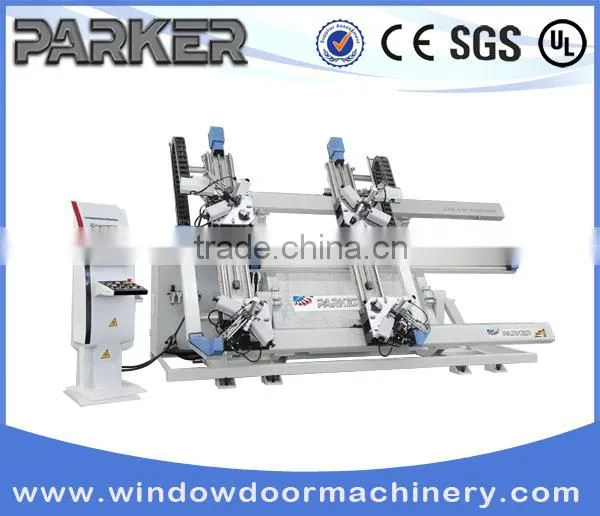

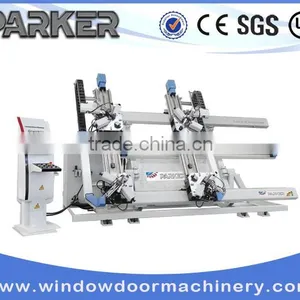

Aluminum Door-window Four Corner Automatic Crimping Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Parker
Model Number:
LJJZ4-CNC-S1800*3000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Door-window Automatic Feeding DoubleNegotiableMOQ: 1 Set -
Aluminum Hydraulic Crimping MachineNegotiableMOQ: 1 Set
-
Aluminium Window Door Double Mitre Cutting Saw Machine--PARKERNegotiableMOQ: 1 Unit
-
Aluminium & PVC Profile Window Door Double Head Cutting Machine-Saw King (PARKER MACHINERY)NegotiableMOQ: 1 Unit
-
ON SALE- UPVC & Aluminium Window and Door Profile Frame Single Head Any Angle Cutting Saw Machine --PARKER MachineryNegotiableMOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
Parker
Model Number
LJJZ4-CNC-S1800*3000
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.CNC2.Four corner crimping at one time
3.hydraulic power
4.lifting inner location
5.Servo control, screw guide

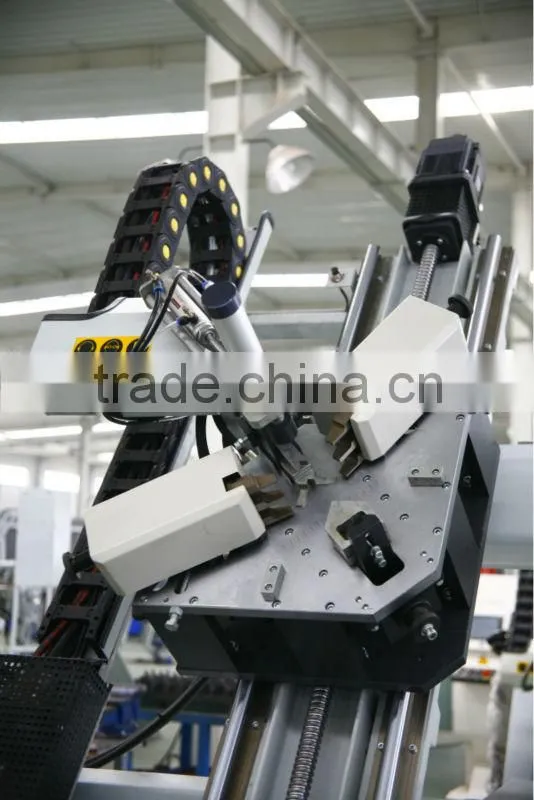

Aluminum door-window Four Corner Automatic Crimping Machine
Product Description
LJJZ4-CNC-S1800*3000
- CNC system for automatic and accurate location.
- Four corner crimping at one time, maximizing working efficiency.
- It can process the frame or sash with the minimum dimension of 550*550mm, or 500*500 mm by manual adjustment.
- Various profiles in a wide range can be processed by the adjustable cutters of 3mm 5mm and 8 mm.
- Plunger type large-scale hydraulic station, Two-stage hydraulic power supply—feeding action under low pressure and crimping under high pressure, thus largely optimizing the crimping quality.

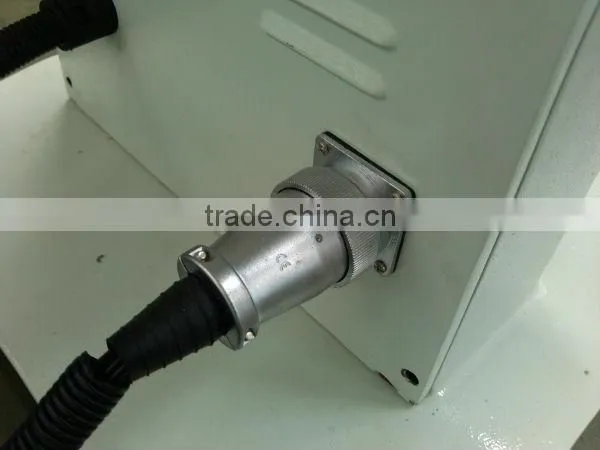

- The electrical cabinet separately placed meanwhile well connected by the circular connector, easy to monitor the working state, and convenient to link or disconnect with the working parts,safe and stable.
- Servo control system, screw guide in transmission and flat square guide rail adopted, guaranteeing the smooth movement and then the horizontal moving precision of the heads.
- Clamping device can be adjusted back and forth, convenient to operate.

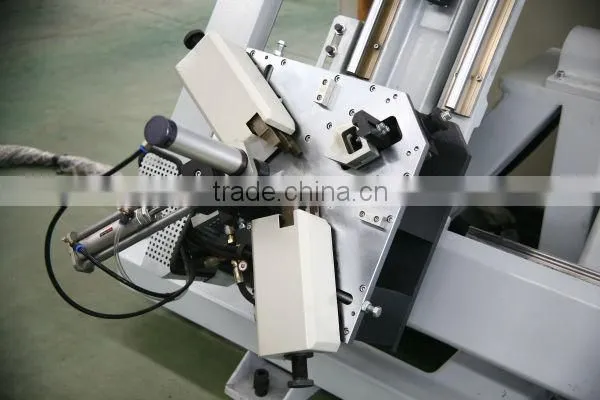

- Cutters adjustable to suit different profiles.
- The lifting inner location, easy to take the finished frame.
- The supporting rack welded by 8mm steel pipe ensures high processing accuracy and long service life
