HYRF Thermal Laminating Machine

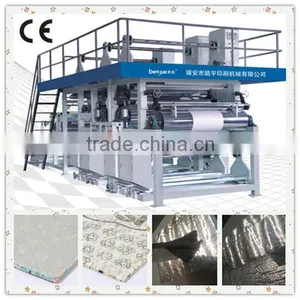

HYRF Thermal Laminating Machine thumbnail-1
HYRF Thermal Laminating Machine thumbnail-2

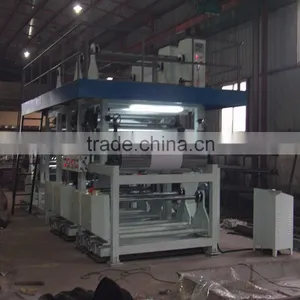

HYRF Thermal Laminating Machine thumbnail-3
HYRF Thermal Laminating Machine photo-1

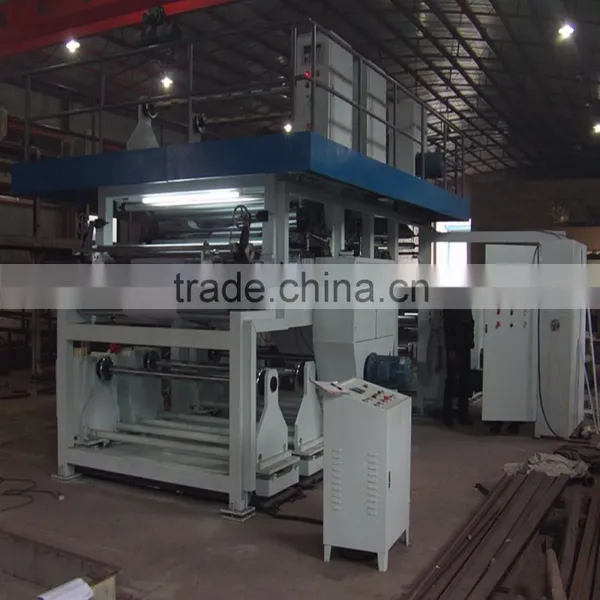

HYRF Thermal Laminating Machine photo-2

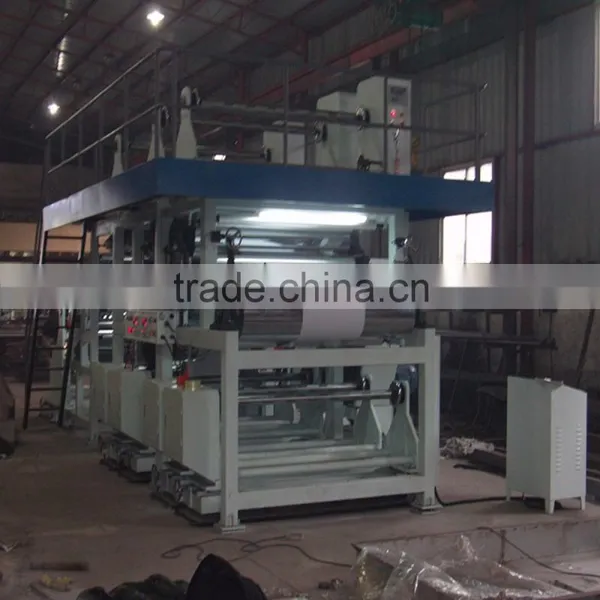

HYRF Thermal Laminating Machine photo-3
US$ 50,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Food, Medical
Packaging Type:
Case
Contact Supplier Request Quote Chat Now
Ruian Haoyu Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Apparel, Beverage, Chemical, Food, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 35KW
Place of Origin Zhejiang, China
Brand Name BENYUE
Model Number HYRF 1500
Dimension(L*W*H) 9.3m*3.04m*3.2m
Weight 8TONS
Certification CE/ISO9001
After-sales Service Provided Engineers available to service machinery overseas

RF 1500 THERMAL LAMINATING MACHINE



parameter

  1. type:RF-1500
  2. Work effective width:1500mm
  3. Guide wheel width and diameter: 80mm×1550mm
  4. Work line speed:1-50m/min,with length and speed controller
  5. (low pressure PE) Unwinding max. Diameter: single station 600mm(two groups)
  6. (non woven)unwinding max. diameter:single stationφ1200mm (two groups)
  7. Heated roller heating method:conduction oil heating (conduction oil furnace is provided by customer)
  8. Overall machine total power: approx 13KW 3phase 415V 50HZ 50ampere ,AC current
  9. Machine dimension: L*W*H (9.3m*3.04m*3.2m)  need approx 1pc 40 feet container
  10. Machine weight : approx 8tons
  11. Unwinding air shaft adopt safety clock
  12. Machine color is blue with milk-white
  13. Machine is produced by diagram
  14. In the back and front of the machine, there is urgent stop switch button.
  15. Overall machine motor speed is synchronous.
  16. 16.Control box 1pc (SHANGHAI RITTAL)



(PE)UNWINDING UNIT(UP)

  1. Unwinding frame: single station, location is up of the machine
  2. Unwinding max. Diameter:600 mm.
  3. Unwinding shaft adopt safety clock,expend air shaft 3inchφ74mm,air shaft load 1000kg can work normally,1pc
  4. Base material paper core inner diameter 3inch 76mm.
  5. Base material tension adopt 10kg magnetism powder brake, 1set
  6. Tension control adopt  60MTA  closed loop auto-tension controller with pressure sensor, 1set
  7. Base material register adopt manual type, adjust range ±100mm.
  8. unwinder frame, under pan, webguide active frame by profiled bar..



(non woven)unwinding unit (UP)

1.Unwinding frame: single station, location is in the top of the machine,the stair in the side of machine.

2.Unwinding max. Diameter:1200mm.

3.Unwinding shaft adopt safety clock, expand air shaft 3inch 74mm,expand air shaft 1000kg,1PC

4.Paper core inner diameter 3inch76mm.

5.Base material tension adopt  20kg magnetism powder brake, 1set

6.Tension control adopt 60MTA  closed loop auto tension controller, 1set

7.Webguide of base material adopt manual type, adjust range ±100mm.

8 unwinder frame, under pan, webguide active frame adopt profiled bar.



Foam transfer transition frame unit

1 foam transfer by guide roller transition, guide roller diameter 80*1550mm, guide wheel is made of aluminum foil

2 foam traction roller diameter 160*1550mm, traction steel roller surface plating hard chromium, accurate grinding process.

3 traction rubber press roller diameter 100*1550mm, rubber is made of NBR, hardness 60-70

4 rubber press roller clutch by pneumatic execute, cylinder diameter 63*50mm stroke, air pressure adjust freely



(PE) unwinding unit (DOWN)

1 Unwinding frame: single station wheel push type.it is installed in the bottom of machine

2 Unwinding max. diameterφ600 mm.

3 Unwinding shaft adopt safety clock, expand air shaft 3inch74mm,it can work normally when load 1000kg,1PC

4 Base material paper inner diameter 3inchφ76mm.

5 Base material tension adopt 10kg magnetism powder brake, 1set

6 Tension control adopt 60MTA  closed loop auto tension controller with pressure sensor, 1set

7 Base material adopt manual type adjust method, adjust range±100mm.

8 unwinder frame, under pan, webguide active frame adopt profiled bar.



(non woven) unwinding unit (DOWN)

1.Unwinding: single station by cart feeding type, load bottom of the production conveyor panel

2.Unwinding max. Diameter 1200mm.

3 Unwinding shaft adopt safety clock, expand air shaft 3inch 74mm,it can work normally when load 1000kg,1pc

4 Base material paper inner diameter 3inch 76mm.

5 Base material tension adopt 20kg magnetism powder brake, 1set

6 Tension control adopt 60MTA  closed loop auto tension controller with pressure sensor, 1set

7 base material webguide by manual, adjust range +/-100mm

8 unwinder frame , underpan , webguide active frame made of profiled bar.



thermo laminating unit(2 groups)

  1. Laminating steel roller diameter 450mm×1600mm,surface plating teflon treatment, center shaft diameter 90mm,material adopt medium carbon steel, it is hot treatment, 2pcs (extra 1pc)
  2. Steel roller heating adopt conduction oil cycle heating, steel roller double layer, steel roller conduction oil cycle adopt oil rotation head, conduction oil boiler should be provided by buyer.
  3. Steel roller surface temperature 50°C-280°C can be adjusted,the temperature is controlled automatic (the temperature is up to the furnace)
  4. Laminating rubber press roller diameterφ450mm×1600mm,rubber is made of imported silica gel, hardness is 68°-72°,2pcs (extra 1pc)
  5. laminating rubber press roller cooling by water recycle type, with 1.5inch water rotation head, 1pair/pc
  6. Rubber press roller fit press adopt pneumatic execute, cylinder diameterφ100mm×125mm stroke,air pressure is adjusted freely, max. Pressure is 60kg/cm,fit press method is live piece type, two roller distance is 0-75mm, the limit location will be 1mm distance
  7. Steel roller drive adopt chain, chain wheel drive method
  8. Laminating steel roller drive motor power 5.5kw with cycloid reducer, 2set
  9. Motor driver 5.5kw inverter by PLC control. 2set
  10. Middle transition guide wheel diameterφ80mm×1550mm.



production conveyor panel unit

1 with transfer transition frame, length is 1.5m,transition guide roller dia.80*1550mm, laminating steel roller drive motor power 1.5kw, motor driver 1.5kw inverter by PLC control., 1set (the power is provided from customer)

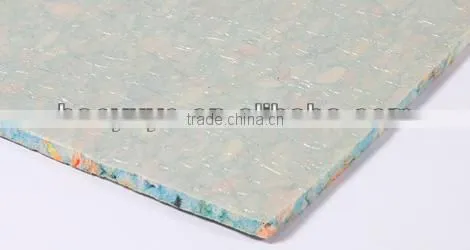

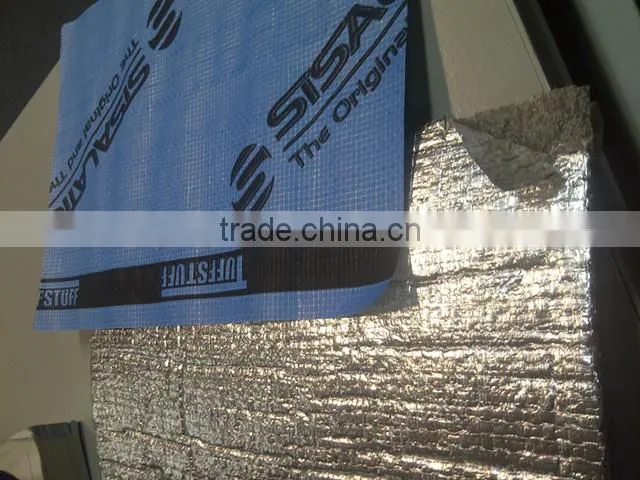

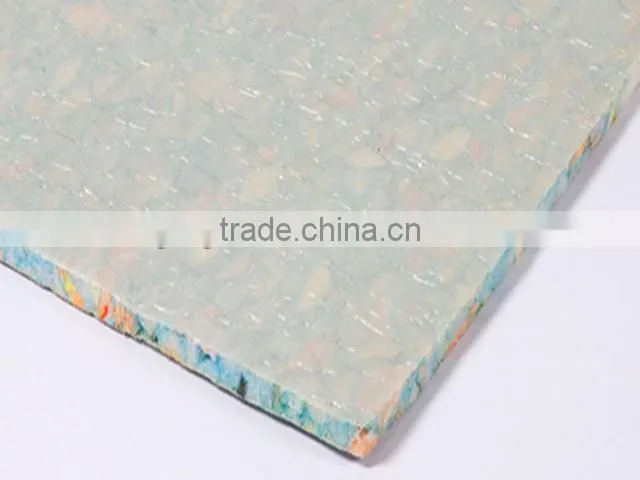

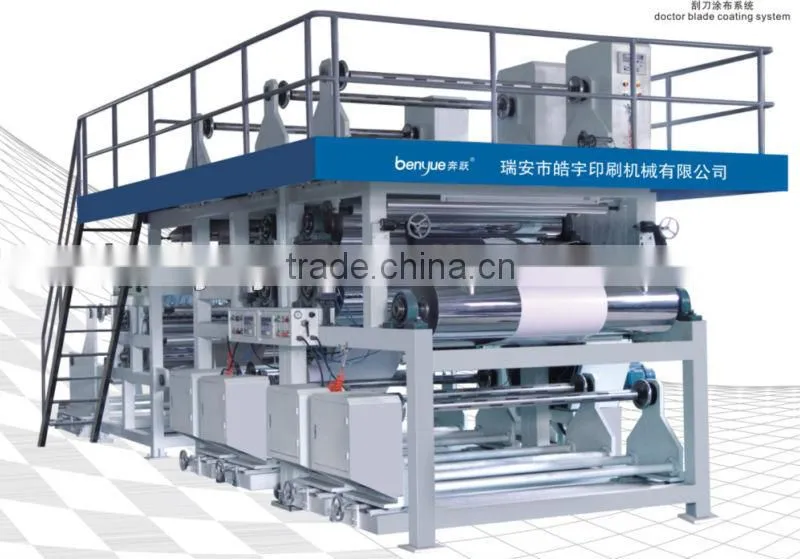

MACHINE PHOTO

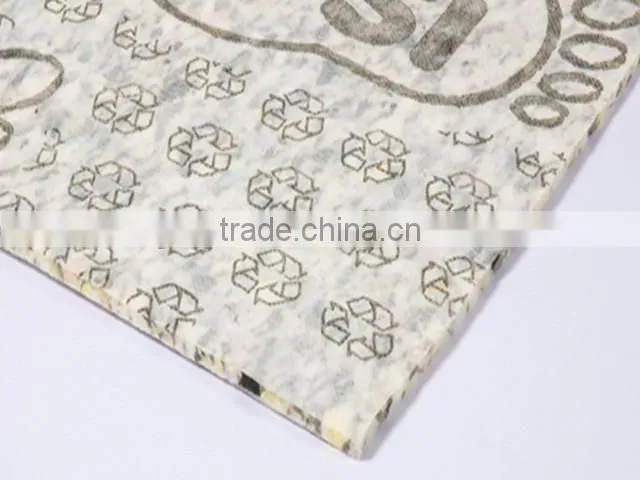

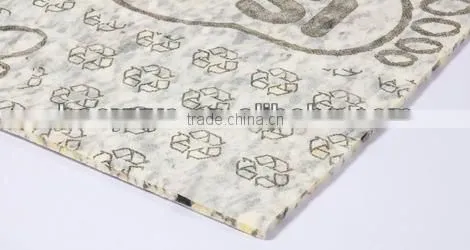

HYRF thermal Laminating MachineHYRF thermal Laminating MachineHYRF thermal Laminating MachineHYRF thermal Laminating MachineHYRF thermal Laminating MachineHYRF thermal Laminating Machine

OUR SERVICE FOR RF1500 Thermal laminating Machine



1. Purchase Service

HAOYU COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .



2. Shipping Service

HAOYU COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .

HAOYU COMPNAY copperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.



3.Installation Services

Installation Services are available with all HAOYU Company machines.HAOYU Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets ,food ,hotel cost.ETC



4.Clients Training Services

HAOYU Company advise The buyer could send own technican come to HAOYU factory to learn how to operate machines.HAOYU Company technician will teach and train the lerners hand by hand till he can operate machine by himself.

Obviouslly, Traning within Installation period is acceptable.



5.After Sales Service

HAOYU Company machines guarantee time is one year.

Many easy broken spare parts will be prepared in the tool box together with machines.

Any parts broken ,Just a pictures or a videos.

The new free parts will reach within 3-7 Express working days .
