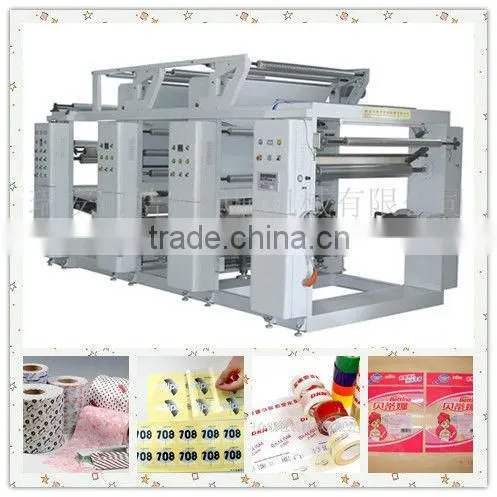

Help CenterYA-C1300 Serious 2color 4units Rotogravure Printing Machine
Related Products
-
YS-A Series 8color 10units Computerized High Speed Rotogravure Printing MachineUS$ 30,000 - 200,000MOQ: 1 Set -
YS-A 6color 9units Computerized Control High Speed Rotogravure Printing MachineUS$ 30,000 - 200,000MOQ: 1 Set
-
YS-ZF800 ROTOGRAVURE PRINTING MACHINENegotiableMOQ: 1
-
YS-ZF Series Gravure Printing MachineNegotiableMOQ: 1
-
YS-AF1300type Rotogravure Printing MachineNegotiableMOQ: 1
Specifications
it is suitable for any reel form packing material printingfunction
The machine is suitable for glassine paper, BOPP, PET,PVC,PE,NYLON,aluminum foil and paper etc with roll type multicolor continuous printing, it is widely used for high quality printing production.
main parameter
type |
YS-C1300 |
Printing width |
1300mm |
Color units |
2color 4units |
Printing plate dia. |
100-300mm |
registration precision |
Vertical ±0.20mm transverse ±0.20mm |
Color unit distance |
1400mm |
Printing speed |
10-60m/min |
Machine speed |
80m/min |
Total power |
60kw |
overall machine weight |
Approx 6500kg |
dimension |
4800*2700*2600mm |
machine spec.
1 main drive system, speed-adjustment motor, fast and low speed adjustment control
2 adopt combine type, to get single side multi color printing continuous printing in one time
3 rewinding adopt double torque motor, unwinding adopt magnetism powder brake
4 oil ink adopt ink pump auto-cycle, air shaft type load and unload shaft
5 drying system adopt both drying tunnel, sealing type up and down adopt axial fan, hot air supply and each unit cooling, 50m/min drying, oven temperature adjustment auto-control, with length meter function
6 blade can be adjustable, press roller fit press adopt pneumatic execute, air pressure is adjusted freely, ink pan adopt machine manual lift,
7 high precision gear drive box, adopt proprietary technology
8 rewinding and unwinding is rotation double station frame, to realize non-stop splicing system
PRODUCTION PHOTO
MACHINE PARTS
OUR FACTOY
5 OUR SERVICE
1. Purchase Service
HAOYU COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .
2. Shipping Service
HAOYU COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
HAOYU COMPNAY copperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all HAOYU Company machines.HAOYU Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets ,food ,hotel cost.visa charge,and 100USD/DAY/PERSON as salary.
4.Clients Training Services
HAOYU Company advise The buyer could send own technican come to HAOYU factory to learn how to operate machines.HAOYU Company technician will teach and train the lerners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
HAOYU Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken ,Just a pictures or a videos.
The new free parts will reach within 3-7 Express working days .
SHOULD ANY FURTHER INFORMATION BE REQUIRED ,PLEASE FEEL FREE TO CONTACT WITH US
