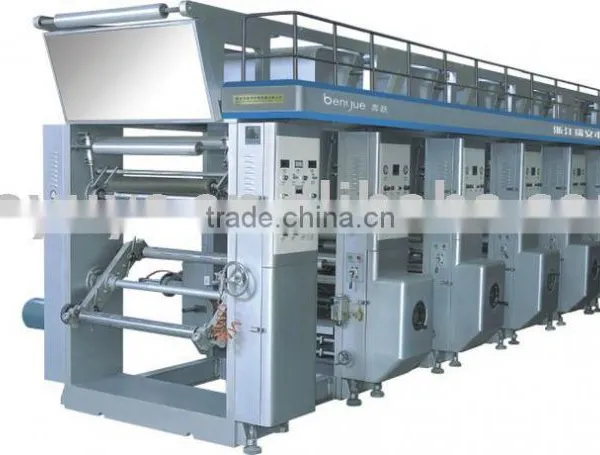

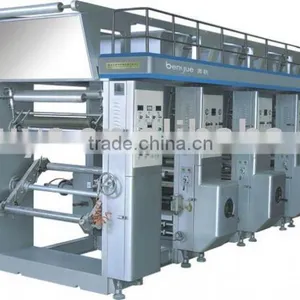

Help CenterYS-ZF800 ROTOGRAVURE PRINTING MACHINE
Related Products
-
YS-ZF Series Gravure Printing MachineNegotiableMOQ: 1 -
YS-AF1300type Rotogravure Printing MachineNegotiableMOQ: 1
-
YS-ZF1500 Middle Speed Rotogravure Printing MachineNegotiableMOQ: 1
-
YS-GE High-speed Rotogravure Printing MachineNegotiableMOQ: 1
-
YA-1000 6 Group 4 Color Printing MachineNegotiableMOQ: 1
Specifications
This ROTOGRAVURE PRINTING MACHINE suitable for glass paper,BOPP, PET, PVC, PE,nylon,aluminum foil and paper like this kindFunction
This YS-ZF800 ROTOGRAVURE PRINTING MACHINE is suitable for glass paper,BOPP, PET, PVC, PE,nylon,aluminum foil and paper like this kind with good printing performance reel-fed type material for multicolor series printing.use widely for high grade printing production.
Main parameter
type |
YS-ZF800 |
YS-ZF1000 |
printing width |
800mm |
1000mm |
width of material |
820mm |
1020mm |
printing speed |
10-90m/min |
10-90m/min |
machine speed |
110m/min |
110m/min |
inwinding and unwinding diameter |
Ø600mm |
Ø600mm |
printing roller diameter |
Ø120-300mm |
Ø120-300mm |
core inner diameter |
Ø76mm |
Ø76mm |
overprint precision |
±0.15mm |
±0.15mm |
heating power of oven |
45kw |
50kw |
total power |
55kw |
58kw |
machine weight |
11200kg |
12400kg |
dimension |
10800x2050x2500mm |
10800x2250x2500mm |
Characteric:
1 machine is permutation and combination type
2 shaftless pneumatic wimble tip installation plate, chang conveniently and time saving
3 still balance aluminum alloy guide roller, obturation type oven, resource saving and dry fast, auto-control temperature system.
4 unwinding, input traction adopt auto-tension controller and magnetism powder brake control
5 inwinding, output traction adopt vector frequency conversion control, running steady.
6 blade moving adopt pneumatic back press type
7 oil ink circulation system, air expand type load and unload shaft.
8 high precision gear transfer box, adopt patent technology.
9 inwinding and unwinding rotation adopt double station to show no need to stop machine to link the material.
10 automatic rectifying equipment control by PLC with static image to test.
Requirement
1 this machine can add color or reduce color and inverse printing by customers requirement
2 shaft or shaftless installation plate type choose by customer (600-1600mm)
