Henan Baichy VSI Vertical Shaft Impact Crusher Machine

Henan Baichy VSI Vertical Shaft Impact Crusher Machine photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Impact Crusher, impact crusher
Application:
highway, railway, construction project, concrete mixing station etc
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao China main ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Impact Crusher, impact crusher
Application highway, railway, construction project, concrete mixing station etc
Motor Type AC Motor
Power(W) 180000
Capacity(t/h) 200-260
Place of Origin Henan, China
Brand Name BAICHY
Model Number VSI-8518
Weight 13.5t, 9.8-27.5t
Certification ISO9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Henan Baichy VSI Vertical Shaft Impact Crusher Machine
1) ISO9001
2) Secondary crushing
3)sand making,stone reshaping machine

Henan Baichy VSI Vertical Shaft Impact Crusher Machine



1 Brief Introduction

Based on Chinese present working conditions, VSIsand making machine is the latest product of our company which absorbed the advanced technology from German.Lower cost and good performance decide that this kind of equipment is a preferred choice for artificial sand making or stone reshaping.



2 Main Technical Parameter



Model   VSI-8518 VSI-8518 VSI-9526 VSI-1140 VSI-1145
Capacity

Cascade and Center

Feeding

120-180  200-260  300-380  450-520  490-600

Center Feeding

60-90  100-130  150-190  225-260  250-310
Feeding Size(mm) Soft Material <35   <40   <45     <50   <50
Hard Material <30   <35   <40     <45   <45

Rotation Speed (r/min)


1700-1890  1520-1690  1360-1510  1180-1310  1180-1280

Power of the DoubleMotors(kw)




110-150  180-220  264-320  400-440  440-520

Overall dimension L×W×H(m)



3.7x2.15

x2.1

 4.14x2.28

x2.425

 4.56x2.447

   x2.278

 5x2.7x3.3

 5.1x2.79

   x3.32

Weight (t)  9.8  13.5  16.8  25.6  27.5
Power  380V:50HZ
Vibrating Sensor




Inspection Scope:  0.1-20mm/s,it can be adjusted continuously









Hydraulic

LubricationStation

Power of Double Oil Pump

2x0.31kw
Safety

Double oil pumps make sure

supply of oil with;Stop automatically without

oil flow or oil pressure; Water cooled;

Heating start the motor in winter.

Overall Dimension(mm) 820x520x1270
Power of Oil-box Heater  2kw







3 Performance Features

3.1 Simple structure, low running costs. Stone by stone crushing principle of wear.

3.2 Hihg crushing rate, energy saving

3.3 With crushing, coarse grinding function

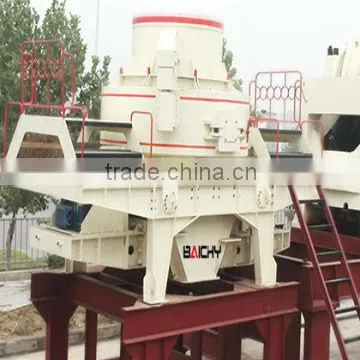

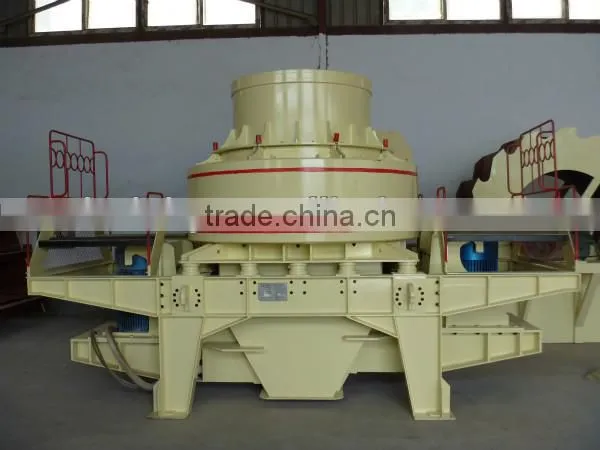

4 Details of VSI crusher

Henan Baichy VSI Vertical Shaft Impact Crusher Machine

Henan Baichy VSI Vertical Shaft Impact Crusher Machine

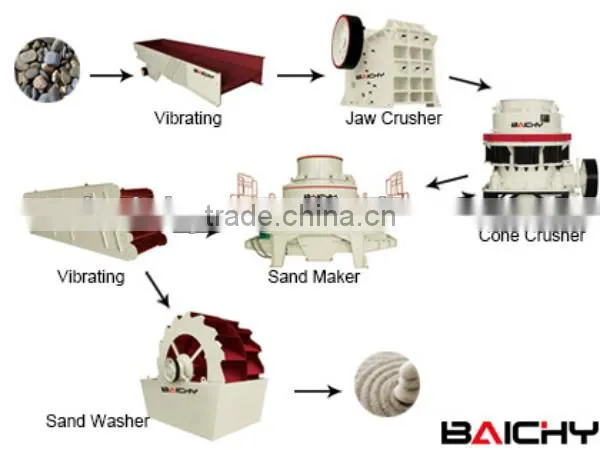

5 Sand Making Line

Henan Baichy VSI Vertical Shaft Impact Crusher Machine

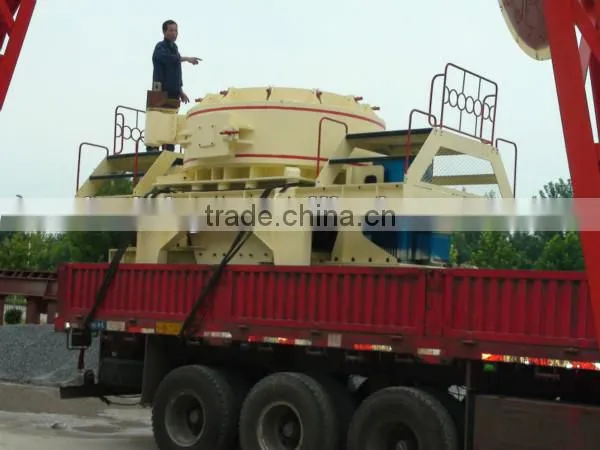

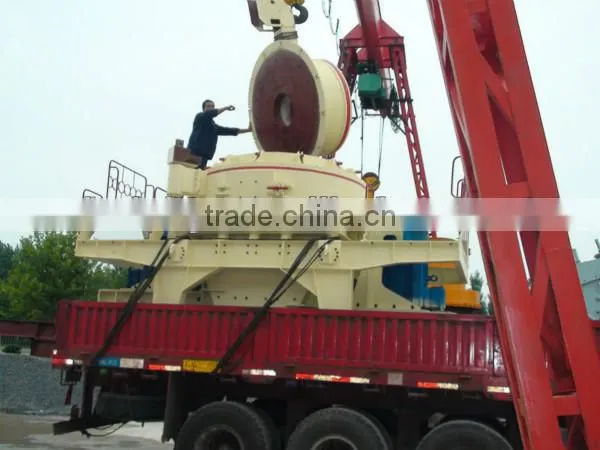

6 Our Delivery

Henan Baichy VSI Vertical Shaft Impact Crusher MachineHenan Baichy VSI Vertical Shaft Impact Crusher Machine



7 Our Company

Henan Baichy VSI Vertical Shaft Impact Crusher MachineHenan Baichy VSI Vertical Shaft Impact Crusher Machine



 Henan Baichy VSI Vertical Shaft Impact Crusher Machine
