Specifications
High gain;Aluminum alloy framework;Full day working;Optimized dimension;Vertical or Horizontal Mounting way;Factory Price.Antenna Manufacturer 2.4GHz 16Bi Aluminium High Performance Yagi Antenna WiFi Dipole

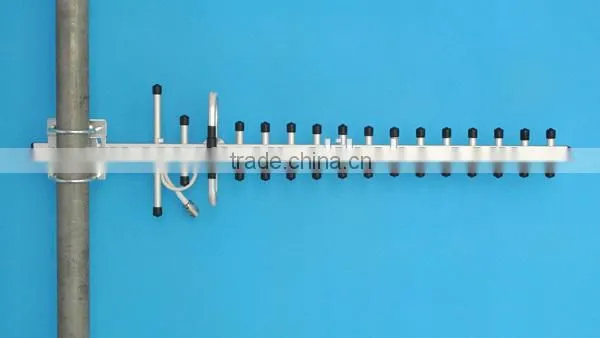

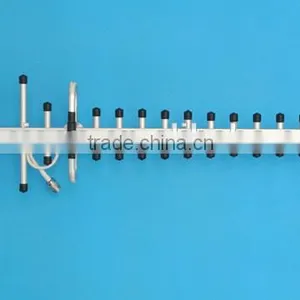

2.4 GHz 16 dBi Yagi Antenna
Factory price
Solid aluminium elements
Heavy-duty aluminium boom
Included Mounting kits
2400-2483MHz Directional Yagi Antenna
AMXY-2400-16
Feature:
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal
Application:
2.4GHz WLAN system
Point-to-point,point-to-multipoint system
Wireless bridging,client termination antenna
Dipole Antenna:
Dipole antenna is one of the most fundamental antenna that still be widely used today. A single half-wave dipole can work independently, or work as a parabolic antenna's feeder. Several half-wave dipoles can combine to become antenna array.
A dipole antenna with two arms of same length is named symmetrical dipole. If each arm is equal to 1/4 of the wave length and total length is 1/2 of the wave length, such dipole is called half-wave symmetrical dipole.
In addition, if a full wave length dipole is folded as a rectangular shape, such long, narrow rectangular frame is called folded dipole. Note if a folded dipole is also half wave long, it is called half-wave folded dipole.
|
AMXY-2400-16 Electrical Specifications | |
Frequency range(MHz) |
2400-2483 |
Bandwidth(MHz) |
83 |
Gain(dBi) |
16 |
Element |
16 |
Half-power beam width(°) |
H:35 V:30 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
RP-SMA male or others |
Mechanical Specifications | |
Dimensions(mm) |
520*70*44 |
Cable length(m) |
1 |
Antenna weight(kg) |
0.33 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Clamp |
U-shape |
Mounting hardware(mm) |
Φ35~Φ50 |
