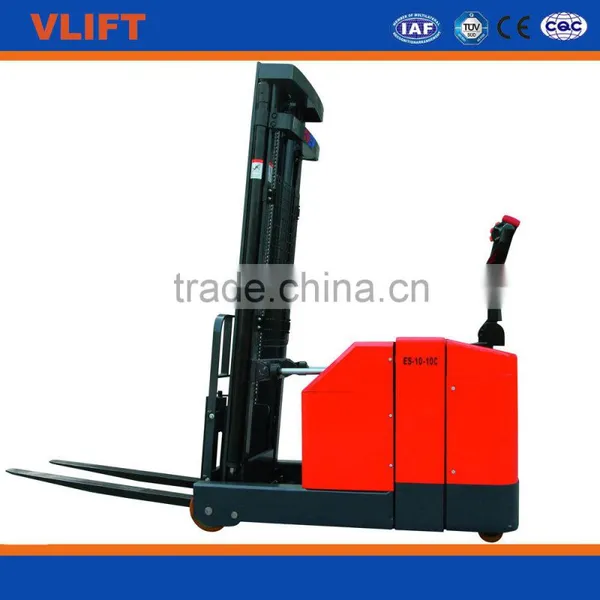

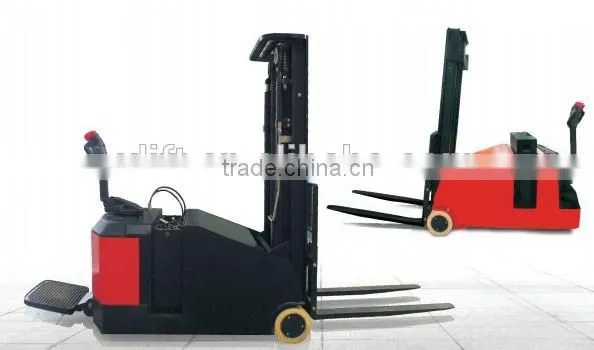

1.0T High Strength Classic Electric Stacker

Name: 1.0T High Strength Classic Electric Stacker
Brand: VLIFT
SKU: 126472967

US$ 6,000 - 6,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

VLIFT

Shanghai Vlift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai qingdao ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name VLIFT

Model Number ES10-10C electric stacker

Type Other, electric stacker

Power Souce DC Motor

Rated Loading Capacity 1000kg

Max. Lifting Height 4215mm

Min. Lifting Height 2110mm

Fork Length 1070mm

Fork Width 100mm

Overall Dimensions 2680*900mm(L*W)

Certification ISO Certificate

After-sales Service Provided Engineers available to service machinery overseas

Electric Stacker 1.0t

Counterbalance Stackers, Better for Non-standardized Pallets.

Characteristics
1.2	Model designation		ES10-10C	ES12-12CS
1.3	Drive unit		Battery	Battery
1.4	Operator type		Walkie	Ride
1.5	Load capacity	Q (kg)	1000	1200
1.6	Load center	c (mm)	600	500
1.9	Wheelbase	y (mm)	1244	1220
Weights
2.1	Service weight (Incl. battery)	kg	1785	1750
Wheels, Chassis
3.1	Tyre type		PU/PU	PU/PU
3.2	Tyre size, operator side	mm	230× 75	230× 75
3.3	Tyre size, load side	mm	254×102	254×102
Dimensions
4.2	Height, mast lowered	h₁ (mm)	2110	2110
4.3	Free lift height	h₂ (mm)	100	100
4.4	Lift height	h₃ (mm)	3300	3300
4.5	Height, mast extended	h4 (mm)	4215	4215
4.9	Height of tiller arm in operating position, min/ max	h₁₄ (mm)	825/ 1190	950/ 1410
4.15	Fork height, lowered	h₁₃ (mm)	50	50
4.19	Overall length	l₁ (mm)	2680	2748
4.21	Overall width	b₁/ b₂ (mm)	710/900	850/910
4.22	Fork dimensions	s/ e/ l (mm)	40/ 100/ 1070	40/ 100/ 1070
4.24	Fork carriage width	b₃ (mm)	820	820
4.32	Ground clearance, center of wheelbase	m₂ (mm)	50	50
4.35	Outer turning radius	Wa (mm)	1425	1535	2055
Performance
5.1	Travel speed, laden/ unladen	km/ h	4.5/ 5.0	5.5/ 6.0
5.2	Lifting speed, laden/ unladen	m/ s	0.127/ 0.23	0.127/ 0.23
5.3	Lowering speed, laden/ unladen	m/ s	0.26/ 0.20	0.26/ 0.20
5.8	Maximum gradeability, laden/ unladen S2 5 min.	%	5.0/ 8.0	5.0/ 8.0
Drive
6.1	Drive motor rating S2 60 min.	kW	1.1	1.5
6.2	Lift motor rating at S3 15%	kW	2.2	2.2
6.4	Battery voltage/ rated capacity (5h)	V/ Ah	24/ 210	24/ 210
6.5	Battery weight (with box)	kg	200	200
	Battery compartment dimensions l/ w/ h	mm	690×230×open	800×230×open
Others
8.1	Type of drive control		ZAPI AC	ZAPI AC
8.1	Type of drive control		/	Electric Power Steering
