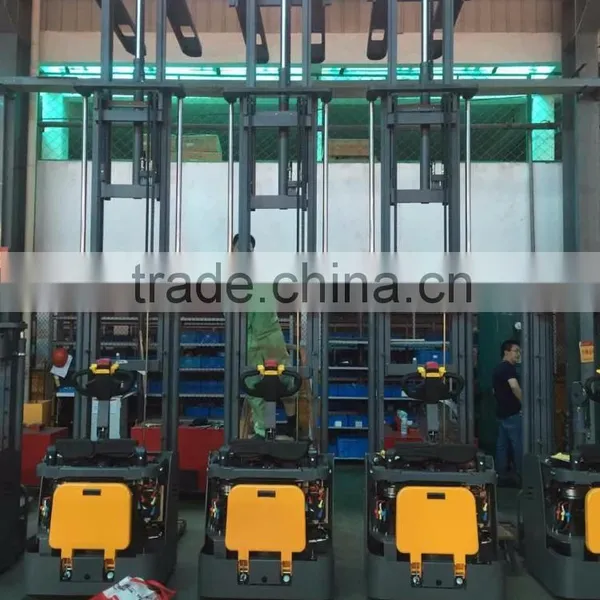

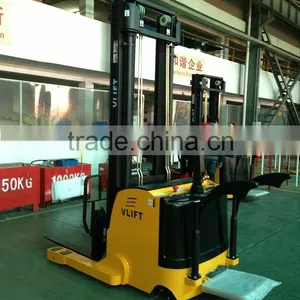

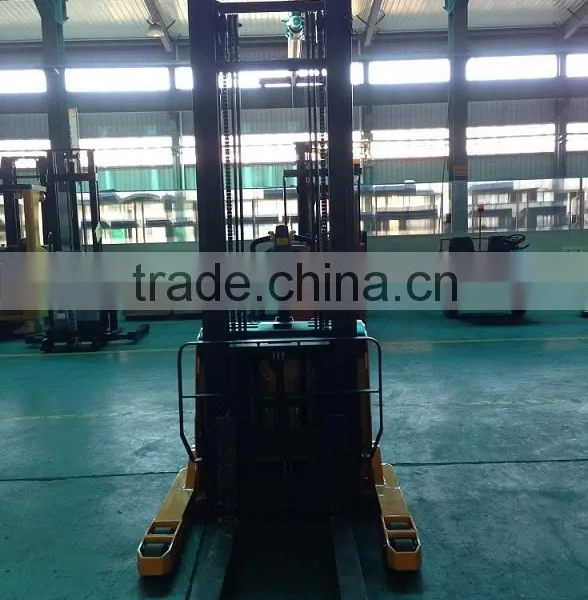

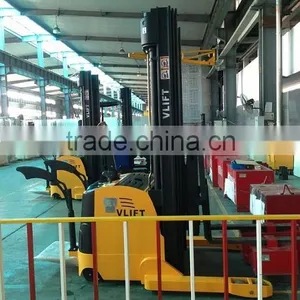

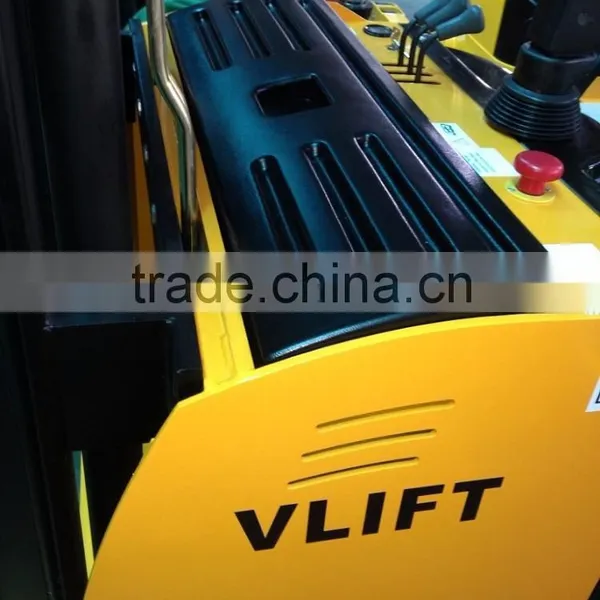

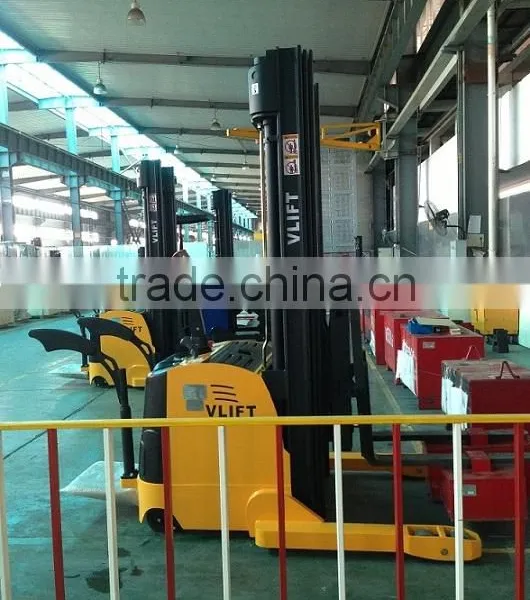

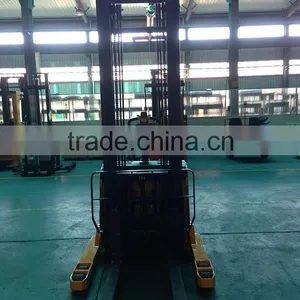

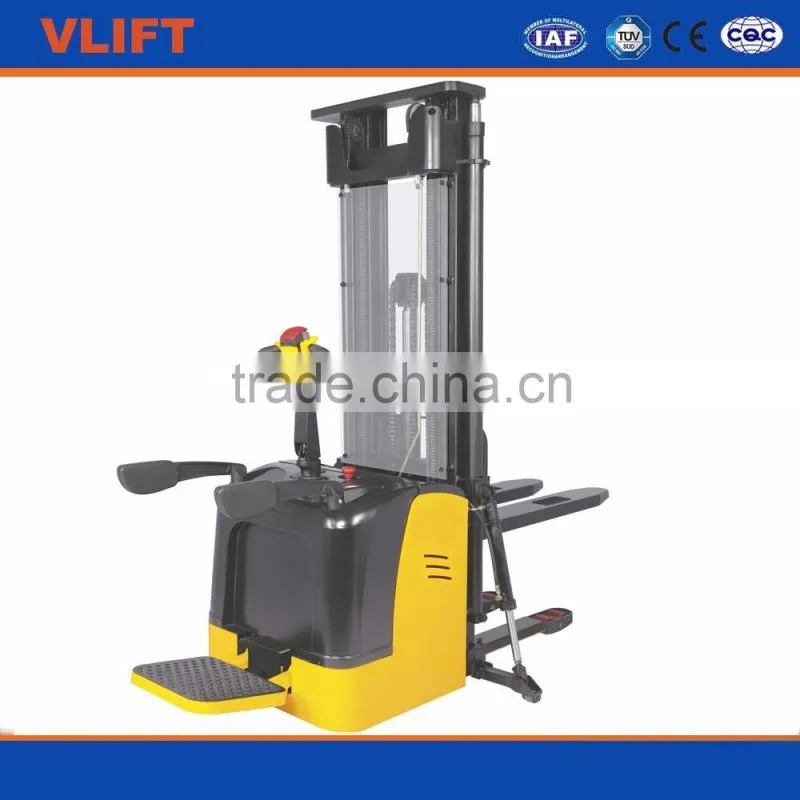

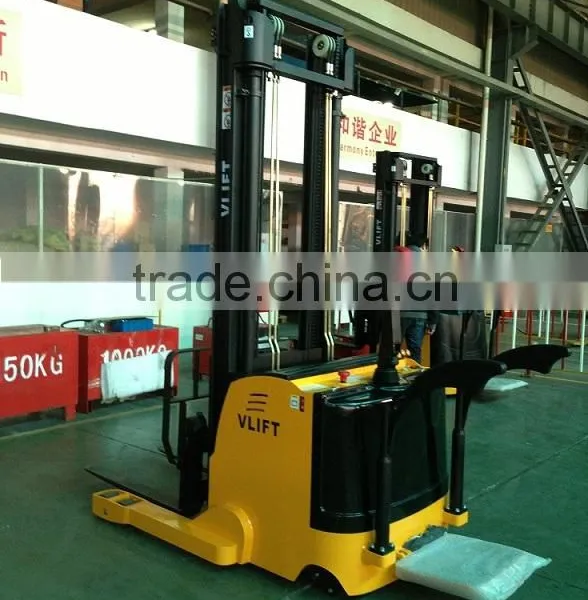

2 ton electric stacker lifting height 6500 mm
| 2 ton electric stacker lifting height 6500 mm | |||
| 1 | Model designation | ||
| 2 | Load capacity | Q (kg) | 2000 |
| 3 | Load distance | c (mm) | 600 |
| 4 | Load distance, center of drive axle to fork | x (mm) | 672 |
| 5 | Tyre size, front | mm | Φ250x70 |
| 6 | Tyre size, rear | mm | Φ80x84 |
| 7 | Additional wheels(dimensions) | mm | Φ150x60 |
| 8 | Wheels, number front/ rear (x=drive wheels) | 1x+2/4 | |
| 9 | Height, mast lowerd | h1 (mm) | 2710 |
| 10 | Free lift | h2 (mm) | 2240 |
| 11 | Lift height | h3 (mm) | 6500 |
| 12 | Height, mast extended | h4(mm) | 7050 |
| 13 | Initial lift | h14(mm) | 1150/1450 |
| 14 | Fork height, lowered | h13(mm) | 90 |
| 15 | Overall length | l1(mm) | 2100/2180 |
| 16 | Length to face of forks | l2(mm) | 950 |
| 17 | Overall width | b1/b2(mm) | 950 |
| 18 | Fork dimensions | s/e/l(mm) | 60/180/1070(1150) |
| 19 | Width overall forks | b5(mm) | 570/690 |
| 20 | Aisle width, 800×1200 pallet lengthways | As1(mm) | 2595 |
| 21 | Turning radius | W2(mm) | 1736 |
| 22 | Travel speed, laden/ unladen | Km/h | 5.8/6 |
| 23 | Lift speed, laden/unladen | m/s | 0.09/0.11 |
| 24 | Low speed, laden/unladen | m/s | 0.12/0.11 |
| 25 | Battery voltage/ nominal capacity (k5) | V/Ah | 24/300 |
| 26 | Battery weight | kg | 300 |
| 27 | Battery dimensions | mm | 675x254x500 |
| 28 | Service weight | kg | 1850 |
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
|
|
|
|
|
|
