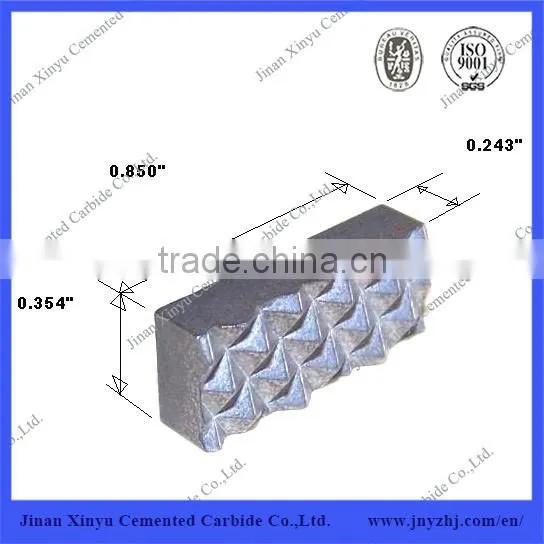

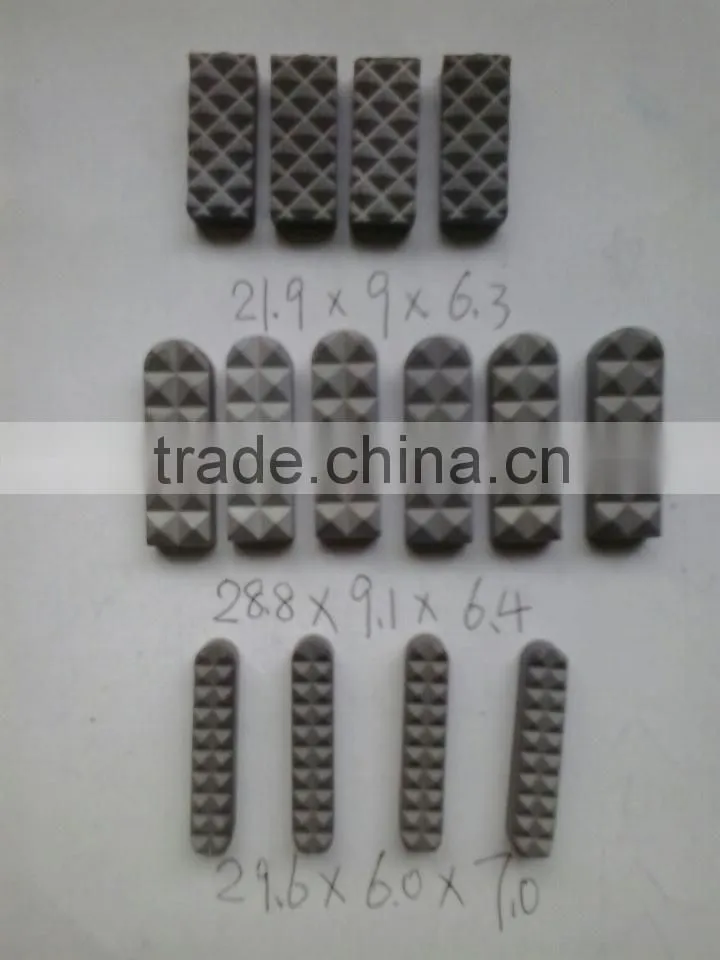

Help CenterTungsten Carbide Gripper Jaw Insert for Chuck Jaws Needle Gripper 22x9x6.3mm
Related Products
-
Water Well Drill Bits Use Cemented Carbide Chisel Shaped ButtonnsertsUS$ 40 - 49MOQ: 5 Kilograms -
Long Extension Conical Shaped Cemented Carbide InsertUS$ 36 - 48MOQ: 5 Kilograms
-
YG6 YG8 Tungsten Carbide K034 K026 InsertUS$ 55 - 70MOQ: 1 Kilogram
-
High Quality Cemented Carbide Buttons for MiningUS$ 55 - 70MOQ: 1 Kilogram
-
Tungsten Carbide Wire Drawing DiesUS$ 55 - 70MOQ: 1 Kilogram

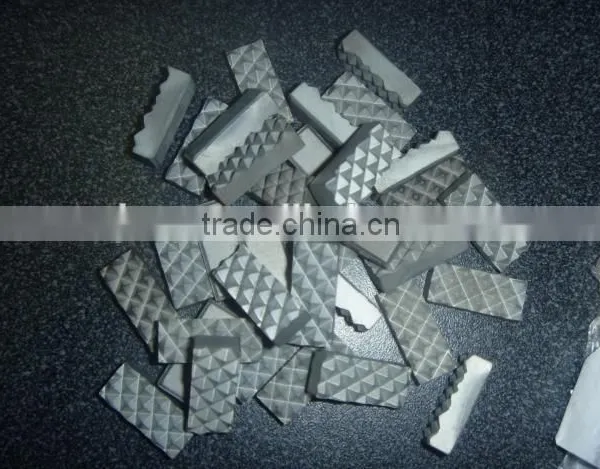

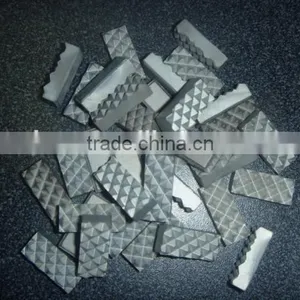

Tungsten Carbide Gripper Inserts
Grades, Properties And Applications Recommended
Grades |
Density(g/cm³) |
Hardness(HRA) |
T·R·S(N/mm2) |
Application |
YG4C |
15.00 |
89.5 |
1800 |
Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 |
14.80 |
89.5 |
1700 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 |
14.70 |
88.5 |
2300 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C |
14.70 |
88.0 |
2300 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C |
14.50 |
87.0 |
2400 |
Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C |
14.40 |
86.5 |
2450 |
Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
Contact us
JINAN XINYU CEMENTED CARBIDE CO., LTD
Address: Zhongmeng Village, Gaoguanzhai Town, Zhangqiu City, Shandong Province
Fax: 0531-67897298
Tel:86-13225410726
