metal sheet leveling machine
If you intend to buy a straightening for the coil plate or metal sheet , just tell us the parameters as below , we can provide the straightening machine according to your requirements !
Application
1.carbon steel plate, galvanized sheet, color plate, stainless steel,
Hot rolled ,cold rolled etc. b≤450Mpa;S ≤260Mpa,
2. Thickness of sheet plate: 0.3-4 mm;
3. Width of coiled plate: 900-1800 mm;
4. Precision of leveling: length tolerance: ±0.2mm/2000mm;
diagonal tolerance: ±0.2mm/2000mm;
unevenness is according to GB stipulations
5. Levelling speed: 0-20m/min ;
6. The roller diameter: 65 mm ; 19+2 pcs.
7. The roller form :60mm
8. Material of levelling roll : SUJ Bearing steel ;
9. Hardness of blade: HRC58°—60°;
10. Motor power: 45 Kw
11. Weight of machine : 15MT
Features of Levelling Machine
To graduate from professional uneven plates in the leveling and guide steel belt into the right place after working procedure.
Support roller`s function : Make leveling roll force equilibrium, and can be reduced to the wear and tear from the roller .
Roller processing flow :
Raw materials-conditioning quality-rough machining-hardening -precision machined.

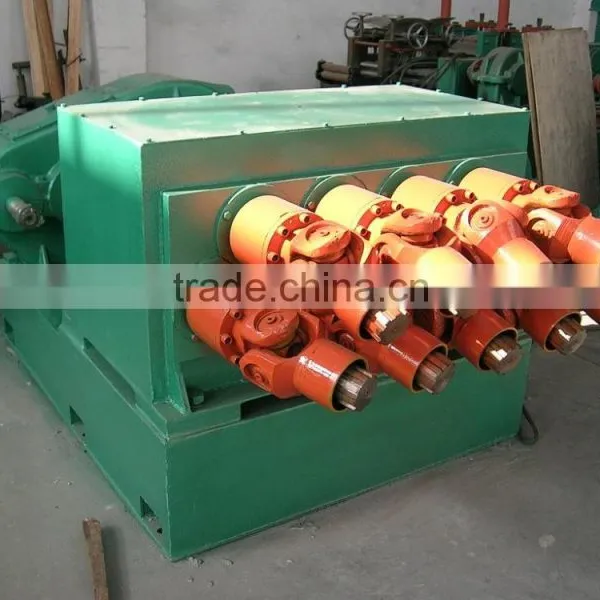

Power part: This is composed of power stand, decelerator, direct current speed adjustable motor: 45KW, electric cabinet, motor wheel, coupler, power distributing case, universal cross joint, 19+2 groups of spindle and connect cover, etc.

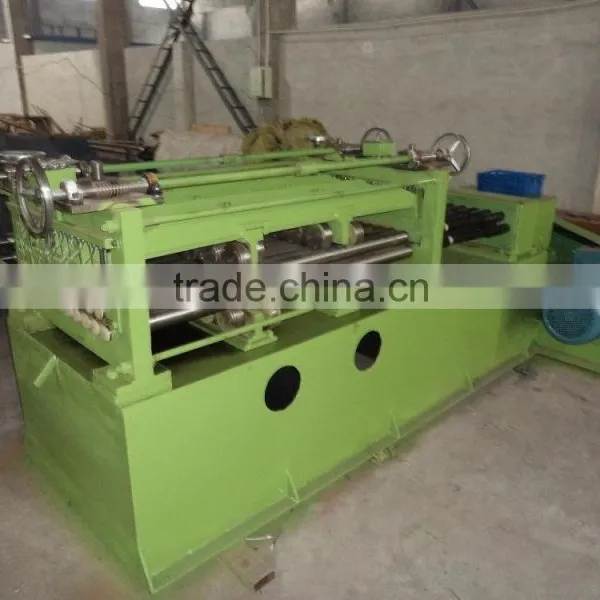

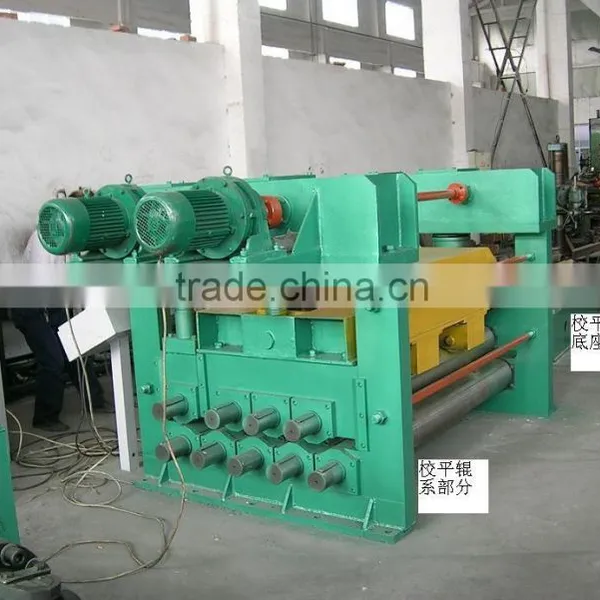

Host machine: This is composed of bottomstand, frame, axle stand, sliding axle stand, 19pcs of leveling roller (roller diameterφ150mm),upper pressing frame, up and down supporting wheel stand, supporting wheel, mechanically lifting &pressing device, accompany of two motors: 2.2KW
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
