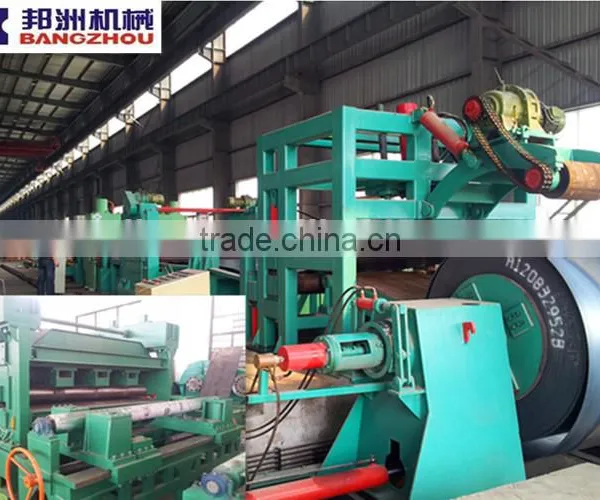

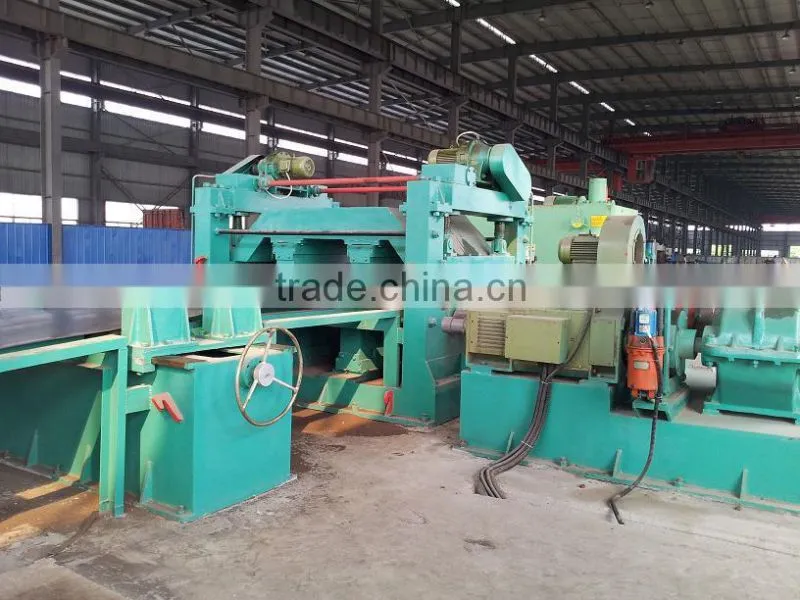

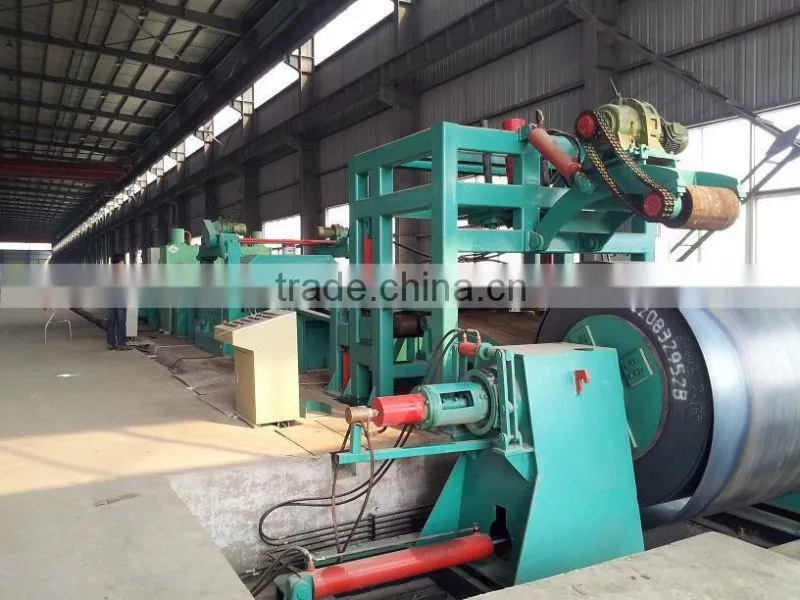

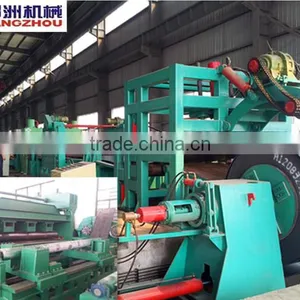

JPX-12X2000 middle plate uncoil cut to length line leveling line
Quick details:
1. Material : hot rolled steel coils
2. thickness: 4-12mm
3. Width: 2200mm
4. Coil weight: 35T
5.Length cutting: 1m-12m
5. Function: uncoiling, straightening and cutting machine
6. Steel Cut to Length Machine
Specifictions of JPX-12X2000 middle plate uncoil cut to length line leveling line
| Item | Steel Cut to length Machines | |
|
Coil Material Specifications
|
Thickness | 4-12mm |
| Coil width | 500-2200mm | |
| Material | HRS | |
| Coil weight | 35T | |
| Coil I.D | 480mm-810mm | |
| Coil O.D | 1800MM | |
| Power | Type | Hydraulic&Motorized |
| Capacity |
about 200KW
|
|
| leveling roller Specifications | diameter | φ180 |
| distance | 190mm | |
| hardness | HRC58-60 | |
| Finished products parameters | diagonal tolerance | ≤±2mm/2000mm |
| length tolerance | ≤±1mm/2000mm | |
| Operation workers needed | 1 technician and 2 common workers | |
Main Components of JPX-12X2000 middle plate uncoil cut to length line leveling line
| Hydraulic entry coil car | 1 Unit |

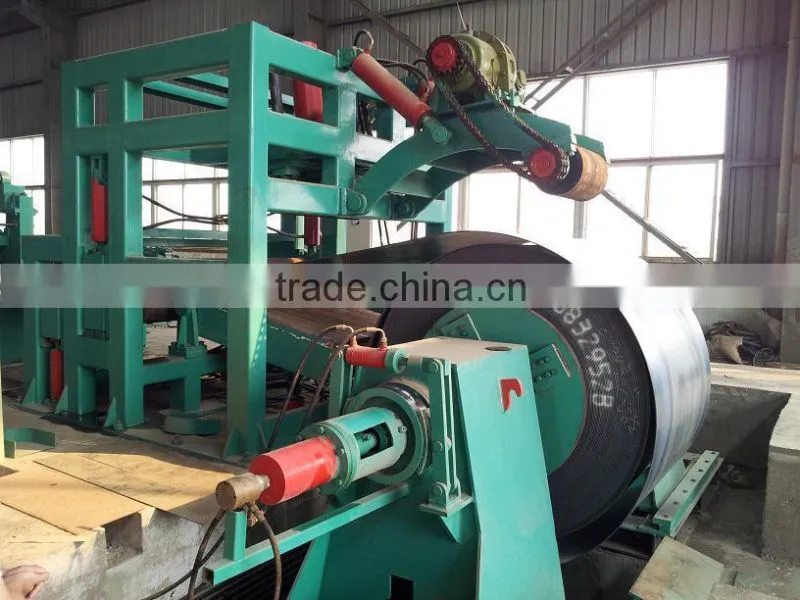

| Hydraulic double head uncoiler | 1 Unit |
| Press and pinch device | 1 Unit |
| Transition table | 1 Unit |
| Side guide device | 1 Unit |
| Straightening machine | 1 Unit |
| Side guide device | 1 Unit |
| PLC fixed length control device | 1 Unit |
| 12X2200 cutter | 1 Unit |
| Stacker | 1 Unit |
| Hydraulic systerm | 1 Unit |
| Electrical systerm | 1 Unit |

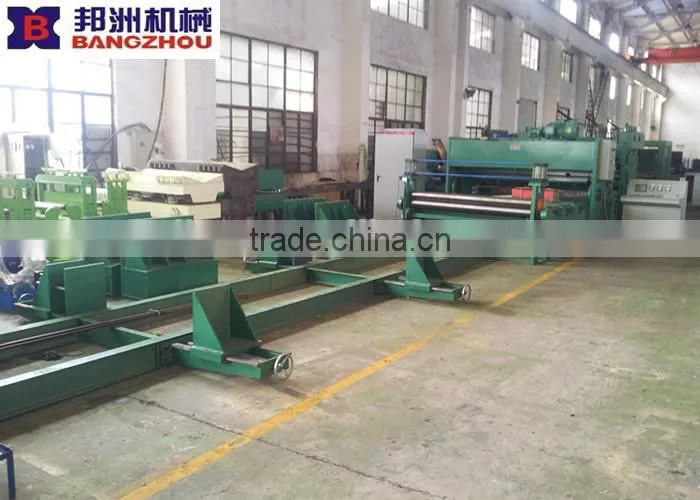

Layout of JPX-12X2000 middle plate uncoil cut to length line leveling line

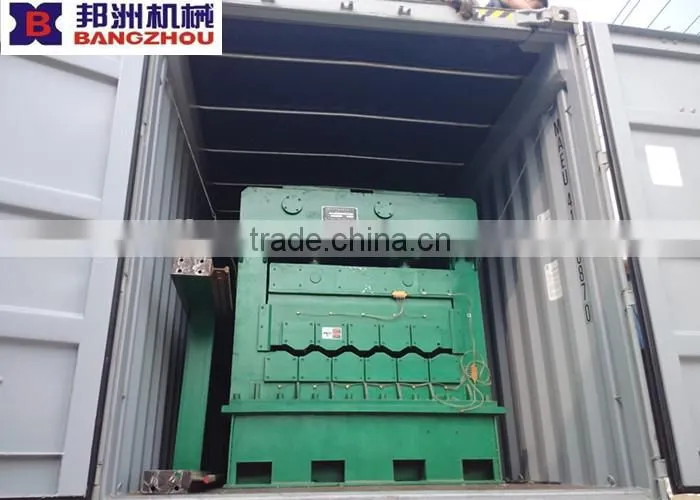

Delivery photos of JPX-12X2000 middle plate uncoil cut to length line leveling line
2 x40 OT Containers and 1x40 GP Container
Total weight of the machines: 65T
Application
It is applied to do the high speed cutting and leveling for the CRS, Galvanized steel and stainless steel, HRS and so on.
Use in great production factory with high output
Features:
1. Adopt good PLC control system, high degree of automation.
2. Adopt reliable hydraulic system and hydraulic elements.
3. Electronics adopts famous wrld brands,quite reliable.
4. Adopt good mechanical design with high solidity and strength.
Company Introduction
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Jiangyin, Wuxi City. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, Steel cut to length machines, Flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Our Advantages
1.we can do the designs according to the customers'requirement
2. We can give you the best suggestions to meet your machine requirements
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design and production team
6. promptly delivery. small order is welcome.
Welcome to our company like them
Our company is a manufacturer, welcome to our factory!!!
