Sheet Metal /Plate/Bebar Shearing Machine
US$ 50,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BX
Model Number:
ZJX-0.5-3*1300
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Silicon Steel Coil Rewinding Machine Line JQ-0.5-2x1300NegotiableMOQ: 1 Set -
ZJX-2*1500 Mechanical Middle Thickness Coil Slitting LineNegotiableMOQ: 1 Set
-
Flat Bar Coil Uncoiling Straithening and Cut to Length LineUS$ 50,000 - 150,000MOQ: 1 Set
-
Rotary Double Mandrel UncoilerUS$ 2,000 - 20,000MOQ: 1 Unit
-
Rotary Double Head UncoilerUS$ 2,000 - 20,000MOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
BX
Model Number
ZJX-0.5-3*1300
Rated Power
30 KW
Weight
4T
Specifications
1.Thickness of coils: 0.5- 3mm2.Width of slitting coils:1300mm
3.Precision of slitting : 0.02mm
4.Coil I.D: 500mm
0.5~3mm×1300mmTechnical Parameter & Composed DevicesOf simple Slitting Machine
I. Technical parameter
Material of processible coiled plate apply for carbon steel plate b≤700Mpa;
Thickness of coiled plate 0.5—3mm;
Width of coiled plate slitting 1300mm
Precision of slitting width tolerance ±0.02mm;Slitting speed 0—30m/min ;
- Loading capacity of uncoiler machine(feeding machine)3.5T;
- Coil I.D 450-510mmmm;
- Coil E.D ≤1500mm;
- Knife pivot diameter of slitting 120mm; material 40Cr;
- Slitting blade 150×250×15; 10pcs
- Material of slitting blade 9CrSi;
- Hardness of blade HRC58°—60°;
- Recoiler I.D 508mm;
- Power 380V three-phase electricity 50Hz;
- The main components & damageable component in electronic equipments is accordance with GB stipulation;
- II. Composed Devices
- Discharging machine loading capacity of :3.5T
- This is composed of bottom stand, frame, conical discharging tray, manual pushing machine, etc.

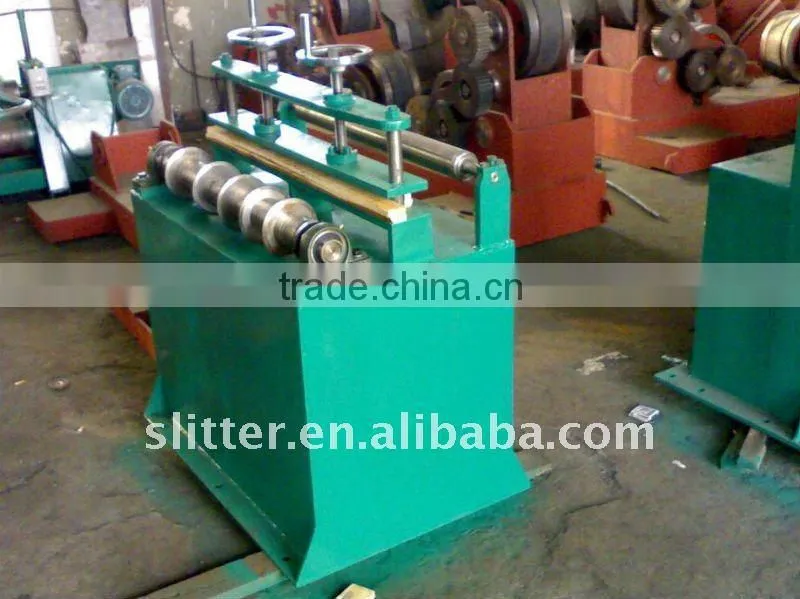

- Guiding (peer to peer) device
- This is composed of worktable frame, guiding pole, adjustment device, moveable plane plate, etc.
- Slitting machine
- Power part: This is composed of power-stand, 400decelerator, motor:11KW, gear distributing case, coupler, spindle, connecting-cover, etc.
- Host machine: This is composed of bottom-stand, fixed torii,, knife pivot(150mm, 2pcs), knife pivot lifting and pressing down adjustment device, accompany of blade, separating cover, rubber band.
- Waste selvage device
- This is composed of frame, waste selvage axle, waste selvage tray, friction wheel, accompany of strap wheel,strap
- Damping device for preliminary dividing& pressing
- This is composed of frame, preliminary dividing axe, torii, pressing axe, damping device, lifting and pressing device for pressing axe, pressing frame, dividing axe, accompany of dividing slice, separating cover, etc.

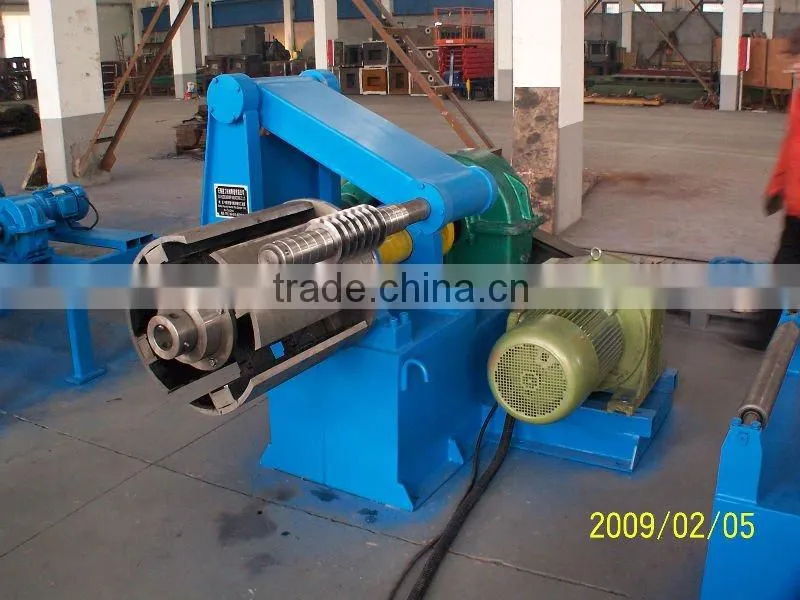

- Recoiler
- This is composed of frame, big bearing-stand, recoiling axle, recoiling expansion device, expansion recoiling plate, moveable supporting arm, accompany of deceleratorJZQ650, speed adjustable motor: 37KW, etc.
- 7. Electric operation syste.
·other terms
- . payment terms: deposit 30% with the contract ,the balance deposit before the shipment.
- . spare parts: the one set of knife ,and some sealed loops . one manual book in English .
- . warranty one years and supply service for all the life

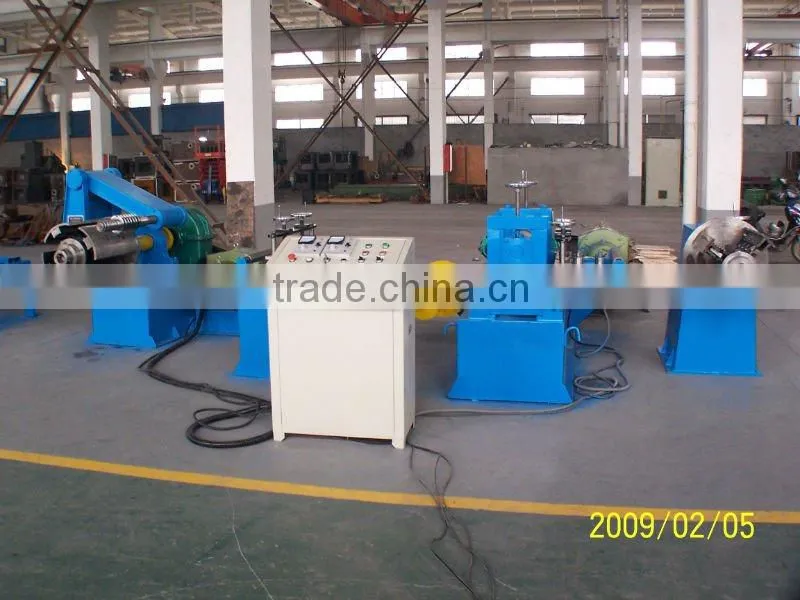

THE SIMPLE SLITTING LINE !
THE COIL PLATE UNCOILER MACHINE !
SLITTING LINE MACHINE !
