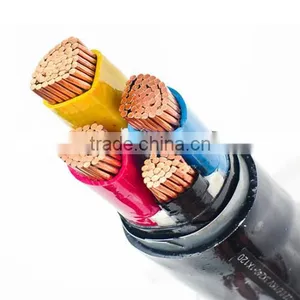

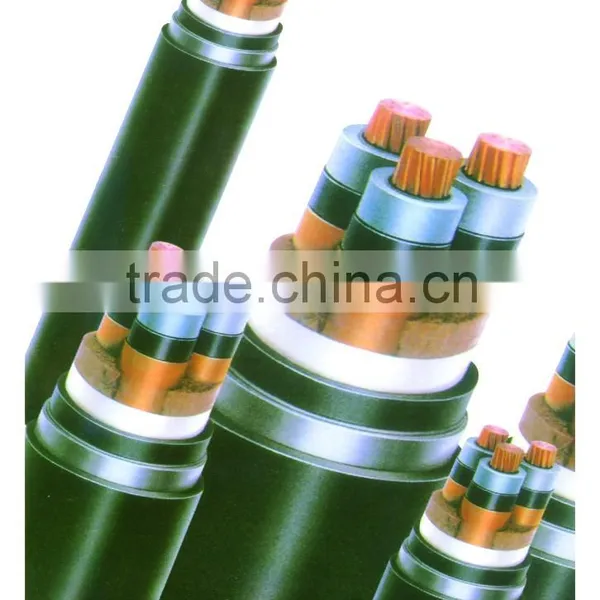

2016 PVC/XLPE Insulation Electrical Cable Wire 10mm
Applications for electrical cable wire
The products are suitable for household electrical appliances, small electric power tools, AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools, instruments and apparatuses and lighting devices, which is used for connecting power line.
Operating characteristics of electrical cable wire
The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
The Specification of electrical cable wire
1. U0/U: 450/750V
2. Standard applied: IEC60227
3. Max working temperature: 70°C
4. Conductor
H07V-R: Class 2 stranded plain copper conductors
H07V-U: Class 1 solid plain copper conductor
5. Insulation: PVC
6. Cores: Single core, Multi core
7. Cross section area: 1.5mm2-240mm2
8. Sheath: Without Sheath
9. Color: red,yellow,blue,black,green,white or as per request
10. Flame retardant or fire resistance or Low smoking and Halogen free or other property can be available
11. 100meters/coil, or as per request
