WS-X45-SUP7L-E

WS-X45-SUP7L-E thumbnail-1
WS-X45-SUP7L-E photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Transmission Rate:
Other
Function:
LACP, SNMP, Stackable, VLAN Support
Contact Supplier Request Quote Chat Now
Guangzhou Yuhe Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Transmission Rate Other
Function LACP, SNMP, Stackable, VLAN Support
Certification CE
Brand Name CISCO
Model Number WS-X45-SUP7L-E
Place of Origin China

Specifications

1. WS-X45-SUP7L-E
2. Original Packing
3. 1 year warranty
4. Big discount and fast delivery

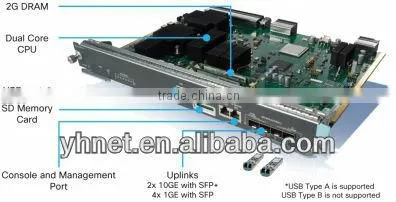

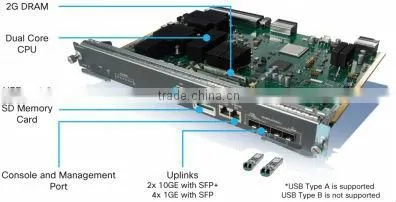

The Cisco® Catalyst® 4500E Supervisor Engine 7L-E  is an enterprise-class borderless campus access and price/performance aggregation supervisor engine designed to provide 520 Gbps per system with E-Series chassis. The Cisco Catalyst 4500E Supervisor Engine 7L-E builds on the success of its predecessor, the Cisco Catalyst 4500E Supervisor Engine 6L-E, and provides unprecedented performance with borderless services such as Flexible NetFlow (FNF) and hosted third-party applications.
The Supervisor Engine 7L-E offers key innovations including

• Up to 7 to 10 years of investment protection through backward and forward compatibility

• 520-Gbps system performance with 48 Gbps per slot to every line-card slot

• Future-proof investment with dual 10 Gigabit Ethernet uplinks (Small Form-Factor Pluggable Plus [SFP+] optics) or four Gigabit Ethernet uplinks (SFP optics)

• Cisco Universal Power over Ethernet (UPOE) for unprecedented convergence to IP network infrastructure

• Application visibility through FNF

• Cisco IOS® XE Software, which provides the ability to host third-party applications

• Energy efficiency with support for 802.3az Energy-Efficient Ethernet (EEE)-capable line cards

• Industry-leading resiliency through In-Service Software Upgrade (ISSU)

• First and only modular switch with 8 bidirectional line-rate Switched Port Analyzer/Remote SPAN (SPAN/RSPAN) sessions



WS-X45-SUP7L-E





Specifications

WS-X45-SUP7L-E

Catalyst 4500 E-Series Supervisor 7L-E, 520Gbps





Cisco Catalyst 4500E Supervisor Engine 7L-E Performance and Scalability Features



Feature and Description

Supervisor Engine 7L-E

Centralized switching capacity

520 Gbps

Per-slot switching capacity

48 Gbps

Throughput
• 225 Mpps for IPv4
• 110 Mpps for IPv6
• 225 Mpps for L2 Bridging

IPv4 routing entries

64,000

IPv6 routing entries

32,000

Multicast routes

32,000

CPU

Dual core; 1.5 GHz

CPU queues

64

Synchronous Dynamic RAM (SDRAM)

2 GB

Boot flash

1G

Security and QoS hardware entries

64,000

Dynamic Host Configuration Protocol (DHCP) snooping entries

12,000

Cisco Network Admission Control (NAC)

4,000

MAC addresses

55,000

Active VLANs

4,094

Address Resolution Protocol (ARP) entries

47,000

Spanning Tree Protocol instances

12,000

Switched virtual interfaces (SVIs)

4,094

SPAN

8 bidirectional sessions (ingress and egress)
