Home > Electrical & Electronics > Electric Motor > DC Motor > High Rpm 12v dc Electric Motor FT-280 for Door Lock Actuator

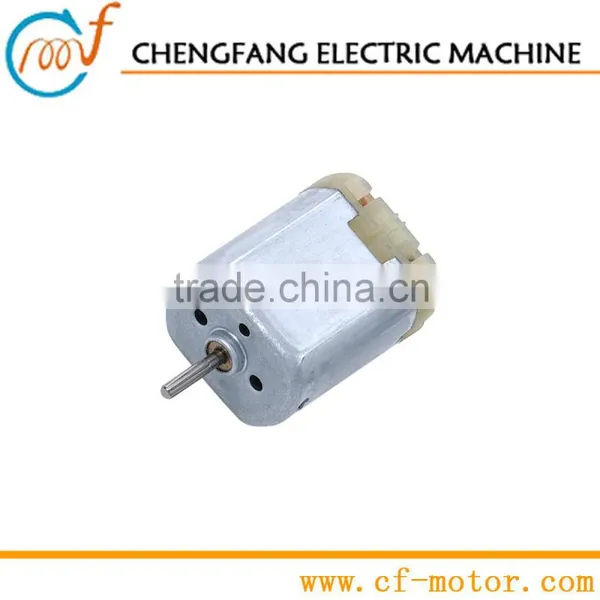

High Rpm 12v dc Electric Motor FT-280 for Door Lock Actuator
Negotiable
MOQ: 20000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Chengfang Motor
Model Number:
FT-280SAT-20148
Usage:
Car, Other, Car, door lock actuator
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Flat Electric Motor4000-10000RPM FC-280ANegotiableMOQ: 20000 Pieces -
12V Flat DC Electric Small DC Motor 5 Watt FC-280ANegotiableMOQ: 20000 Pieces
-
DC Motor 24V Electric Car Motor FT-280ANegotiableMOQ: 20000 Pieces
-
Car Electric Motor FT-280ANegotiableMOQ: 20000 Pieces
-
Single Phase 2hp Electric Motor FT-280ANegotiableMOQ: 20000 Pieces
Brand Name
Chengfang Motor
Model Number
FT-280SAT-20148
Usage
Car, Other, Car, door lock actuator
Certification
CCC, ROHS, UL, Other, Other, CCC, ROHS, UL, Other, ISO/TS 16949:2009
Torque
32.5mNm
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
12,200
Continuous Current(A)
0.11
Output Power
5.25W
Voltage(V)
12V
Efficiency
Other, 60%-80%

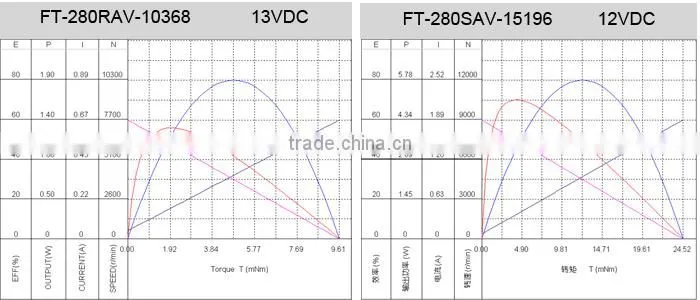

Performance Data
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| V | r/min | A | r/min | A | mNm | W | % | A | mNm | |
| FT-280RAV-10368 | 13 | 7,700 | 0.05 | 6,096 | 0.18 | 2 | 1.28 | 55.9 | 0.67 | 37.46 |
| FT-280SAV-15196 | 12 | 9,000 | 0.08 | 7,462 | 0.39 | 4.19 | 3.27 | 70.1 | 1.89 | 24.52 |
| FT-280SAV-18167 | 12 | 10,800 | 0.11 | 8,862 | 0.5 | 4.2 | 3.92 | 64.9 | 2.3 | 23.5 |
| FT-280SA-20163 | 12 | 870 | 0.09 | 9,337 | 0.55 | 4.7 | 4.6 | 70.1 | 3.33 | 33.34 |
| FT-280SAVT-19150B | 12 | 12,000 | 0.12 | 10,116 | 0.64 | 4.82 | 5.11 | 66.2 | 3.45 | 30.7 |
| FT-280SAT-20148 | 12 | 12,200 | 0.11 | 10,386 | 0.63 | 4.8 | 5.25 | 69.6 | 3.6 | 32.5 |
