Home > Electrical & Electronics > Electric Motor > DC Motor > Power Pan Motor FT-260SAVCT, Mini Electric Motor, dc Micromotor

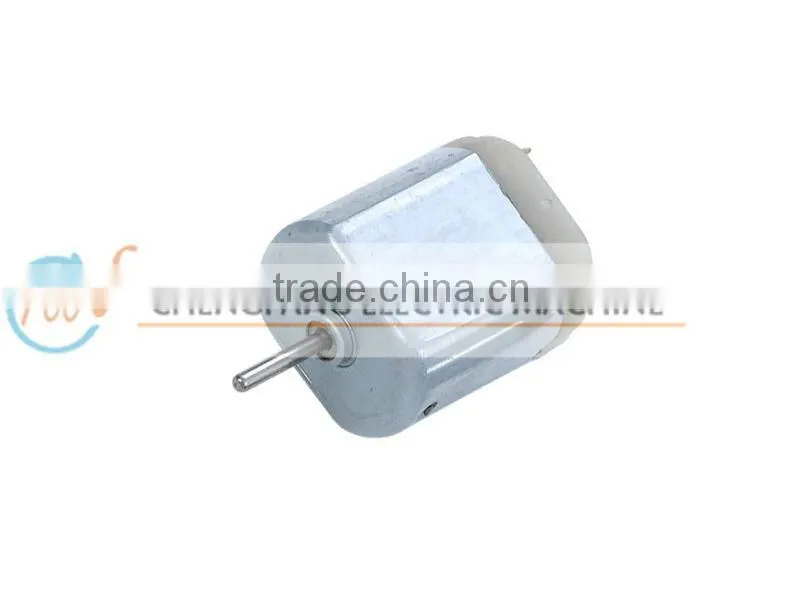

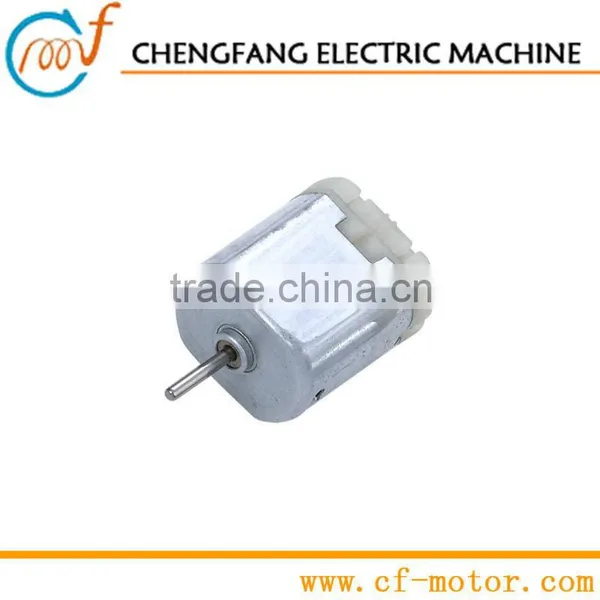

Power Pan Motor FT-260SAVCT, Mini Electric Motor, dc Micromotor

Name: Power Pan Motor FT-260SAVCT, Mini Electric Motor, dc Micromotor
Brand: CF motor
SKU: 126940937

Power Pan Motor FT-260SAVCT, Mini Electric Motor, dc Micromotor thumbnail-1

Power Pan Motor FT-260SAVCT, Mini Electric Motor, dc Micromotor photo-1

Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF motor

Model Number:

FT-280A

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF motor

Model Number FT-280A

Usage Car

Certification CCC, ROHS

Type Micro Motor

Construction Permanent Magnet

Commutation Brush

Protect Feature Other

Speed(RPM) 3000~30000

Voltage(V) 1.0~24

Power Pan motor

dia*L 24*30.5mm
Weight: 30g Approx
Application: Fax Machine / Door Lock Actuator

The models we list below are part of our existing designs.

We offer specific motor design for every customer.

FT-260A

Model No.	FT-260SAVCT-17188D
Rated voltage	12VDC
No Load	Speed(r/min)	12000
No Load	Current(A)	0.11
At Max Efficiency	Speed(r/min)	10074
	Current(A)	0.57
	Torque(mNm)	3.9
	Output(W)	4.15
	Eff.(%)	60.3
At stall	Current(A)	3
At stall	Torque(mNm)	24.5

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Door lock actuator motor
Fax machine motor

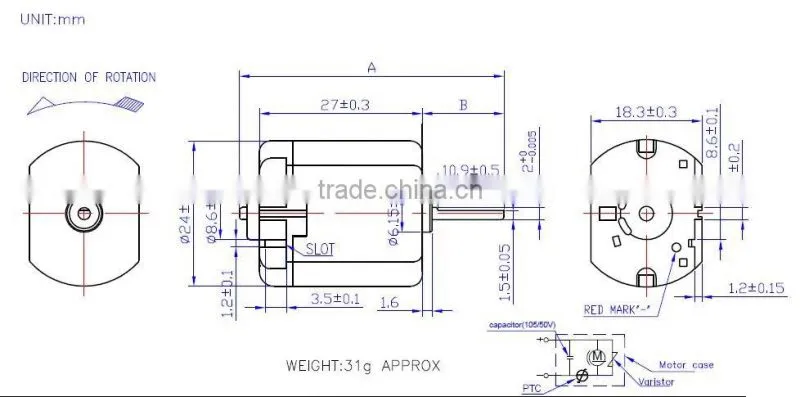

Dimension: dia. 24 x 18.3 Thk. x 30.5 L. shaft O.D. 2.0 mm
Basic Structure: SECD housing / Plastic end cap / Female terminal
Application: Fax Machine / Door Lock Actuator / Power Scissors
Weight: Approx. 30g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
