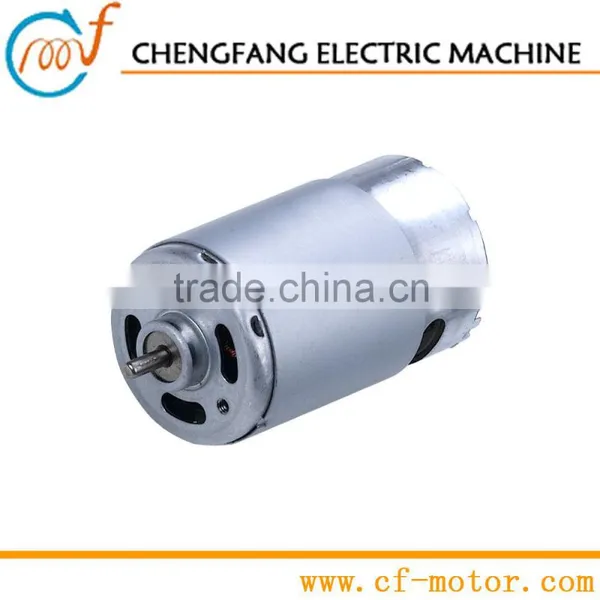

Food Saver Motor,12VDC Motor, Electric Motors

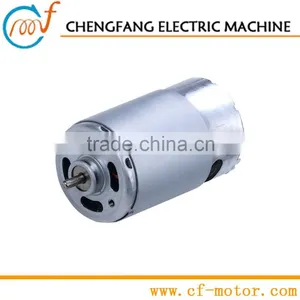

Food Saver Motor,12VDC Motor, Electric Motors thumbnail-1
Food Saver Motor,12VDC Motor, Electric Motors photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor
Model Number:
RS-550PH-35100LU
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor
Model Number RS-550PH-35100LU
Usage Home Appliance
Certification CCC
Type Micro Motor
Torque 186.3mNm
Construction Permanent Magnet
Commutation Brush
Protect Feature Other
Speed(RPM) 3000~30000
Output Power 11.11w
Voltage(V) lower than 60V

Specifications

electric motor
Weight:Approx.200g
Application: Vacuum cleaner / Air pump / Power tool
dia*L 35.8*57 mm

Food saver motor,12VDC motor, electric motors

Ride-on toy motor
Weight:Approx.200g
Application: Vacuum cleaner / Air pump / Power tool
dia*L 35.8*57 mm

The models we list below are part of our existing designs.

We offer specific motor design for every customer.



 RS-550H

Model No. RS-550PH-35100LU
Rated voltage 12VDC
No Load Speed(r/min) 5000
Current(A) 0.2
At Max Efficiency Speed(r/min) 4345
Current(A) 1.33
Torque(mNm) 24.4
Output(W) 11.11
Eff.(%) 69.8
At stall Speed(r/min) 8.8
Current(A) 186.3

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

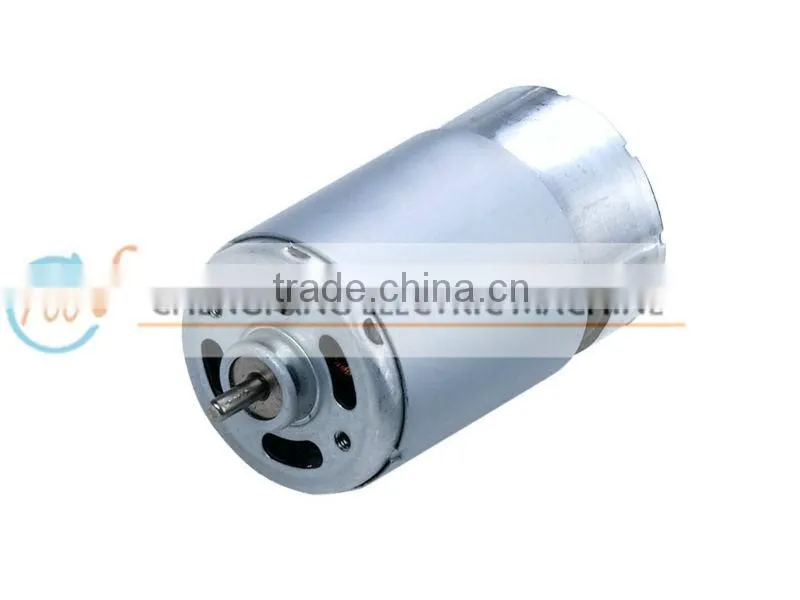

food saver motor,12VDC motor, electric motors

food saver motor,12VDC motor, electric motors





  • Ride-on toy motor

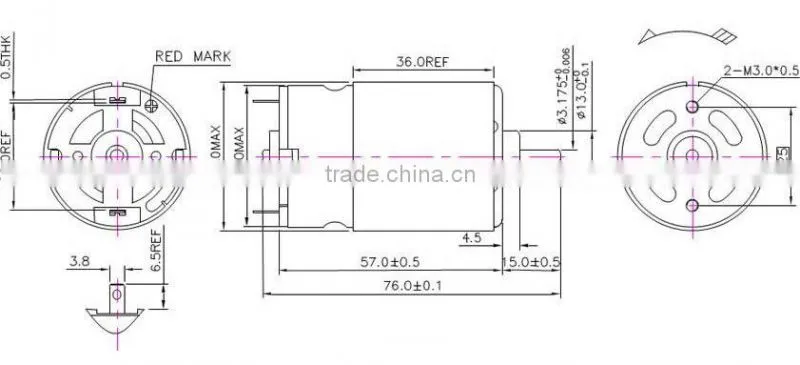

  • Dimension: φ 37.0 x 57 L. shaft O.D. 3.175 mm
  • Basic Structure: SECD housing / Plastic end cap
  • Application: Vacuum cleaner / Air pump / Power tool / Electrical Model
  • Weight: Approx. 200





Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
