250/440VAC Three Phase Three Line EMI Filter 10A .

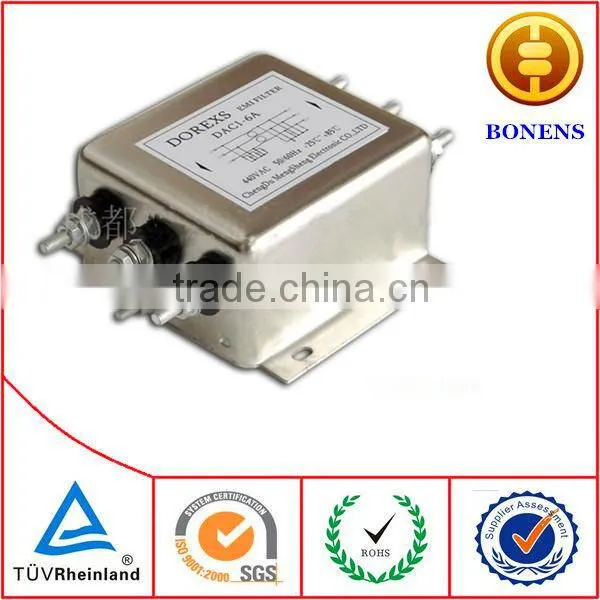

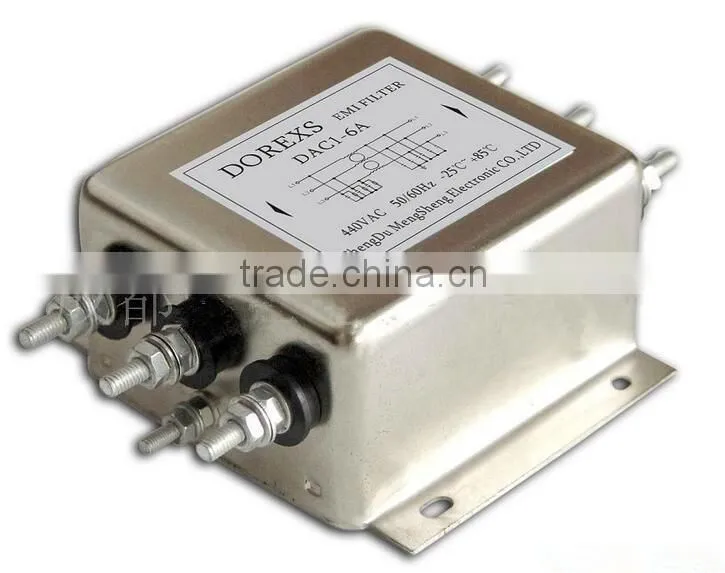

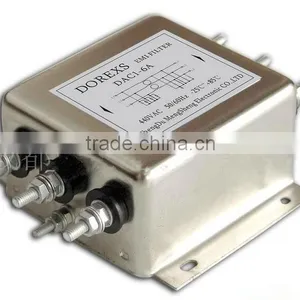

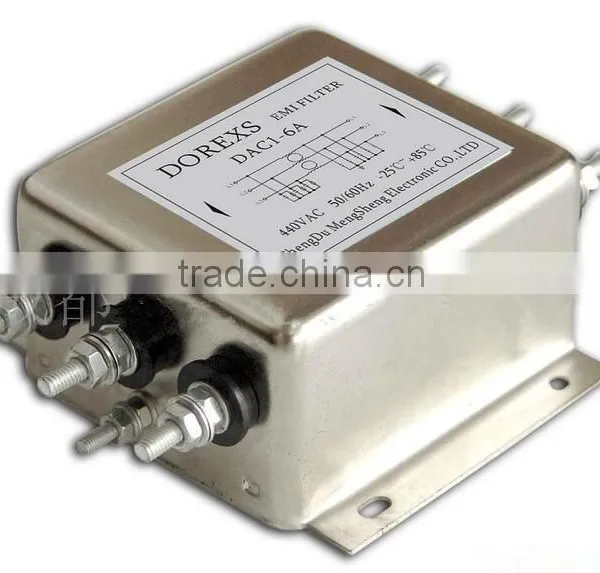

Products Pictures show:
Technical Parameters:
| Rated voltage ………………………………………………………………………250/440VAC |
| working frequency ………………………………………………………....……50/60Hz |
| Current Rating ……………………………………………………………………….1A~100A |
Pressure test………………..........................…Line - line:1500VDC ,Line - ground:2250VDC |
| Insulation resistance ……………………………………………………………>200MΩ@500VDC |
|
|
Climate class …………………………………………………………………………25/085/21 |

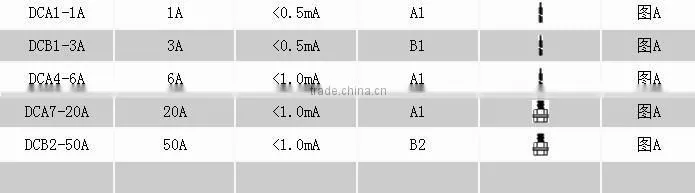

Conventional Products List:
Model Rated Current Leakage current Shell model Link way Circuit diagram

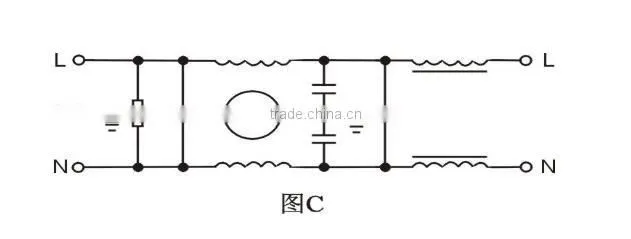

Circuit diagram:
Shell Size:
Insertion Loss:
Quantiy Per Cartoon: 250 Pcs
Gross Weight: 12kg
Cartoon Size: 45*36*21cm
Packing Sample Photos:
Q1: How about your experience?
A1: We have our own professional factory and R&D department
Q2:What's your your advantage?
A2:(1) More than 12 Years Manufactuer Experience in potentiometer&resistor&EMI filter&knobs
(2) 8 years of Alibaba Gold Supplier.
(3) Factory Price and OEM Provide.
(4) Credit guarantee combination: US $17000
(5) TUV ROHS ISO9001 CE
(6) Low MOQ:1 Piece
Q3: How to ensure the quality of the product?
A2: The safety certification of UL/CE/CQC/ROHS is a guarantee of quality.
100% QC inspection Before Shippment.
