Ceramic High Resistance 505 5M Potentiometer 3329H-1
US$ 0.1 - 0.2
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
BONENS
Model Number:
3329H-1
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ROHS 3296W 10k Ohm Trimpot Variable ResistorUS$ 0.048 - 0.06MOQ: 50 Pieces -
ROHS 3329H 10k Ohm Trimpot Variable ResistorUS$ 0.14 - 0.16MOQ: 50 Pieces
-
ROHS 3362P 10k Ohm Trimpot Variable ResistorUS$ 0.048 - 0.05MOQ: 1000 Pieces
-
Bonens Chengdu RoHs Trimmer 3296w PotentiometerUS$ 0.05 - 0.12MOQ: 1 Piece
-
3682S 100k 200k Switch Digital PotentiometerUS$ 39 - 39MOQ: 1 Piece
Place of Origin
Sichuan, China
Brand Name
BONENS
Model Number
3329H-1
Type
Trimming Potentiometer
Technology
Cermet
Resistance
10Ω~5MΩ
Resistance Tolerance
±10%
Rated Power
0.5W
Max. Operating Voltage
250V DC/AC
Operating Temperature
-55℃ ~+125℃
Ceramic high resistance 505 5M potentiometer 3329H-1
|

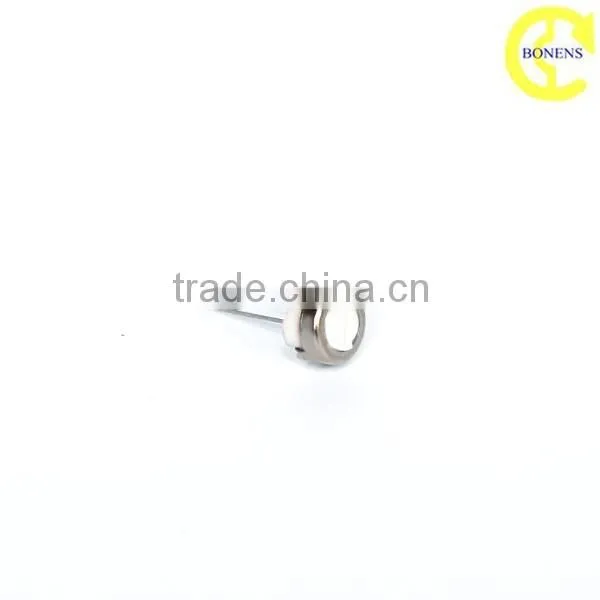

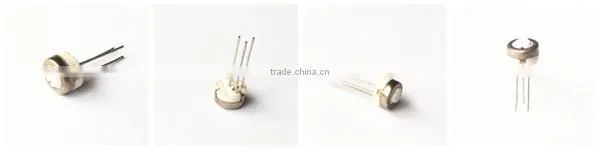

1.3329H-1 Pictures:
| ||||||
|

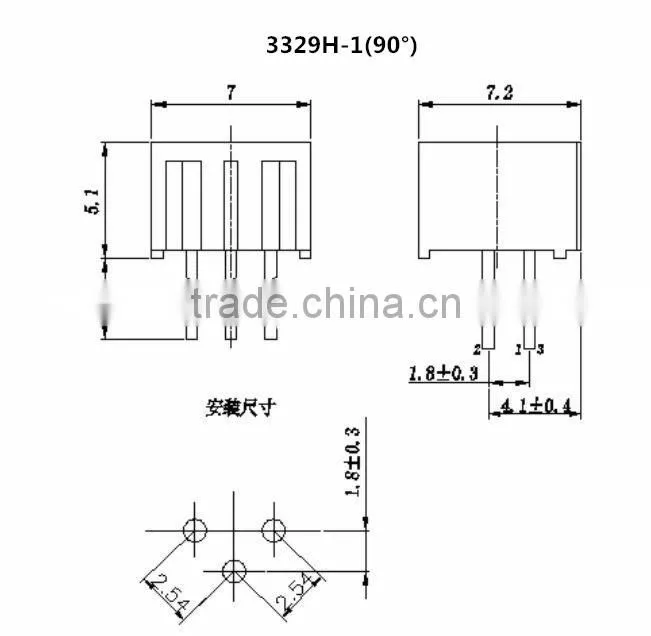

2.3329H-1 Dimensions:
| ||||||
| 3.3329 Data Sheet: | ||||||
|
Electrical Characteristics |
Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω |
|||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
|||||
| Insulation resistance | ≥ 1GΩ (100V AC) |
|||||
| Withstand voltage | 250V (DC or AC peak value) | |||||
| Effective electrical travel | ≥200° | |||||
|
Environment Characteristics |
Rated power | 0.5W ( 300V max) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|||||
|
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) |
ΔR≤± (5%R+0.1Ω), Insulation Resistance ≥100MΩ |
|||||
| Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
|||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
|
Physical Characteristics |
Total mechanical travel | 280°±10° | ||||
| Starting torque | ≤20mN.m |
|||||
| Stopper torque | ≥50mN.m |
|||||
| Standard package | 50 pcs /tube | |||||
|
4.3329H Packaging: 50PCS/Tub,1000pieces/box,20000Pcs/carton.Special packaging is available.
| ||||||
|

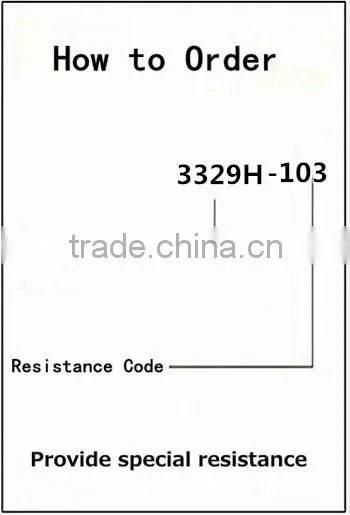

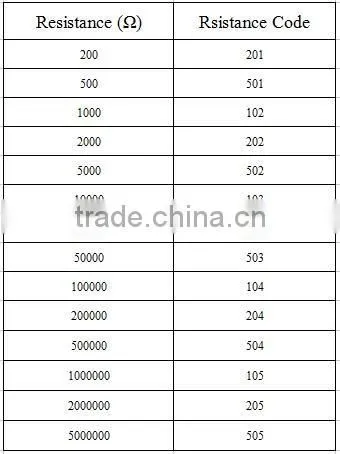

5.3329H Buying Guides:
| ||||||
|
6.Shipping & payment: 1).Send by DHL,FEDEX,UPS,TNT,EMS,Sea transportation. 2).Paypal,T/T,Western union............
| ||||||
|

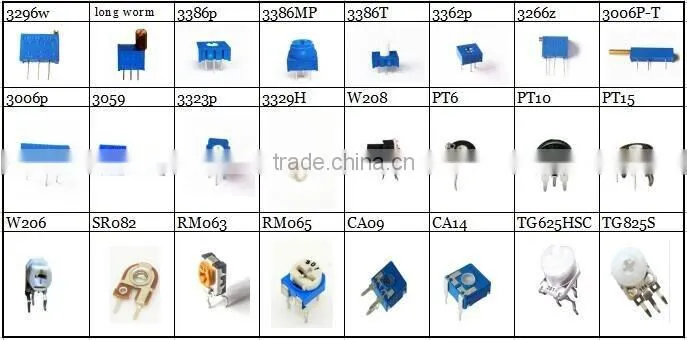

7.Our main products:
| ||||||
| ||||||
| ||||||
|
| ||||||
|
7.Factory Information:
| ||||||
| ||||||
|
8.Our certificates:
| ||||||
|
9.For more informations,Please don't hesitate to contact us. Att:Gina
Skype:Ginazhou.12
QQ:512351005
Pone/Whattsapp:+86-18010662198
| ||||||
Looking forward to your inquiry..........
