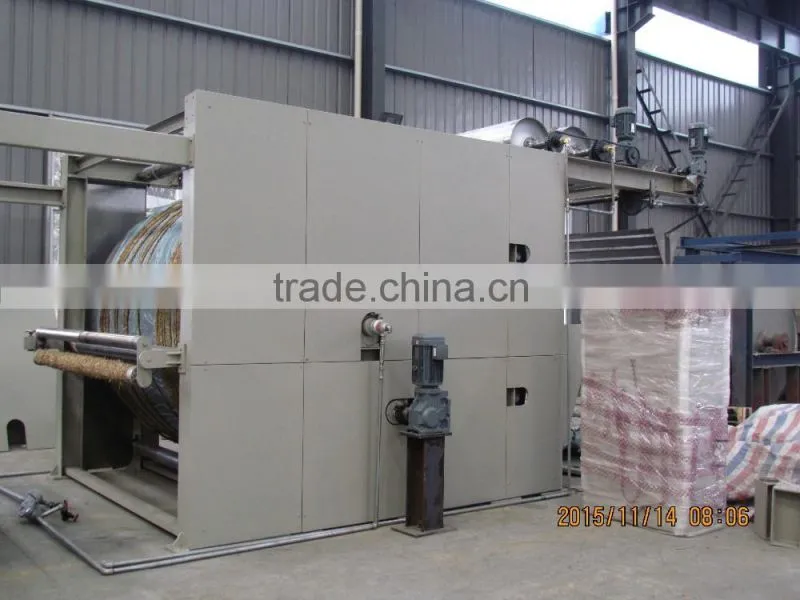

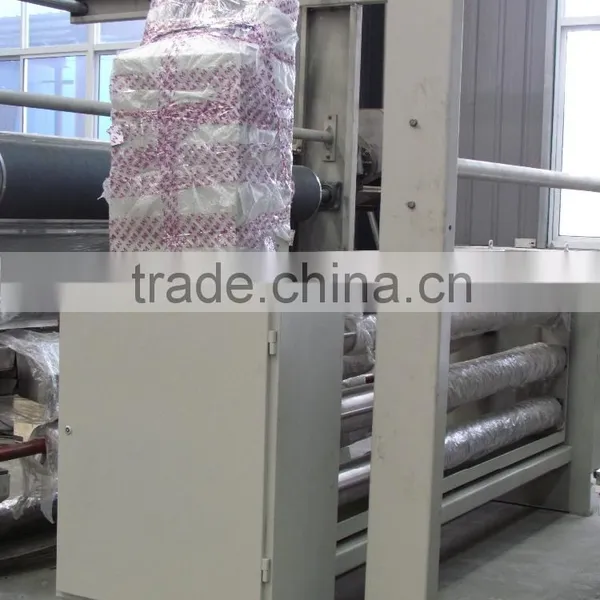

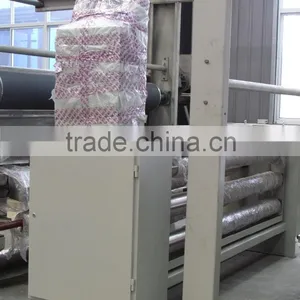

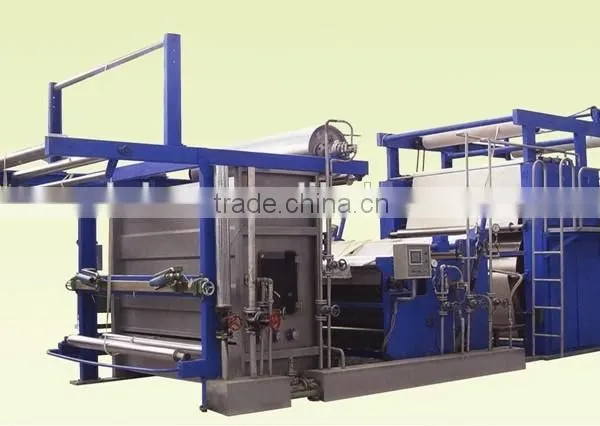

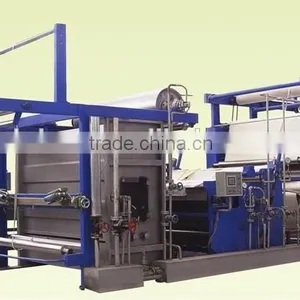

LMA442C-220 Rubber Blanket Compressive shrinking machine
Technological process:
Open-width feeding → stainless steel steam conditioning box → overfeed transmission → rubber belt shrinking unit → blanket finishing machine → open-width doffing(stainless steel bucket type doffing)
Application:
This machine is mainly used for after finishing process of cotton, blended fabric.As the fabric shrunk finish process and
1,Main feature:
Absorb advanced technology and process from Germany Monforts,rubber blanket from Canada.
1.1,Feeding part
Steam conditioning drying cylinder conditions, conditioning roller is ¢608mm;
1.2,Preshrinking part
45mm unitary steel plate wallboard;
616mm stainless steel press roller;
1.3,Drying part
2000mm and ¢1000mm drying drum
Rubber grinder roller of air pressure wringing and special process treatment, which can comparable with imported level.
1.4,Control of electric device
1.5,AC variable frequency circuit
1.6, Automatic display the flexible ratio, control reduction ratio;
1.7,Optional human-computer computer control.
Main technical parameter:
1,Machine direction: left hand or right hand
2,Mechnical width: 2200mm
3,Designed mechnical speed: 10-100 m/min
4,Heat source: steam(steam pressure 0.5Mpa )
5,Transmission type: variable-frequency electric drive
6,Installed power: 26.5KW(not include grinding roller motor 11KW)
7,Preshrunk ratio: ≤16%
8,Shrinkage rate: ≤1%
9, Max. steam consumption: around 200kg/h
