Specifications
) Consist of pan-body , frame ,worm. ect.2) Can heat by electricity
3)material:SS304 & 316
4)Capacities: 50~500L

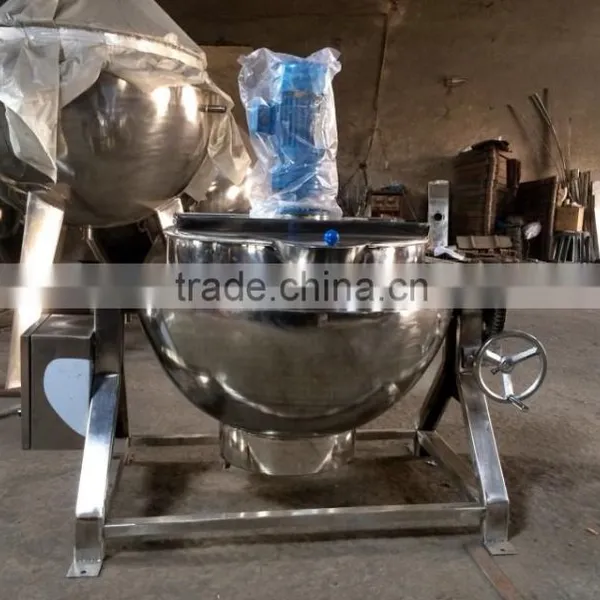

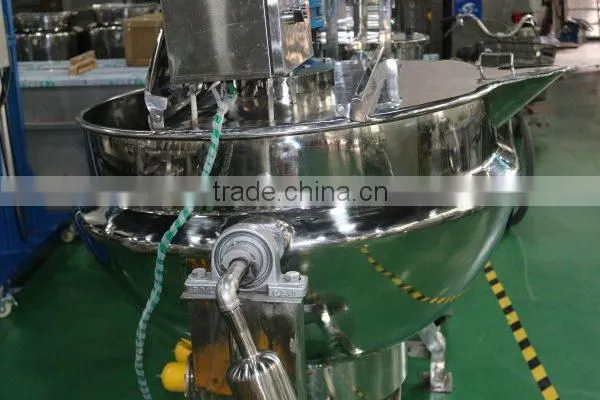

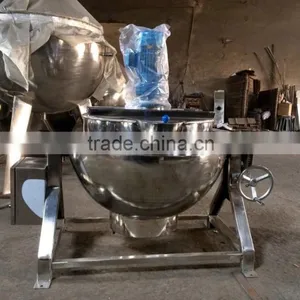

Tilting jacketed kettle for cooking noodle
Usages:
Inclinable sandwich pot made up of body, brackets, worms and worm wheels, pot body can be tilted within 180°C. This equipment with exposure mouth type, mainly used for the liquid boiling and concentrating in pharmaceutical, food, chemical, light industry etc. The contact parts of equipment with material is stainless steel SUS304ss,Has good corrosion resistance, durable in use, meet requirements of GMP. We also could increase the mixing device based on user’s requirements.
Parameters:
| Model | JK50 | JK100 | JK200 | JK300 | JK400 | JK500 | JK600 | JK800 | JK1000 |
| Capacity(L) | 50 | 100 | 200 |
300 | 400 | 500 | 600 | 800 | 1000 |
| Caliber(mm) | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
| Depth(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
| Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
| Working pressure | ≤0.09Mpa(customizable) | ||||||||
| Mixing speed | 36r/min(customizable) | ||||||||
| Mixing power(Kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
After Sales Service
The above machine which we supply to you, we can give you one year after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CNF.
