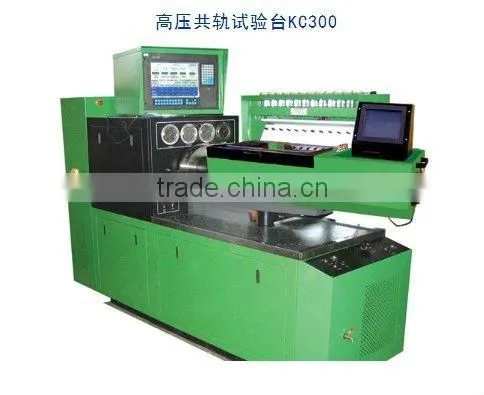

HIGH PRESSURE COMMON RAIL TEST BENCH

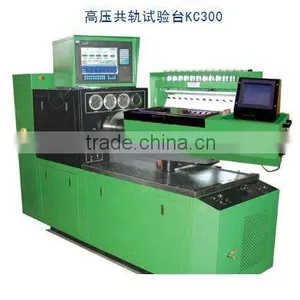

HIGH PRESSURE COMMON RAIL TEST BENCH thumbnail-1
HIGH PRESSURE COMMON RAIL TEST BENCH photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
SVP
Model Number:
300
Contact Supplier Request Quote Chat Now
Sino Vehicle Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Guangzhou/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name SVP
Model Number 300
Power Electronic
Usage Auto Testing Machine

Specifications

(1)Test bench
(2)Cast iron operation platform
(3)BOSCH rail pipe and pump
(4)Good quality and competitive price

300common rail test bench test common rail system such as BOSCH, DELPHI, DENSO those used often pumps model.

Functions:

1.testing common rail system such as BOSCH, DELPHI, DENSO those used often pumps model.

2. it can finish most of the testing and maintenance for common rial system, with good reliability and good system stability.

3.testing the oil supply quantity and oil supply pressure of common rail pump

4.testing the oil supply quantity and opening pressure of common rail injector

5.testing the uniformity of the common rail injector

6.testing the min and max oil supplu quantity of the common rail injector

7.testing the return oil quantity of injector, pressure-control

8.preset different kinds of parameter, start, idel, medium,full gas and so on.

ftware control realtime, windows operation system,display with LCD

10. it can test 6 pcs of common rail injectors in one time



Characteristic Parameters:

1. Volume of oil tank 60L

2. Temperature stabilization40±20C:

3. Test oil filtering unit 5μ

4. D.C.Supply 12v/24v

5. Feed pressure low 0~0.4Mpa.high 0~4Mpa;

6. Air pressure 0~0.3Mpa

7. 3-phase power supply 380V/50Hz or on request;

8. Flywheel inertia’s moment 0.8 Kg.M2

9.Center height 125 mm

10.Output power 15KW or on request

11. Overall dimensions(mm)2300×1100×1880

12.Net weight (KG)1300.

13 .rail pressure test 0-1600 Bar.

14.rotation speed adjustment range 0-3500 RPM.
