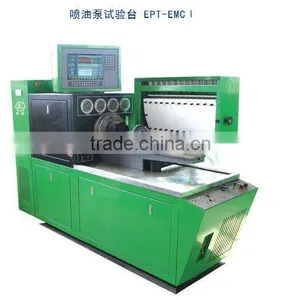

Help CenterDiesel Pump Test Machine EPT-EMC I
Related Products
Specifications
(1)Test bench EPT-EMC I(2) Small fall of rotation speed and large output torque
(3)High measurement precision
(4)Good qualit

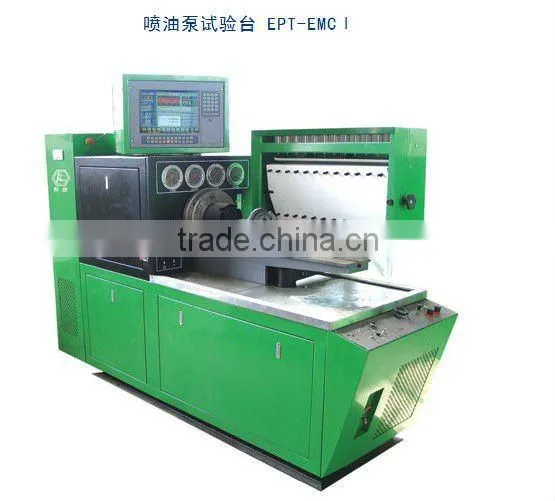

Specifications of Diesel Pump Test machine
>>>FUNCTIONS
1 Measurement of each cylinder’s delivery at various rotation speeds;
2 Checking of each cylinder’s injection time with static state;
3 Checking of the mechanical speed governors;
4 Checking of the electromagnetic valve of distributor pumps;
5 Checking performance of the pneumatic governors;
6 Checking of the pressure compensators(LDA);
7 Measurement of the reflux delivery of distributor pumps;
8 Measurement of the internal pressure of the distributor pumps body;
9 Checking of the pneumatic speed governors` vacuum performance;
10 Measurement of rack travel;
11 Measurement of advance angle;
12 Checking of the sealing of fuel injection pump body.
>>>CHARACTERISTICS
1 Changing frequency changing rotation speed;
2 Small fall of rotation speed and large output torque;
3 High measurement precision;
4 The functions of overvoltage, overload and short circuit protection;
5 Ten kinds of rotation speeds presetting;
6 Constant temperature controlled;
7 Ultra low noise;
8 Operating position: arbitrary side of the two work sides of the test stand;
9 Advance angle, rotation speed, count temperature and air pres-sure are displayed on15"CRT or LCD;
10 Built-in air resource;
11 Data can be searched and printed.
>>>TECHNICAL PARAMETERS
