Pipe End Expanding Machine in SSAW Pipe Mill

Pipe End Expanding Machine in SSAW Pipe Mill thumbnail-1

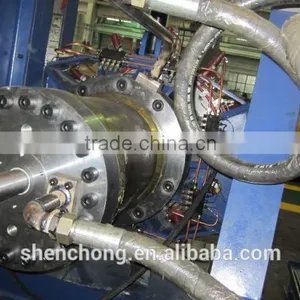

Pipe End Expanding Machine in SSAW Pipe Mill thumbnail-2

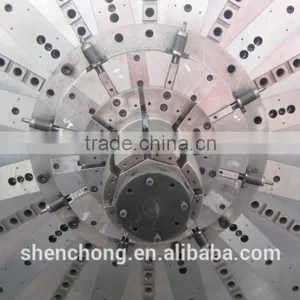

Pipe End Expanding Machine in SSAW Pipe Mill thumbnail-3
Pipe End Expanding Machine in SSAW Pipe Mill thumbnail-4
Pipe End Expanding Machine in SSAW Pipe Mill photo-1
Pipe End Expanding Machine in SSAW Pipe Mill photo-2

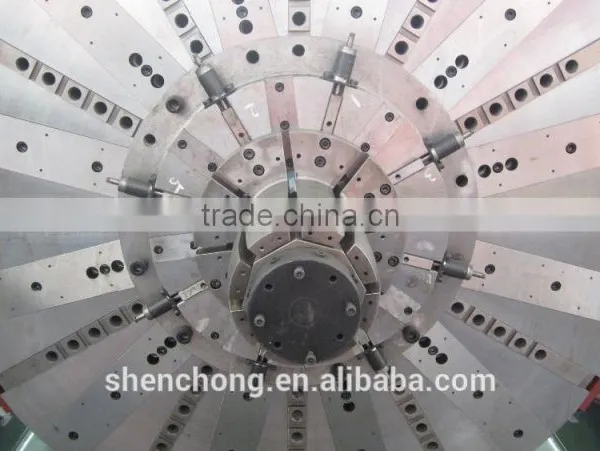

Pipe End Expanding Machine in SSAW Pipe Mill photo-3

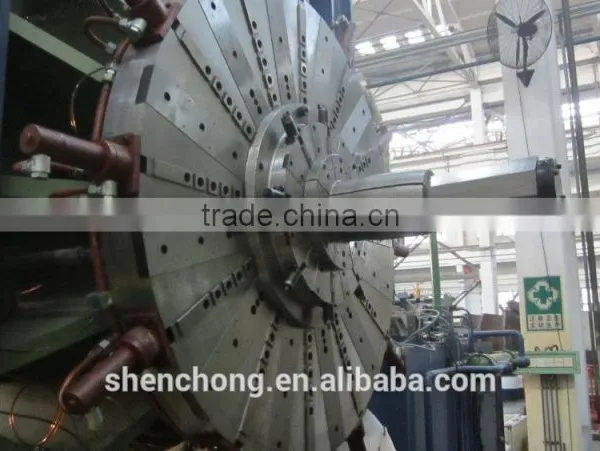

Pipe End Expanding Machine in SSAW Pipe Mill photo-4
US$ 180,000 - 180,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SHENCHONG
Model Number:
KJ-14-914(965)-12500
Contact Supplier Request Quote Chat Now
Wuxi Shenchong Forging Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name SHENCHONG
Model Number KJ-14-914(965)-12500
Condition New
After-sales Service Provided Engineers available to service machinery overseas

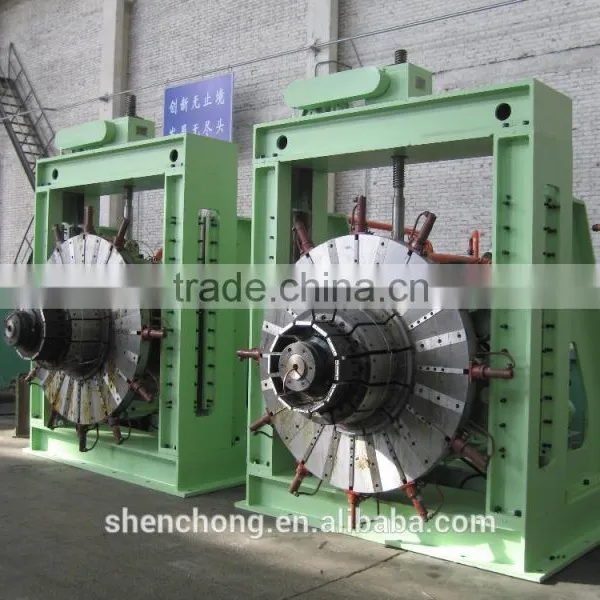

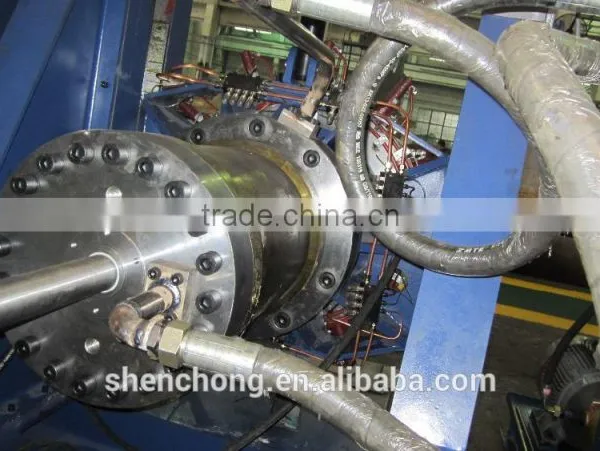

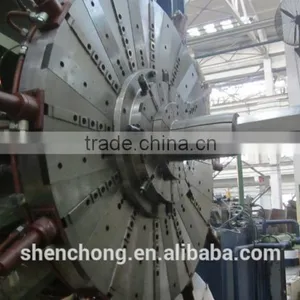

Pipe End Expanding Machine in SSAW pipe mill

The machine is used to expander the pipe end of SSAW pipe to improve the diameter accuracy ovality of pipe end as well as the mechanical property of pipe end material ,which is the necessary equipment for oil and gas SSAW pipe mill.

                   Model

Parameter

KJ-14/914(965)×12500

KJ-20/1422×12500

KJ-25.4/1422×12500

Expanded steel pipe

spiral welding pipe

spiral welding pipe

spiral welding pipe

Expanding mode

mechanically expanding

mechanically expanding

mechanically expanding

Range of expanded steel pipe

Diameter (mm)

Φ323.9~Φ914

Φ508~Φ1422

Φ610~Φ1422

Wall thick (mm)

5~14

6~20

6~25.4

Max. material

X70

X70

X70

Expanding length

Flat and straight section (mm)

150

150

150

Transiting section (mm)

100

100

100

Expanding ratio

 ≤1.5%D

≤1.5%D

≤1.5%D

Production efficiency

less than Φ508, 2min /pcs

less thanΦ711, 3 min /1 pcs

less thanΦ813, 3min / pcs

less than Φ508, 3min /pcs

less thanΦ711, 4-5 min / pcs

less thanΦ711, 4-5 min / pcs

Requirements to pipe body

Conform with the requirements of API spec5L std ,(the 42th edition ) to the deviation of pipe body ,and the inner welding seam within 250mm from ends of the pipe has been grinded and the surplus height is no more than 0.5mm.

Pipe end after expanding

Ovality (mm)

0.5%D(on basis of over0.3%of expanding ratio )

0.5%D(on basis of over0.3%of expanding ratio)

0.5%D(on basis of over0.3%of expanding ratio)

Diameter (mm)

D+1.6

-0.5





D+1.6

-0.5







D+1.6

-0.5





Weight

(KGS)

42000

55000

800000

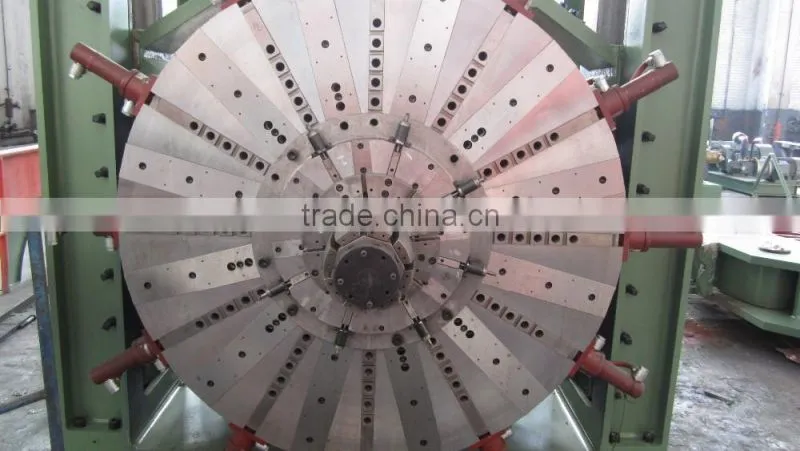

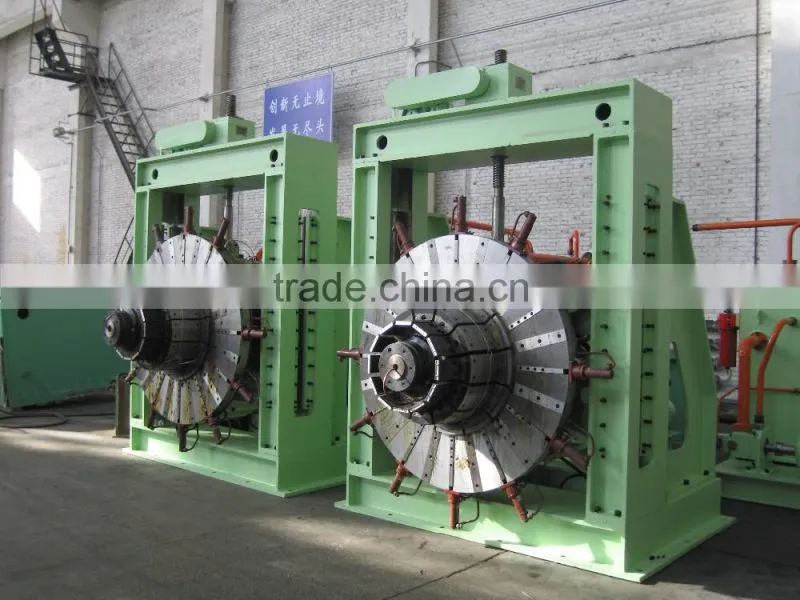

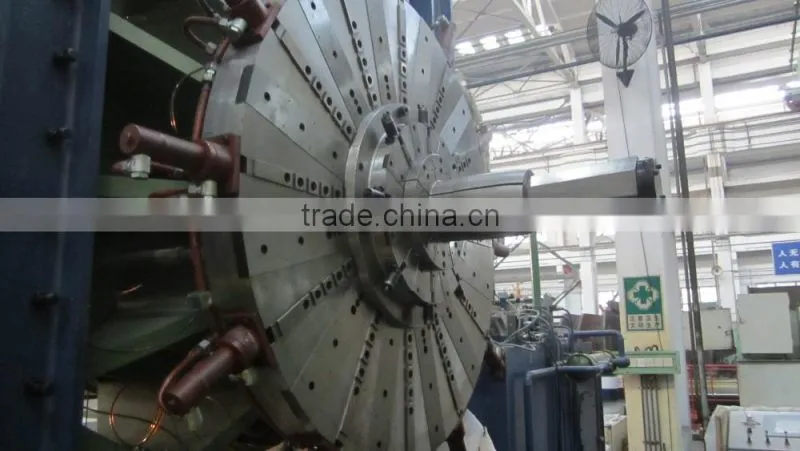

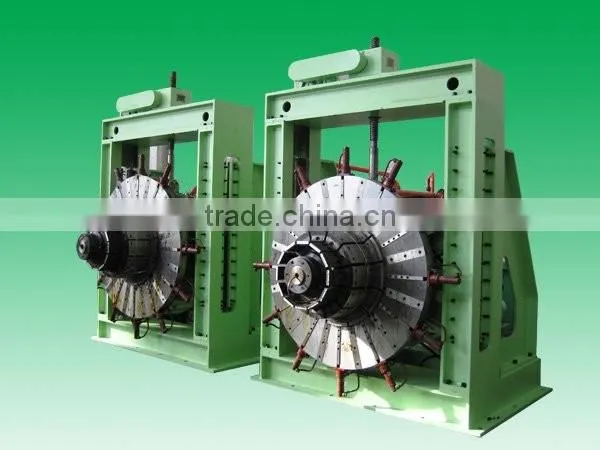

 Pipe End Expanding Machine in SSAW pipe millPipe End Expanding Machine in SSAW pipe millPipe End Expanding Machine in SSAW pipe millPipe End Expanding Machine in SSAW pipe mill
