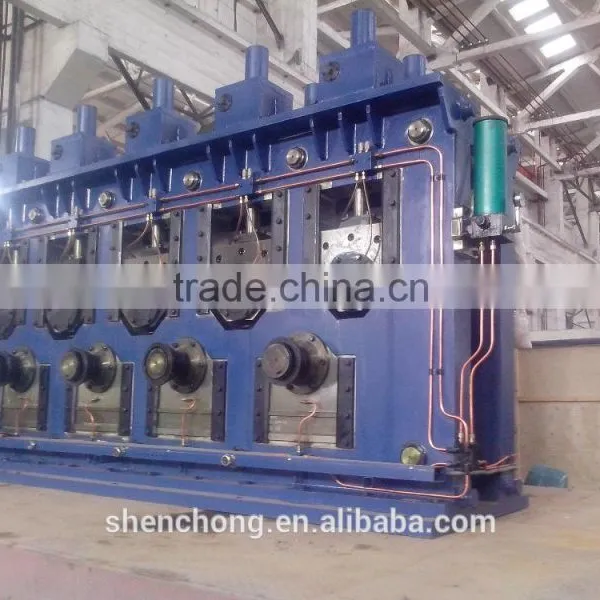

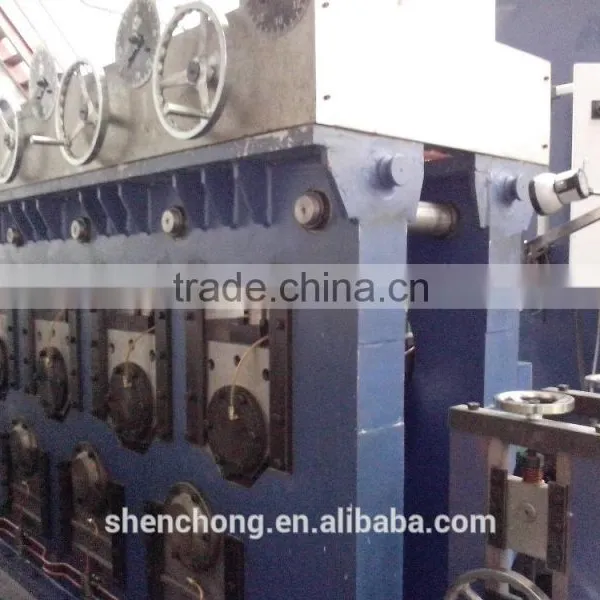

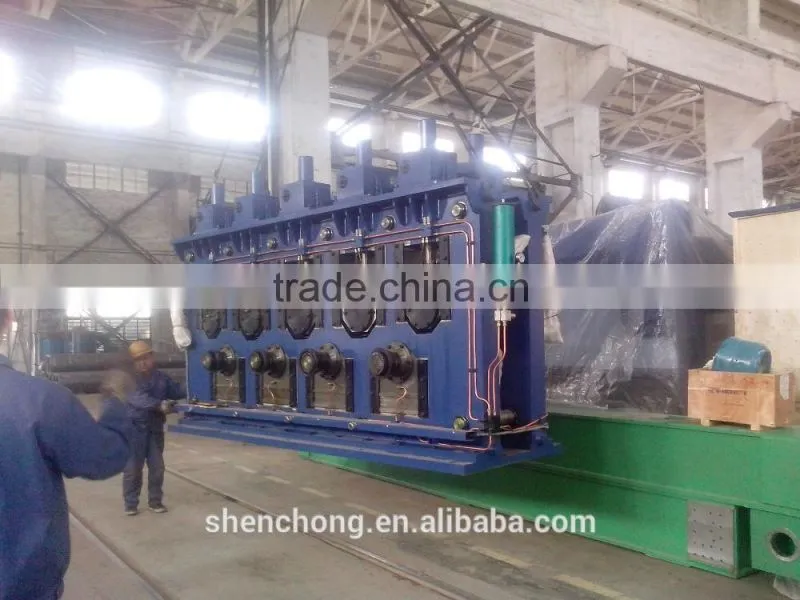

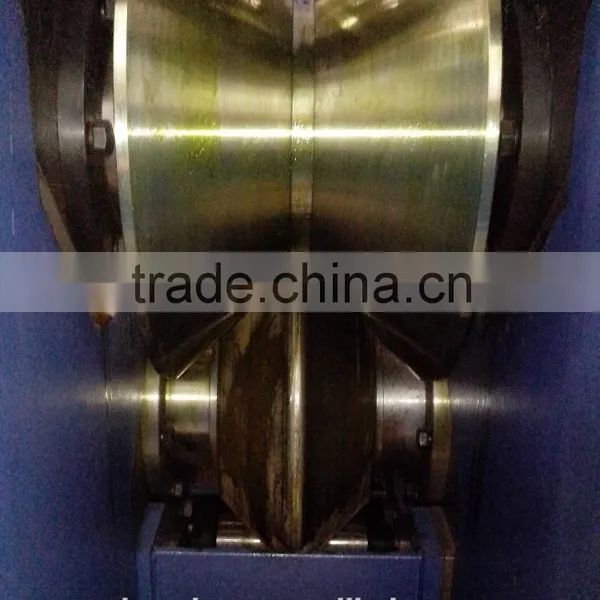

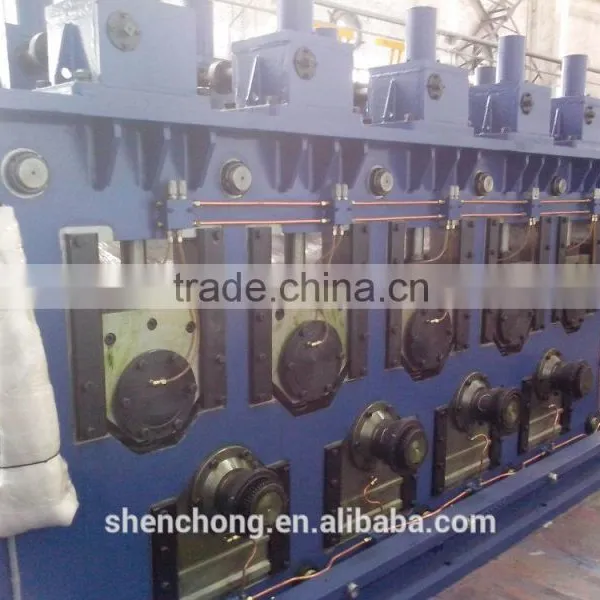

W50 Multi-roller Straightening Level Machine for Angle Steel
The machine is the roller type cold straightening level machine, which is specially used to straighten the angle steel when its straightness can not reach the requirement. The angle steel can be straightened one time at passing the machine. If the accuracy of angle steel can not reach the requirement after one time straightening, the angle steel can be straightened at most two times. Straightness accuracy: 1/1000L. Material of angle steel: 16Mn
Main specifications
|
Model Parameter Name |
W50-10 |
W50-16 |
W50-20 |
Range of straightened angle steel (mm) |
∠100×100×10 - ∠40×40×4 |
∠160×160×16 - ∠70×70×7 |
∠200×200×20- ∠80×80×8 |
Total straightening force (KN) |
1400 |
2800 |
5590 |
Roller quantity (number) |
9 |
9 |
9 |
Roller diameter (mm) |
340 |
420 |
530 |
Structural type |
cantilever type |
gantry type |
gantry type |
Driving type |
driving respectively |
driving respectively |
driving respectively |
Total power (KW) |
16 |
44 |
74 |
Straightening speed (m/min) |
15 |
20 |
15 |
Straightening accuracy |
1/1000L |
1/1000L |
1/1000L |
Press method |
manual |
manual |
manual |
Overall dimension (L×W×H) (mm ) |
2240×1818×2060 |
3440×2158×1750 |
3800×2460×2800 |
Weight (kg) |
7500 |
1500 |
32000 |
