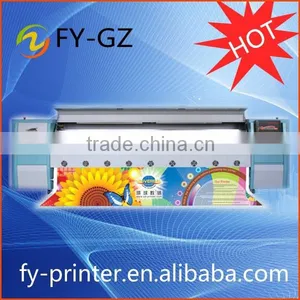

Help CenterPheaton UD 3208E Large Inkjet Printer With 8pcs Spt 510 35PL Head
Related Products
-
Six Color Pheaton UD 3206Q Large Format Printer With Spt 510 35pl HeadUS$ 5,500 - 13,000MOQ: 1 Set -
Wide Format Printer UD-3208P With 8pcs Spt 510/35pl HeadsUS$ 5,500 - 13,000MOQ: 1 Set
-
Pheaton UD-3208E Solvent Printer With 8pcs Spt 510/35PL HeadUS$ 8,000 - 17,000MOQ: 1 Set
-
Pheaton UD 3208Q Solvent Spt510 Head PrinterUS$ 5,500 - 13,000MOQ: 1 Set
-
1440dpi Phaeton UD-3286E Indoor Outdoor Banner PrinterUS$ 8,000 - 17,000MOQ: 1 Set
Our service
1,Big Discount!Best quality and after-service.
2,Welcome to jion our working team ,you will find that we are the same channel !!
We will provide you
1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service
1, Equipped with 8 SPT 510-35PL print heads.
2,heavy duty ,strong machine body
3, AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output
Pheaton UD 3208E large inkjet printer with 8pcs spt 510 35PL head together with feeding and take up system
Technical Data Of Pheaton UD 3208E large inkjet printer with 8pcs spt 510 35PL head
MODEL |
UD-3208E |
|
Printhead SPT510/35PL |
SPT510-35PL |
|
Number of printhead |
8 Heads |
|
Maximum print width |
3,200mm |
|
Print Speed (m2/h) |
Print mode |
Standard output(m2/h) |
D |
2 PASS 76 |
|
S |
3 PASS 51 |
|
Q |
4 PASS 34 |
|
HQ |
6 PASS 26 |
|
C |
- |
|
Ink |
Type: |
Solvent Ink / ECO Solvent Ink |
Color : |
Double 4 Color (C,M,Y,K) |
|
Capacity: |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System |
Low Ink Dectector, Auto or Manual Ink Supply |
|
Media Width |
Maximum 3,300mm |
|
Media Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
Auto Cleaning System |
Individual Positive Pressure Cleaning |
Pre-heating & Drying System |
Equipped |
Clamp |
Equipped |
Print Interface |
USB 2.0 |
Printhead Height |
2 to 6 mm from Media |
RIP Software |
Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
Input Power |
AC 220V, 50Hz/60Hz |
Machine Dimension / N.W |
L4, 786 x W930 x H1,350mm / 724KG |
Package Dimension / G.W |
L4, 980 x W1,140 x H1,640mm / 1064KG |
Pheaton UD 3208E large inkjet printer with 8pcs spt 510 35PL head in my warehouse
Export much container Pheaton UD 3208E large inkjet printer with 8pcs spt 510 35PL head to oversea
Welcome to visit our factory you will learn more
Original sk4 ,Galaxy dx5 ,UV ink
Pheaton UD 3208E large inkjet printer with 8pcs spt 510/35PL head
