Specifications
PVC door and window prifile of plastic machinery1.high qua;ity ,low price
2.easy operation.stable perform
3.manufacturer

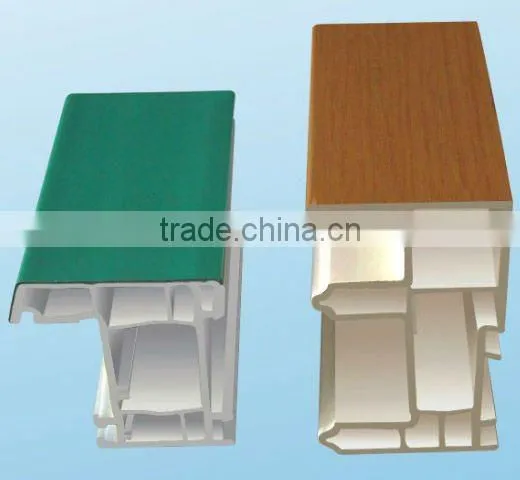

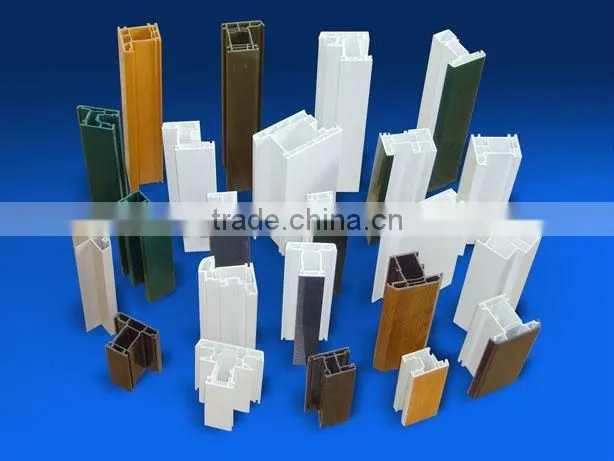

plastic machinery for PVC door and window profile
Specifications
plastic machinery
FSJSZ Series PVC profile extrusion line is mainly used in PVC door & Window and wall ceiling panel .

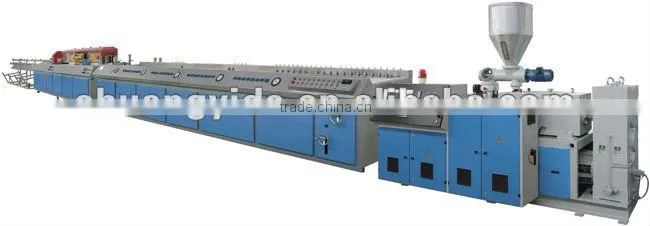

PVC Profile Extrusion Line
FSJSZ Series PVC profile extrusion line is mainly used in PVC door & Window and wall ceiling panel .
The whole extrusion line consists : FSJSZ Twin parallel ( conical) screws extruder die, vacuum calibrating table, Haul off unit, Cutting unit and stacker etc.
(1)Precise designed screw thread lines ensure material with multi profile in good flow melting condition and the PVC profile quality in smoothly ;
(2) Vacuum Calibrating table especial designed enlarged Centrifugal pump
cooling system and ensure the PVC profile in good smooth condition .
(3)The haul off unit adopted the unique lift technique by Friend Company. it work stable and reliable.
(4) Cutting the profile length by automatic counting for 4m.6m,8m 12m. etc.
with PVC powder and scraps suction collect device. ,
(5) Multi-holes profile and section profile available.
(6) PLC/ PCC electrical control system for the customer selection.
|
Model
|
Profile width Range (mm) |
Extruder Model
|
Haul of force ( KN) |
Max.Output (kg/h) |
Total installed Power( Kw) |
OverallDimension LXWXH |
FPVC-180 |
180 |
FSJSZ-51/105 |
15 |
120 |
58 |
12X2.0X2.0 |
FPVC-240 |
240 |
FSJSZ-60/125 |
30 |
180 |
82 |
16X2.0X2.0 |
FPVC-400 |
400 |
FSJSZ-65/132 |
30 |
250 |
110 |
20X2.6X2.5 |
FPVC-600 |
600 |
FSJSZ-80/156 |
40 |
420 |
165 |
25X2.6X2.5 |
FPVC-800 |
800 |
FSJSZ-80/156 |
50 |
420 |
200 |
28X2.6X2.5 |
Equipment component
Equipment |
Count |
Powder loader |
One set |
Conical twin screw extruder |
One set |
Mould |
It depends |
vacuum calibrating table |
One set |
Haul-off |
One set |
Cutter |
One set |
Stacker |
One set |
Auto electric control cabinet |
One set |
Mixer |
one set |
