Specifications
Wood Plastic Composite Machine1.max capacity:150-220kg/hr.
2.PP/PE/PVC-wood Profile.
3.Max.width 400mm.
Wood Plastic Composite WPC Machine Line - SJMS 65/132
(decking,profile,floor by waste plastic and wood)
CONCENTRATE IN WPC PROJECT
Wood-Plastic Composite(WPC) is made by waste wood materials(sawdust, shells of almonds, cereal, straw, sugarcane, etc) and recycled plastic(PP, PE, PVC).
WPC is paintiable, shaveable, nailable, sawable, drillable. With characteristic of wood and plastic.
WPC are widely used in floor, siding, garden furniture, bathroom, pavilion, etc.
The wasted WPC could be put into production again.
Main Technical Parameters
Item |
SJSZ 65/132 |
SJSZ 80/156 |
SJSZ 92/188 |
Screw Diameters(mm) |
65mm/132mm |
80 |
92 |
L/D Ratio |
22:1/25:1 |
22:1/25:1 |
22:1/25:1 |
Output(Kg/h) |
120-240 kg/h |
250-350 |
400-500 |
Main Driving Power(kw) |
37 |
55 |
110 |
Heating Powder(Kw) |
4 zones, 20Kw |
5 zones, 38Kw |
6 zones, 54Kw |
Complete process:
Milling → Mixing → Extruding → Mold → Product → Calibrating → Hauling off→ Cutting off→ Embossing or polishing→ Final product
Item |
Name |
Model |
Qty |
Details |
1 |
Twin screw extruder |
SJSZ65-132 |
1Unit |
With automatic spring loader |
2 |
Vacuum calibrating platform |
SZD-6000 |
1Unit |
|
3 |
Caterpillar haul off |
SLQ-240 |
1Unit |
|
4 |
Cutting unit |
SQG-240 |
1Unit |
|
5 |
Tilt stacker |
SFZ-6000 |
1Unit |
|
6 |
Profile Mould |
|
1Unit |
|

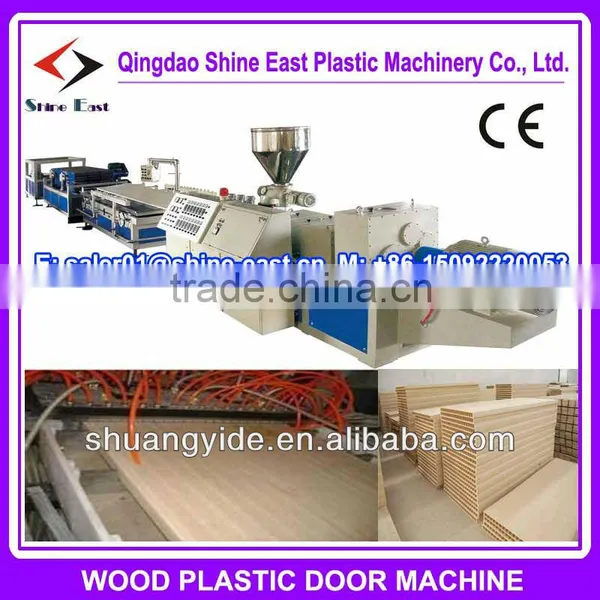

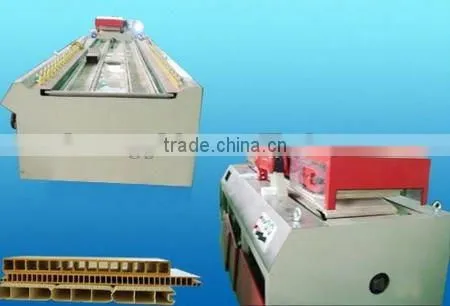

Machinery component

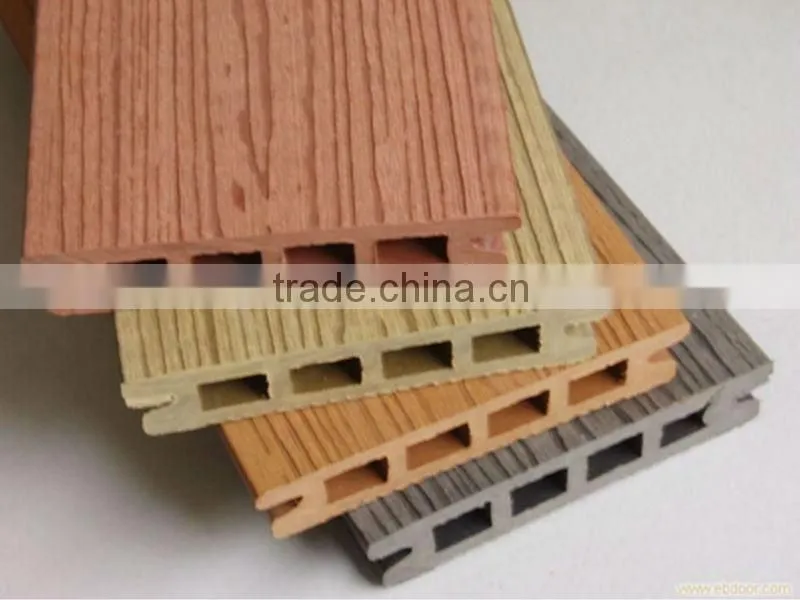

Wood plastic machine sample
