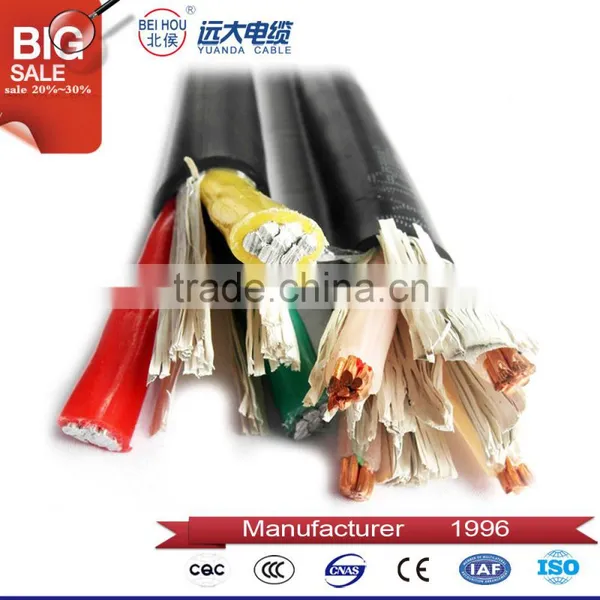

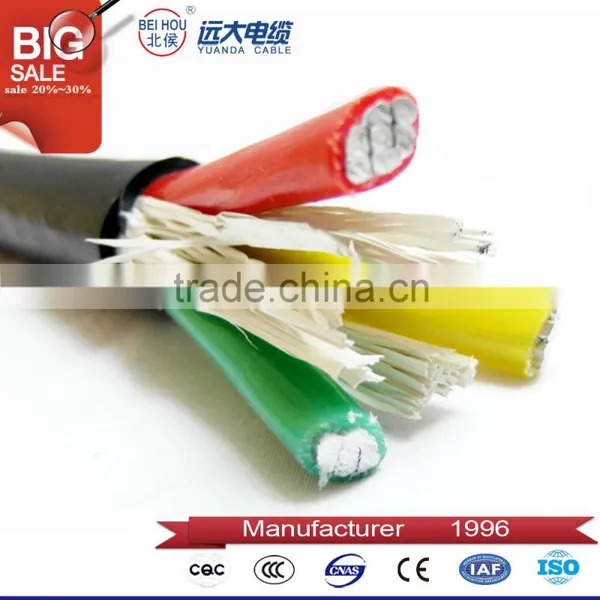

Help CenterXLPE Insulated Power Cable With PVC Sheath Steel Tape Armoured With Rated Voltage From 0.6 / 1KV to 8.7 / 15KV
Related Products
-
XLPE Insulated PVC Sheathed With Rated Voltage From 0.6 / 1KV to 8.7 / 15KVUS$ 1 - 10MOQ: 1000 Meters -
XLPE Insulation Material and PVC Jacket Armoured CableUS$ 1 - 10MOQ: 1000 Meters
-
5 Cores 400mm Xlpe Insulations Material 0.6 /1.0 KV Type and PVC Sheathed Power CablesUS$ 1 - 10MOQ: 1000 Meters
-
XLPE Insulated Steel Tape Armoured PE Sheathed Power CableUS$ 1 - 10MOQ: 1000 Meters
-
0.6/1KV XLPE Insulated Power Cable for UndergroundUS$ 1 - 15MOQ: 500 Meters
Sketches of product construction
1,Conductor 4,Insulation screen 7,Separator(Inner Cover)
2,Conductor Screen 5,Metallic Screen 8,Armour
3,XLPE Insulation 6,Filler 9,Outer Sheath
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
Operating temperature
Max. Permissible continuous operating temperature of Conductors shall not exceed 90℃
Conductor Short circuit temperature
Not exceeding 250℃ . (Max. Duration 5 seconds)
Bending radius:
Bending radius of single core cable:20D
Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable (mm)
Installation temperature:
The lowest temperature of installation is 0 ℃.
Laying conditions and basic parameters for calculating current ratings:
Method of laying Ambient temperature
In air 40℃
Direct burial 25℃
Soil thermal resistivity 1.0℃· m/W
Layout of single core cables: In parallel
(Spacing side by side: 1D D=overall diameter)
Scope of cables Table
Type |
No . of |
Rated voltage(KV) |
||||
0.6/1 |
1.8/3 |
3.6/6 |
6/6 6/10 |
8.7/10 |
||
Nominal area of conductor (mm2) | ||||||
YJV |
1,2,3, |
1.5-630 |
10-400 |
25-400 |
25-400 |
25-400 |
XLPE Insulated Power Cable
Type, description and main applications Table 2
Type |
Description |
Main application |
YJV |
Cu or AL conductor |
For laying indoor and outdoor, |
YJV22 YJLV22 |
Cu or AL conductor |
For laying underground, |
YJV32 YJLV32 |
Cu or AL conductor |
For laying under ground, |
Packaging&Shipping:
Packaging&Delivery:
In two weeks,the goods will be prepared.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Company Profile:
Certificate:
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
We products are 2% cheaper than the competitor
Send the inquire and get the quotation,Save time,Save money
